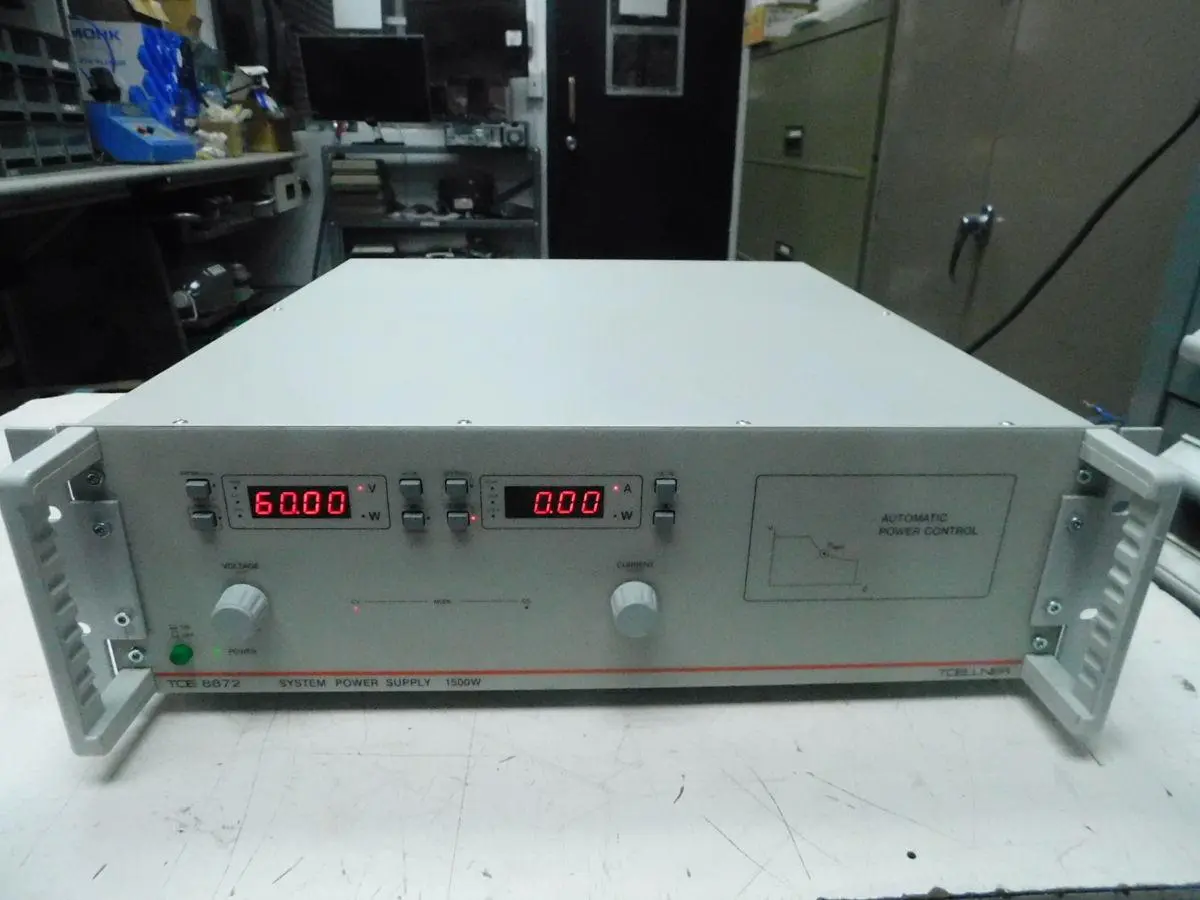

USED TOELLNER 8872-60

THE TOELLNER 8872-60 IS A 1500W DC POWER SUPPLY FEATURING SINGLE-PHASE 240 VAC INPUT WITHIN A 47-63 HZ FREQUENCY RANGE. IT PROVIDES A CONTINUOUSLY ADJUSTABLE OUTPUT VOLTAGE FROM 0 TO 60V AND AN ADJUSTABLE OUTPUT CURRENT FROM 0 TO 65A, OPERATING IN BOTH CONSTANT VOLTAGE (CV) AND CONSTANT CURRENT (CC) MODES. THE UNIT INCORPORATES REMOTE SENSING CAPABILITY TO COMPENSATE FOR VOLTAGE DROPS IN LOAD LINES. PROTECTION MECHANISMS INCLUDE OVER VOLTAGE PROTECTION (OVP), OVER CURRENT PROTECTION (OCP), AND OVER TEMPERATURE PROTECTION (OTP. OUTPUT RIPPLE AND NOISE ARE SPECIFIED AS TYPICALLY LESS THAN 1 MV RMS FOR VOLTAGE AND LESS THAN 20 MA RMS FOR CURRENT. LOAD AND LINE REGULATION ARE RATED AT LESS THAN 0.01% + 3MV. THE POWER SUPPLY OFFERS ANALOG PROGRAMMING AND IS DESIGNED FOR 19-INCH RACK MOUNTING OR BENCHTOP USE.
