NEW ABB T7H 1000 1SDA063112R1

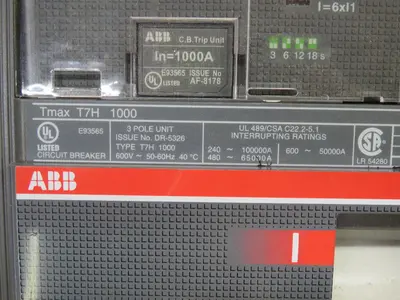

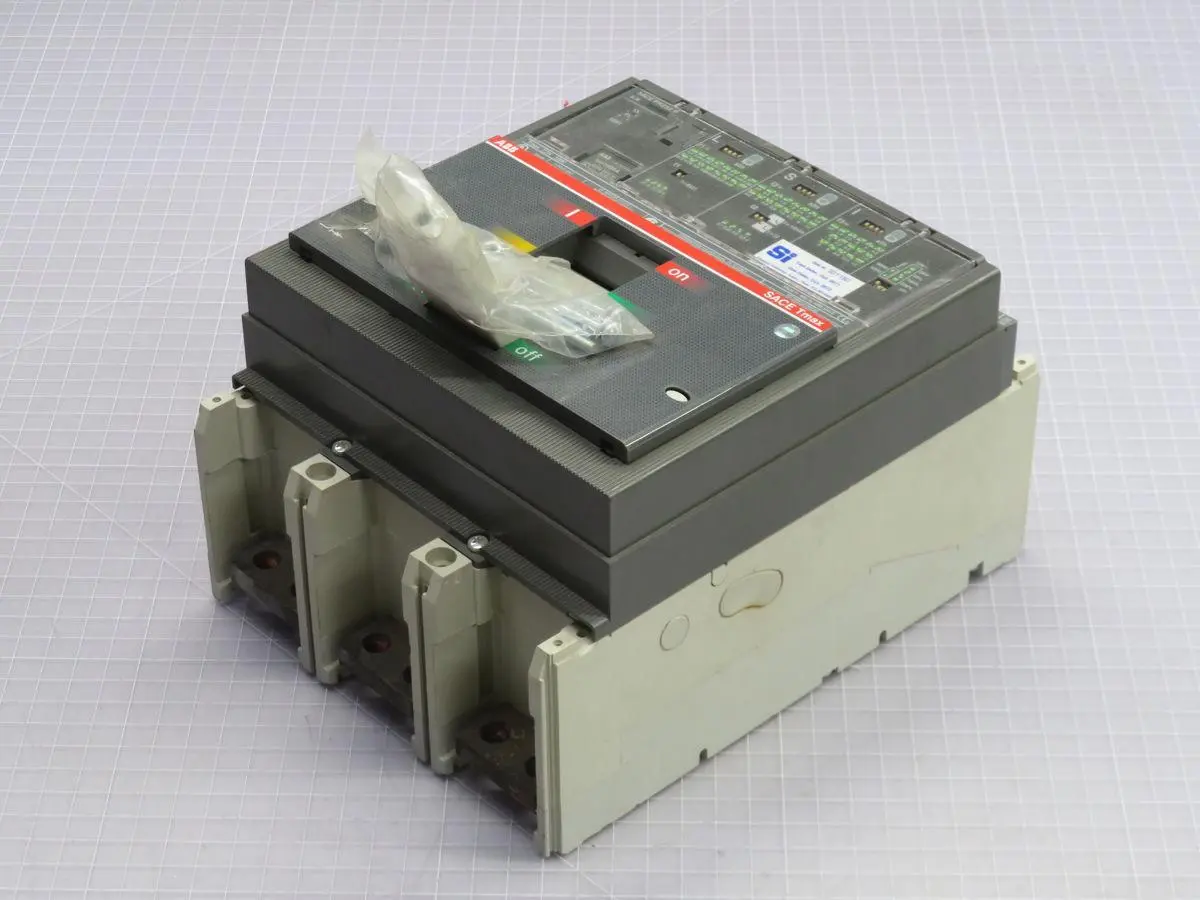

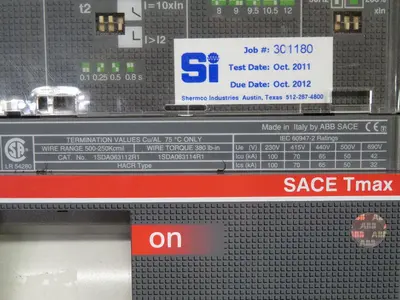

THE ABB TMAX T7H 1000, IDENTIFIED BY PART NUMBER 1SDA063112R1, IS A 3-POLE MOLDED CASE CIRCUIT BREAKER (MCCB) DESIGNED FOR HIGH BREAKING CAPACITY APPLICATIONS. IT FEATURES AN ELECTRONIC PR222M TRIP UNIT AND A RATED CURRENT (IN) OF 1000 A. THE BREAKER'S RATED ULTIMATE SHORT-CIRCUIT BREAKING CAPACITY (ICU) IS 85 KA AT 400 V AC, WITH A MAXIMUM RATED OPERATIONAL VOLTAGE (UE) OF 690 V AC. IT IS CONSTRUCTED FOR FIXED MOUNTING AND UTILIZES FRONT TERMINALS. THIS TMAX T7 SERIES UNIT IS COMPATIBLE WITH CONDUCTORS UP TO 4 X 500 MCM.
