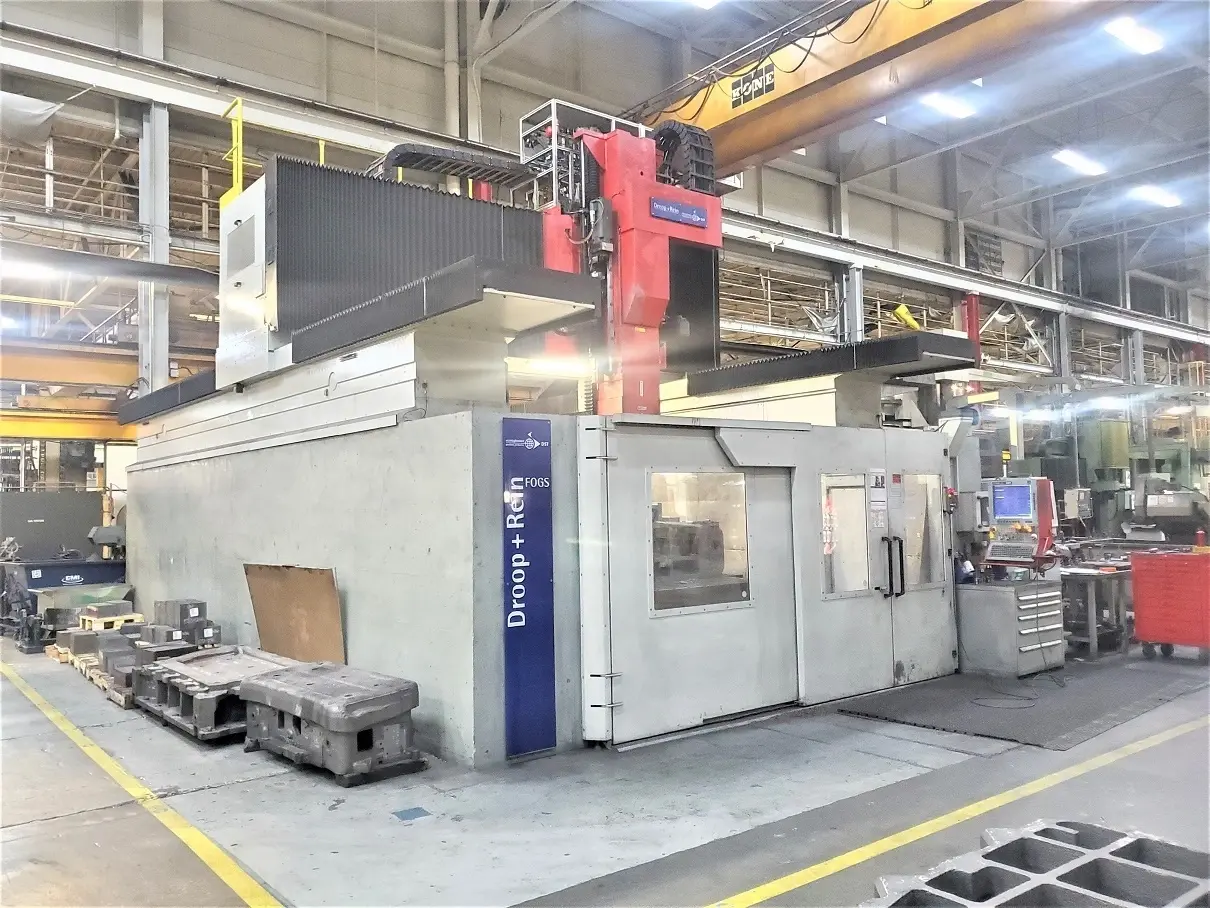

USED 2013 DROOP & REIN FOGS 3068C

The Droop & Rein FOGS 3068C is a 5-axis gantry style CNC Vertical Machining Center, with an approximate weight of 209,000 lbs. It features an X-axis travel of 267 inches, a Y-axis travel of 118 inches, and a Z-axis travel of 59 inches. The machine is equipped with a C-axis providing n x 360-degree rotation and a B-axis offering +/- 115-degree articulation. The clamping plate measures 118 inches by 236 inches. Horizontal clearance between columns is 161.02 inches (4,090 mm), with a vertical clearance of 94 inches. Feed rates for the X, Y, and Z axes are up to 1181.1 inches per minute (30 m/min), with rapid feed rates up to 1574.8 inches per minute (40 m/min). C-axis and B-axis feed and rapid rates are 4,320 degrees per minute. Power is supplied by a 26 HP milling spindle motor, with electrical requirements of 600V, 3-phase, 60Hz, 115 Amps. The system integrates a FIDIA C20 CNC control and a 30-tool automatic tool changer. Additional features include a fork-type head with hydraulic clamping for various motor milling spindles, a temperature sensor for length compensation, and a continuous swivel B-axis motor milling spindle.
