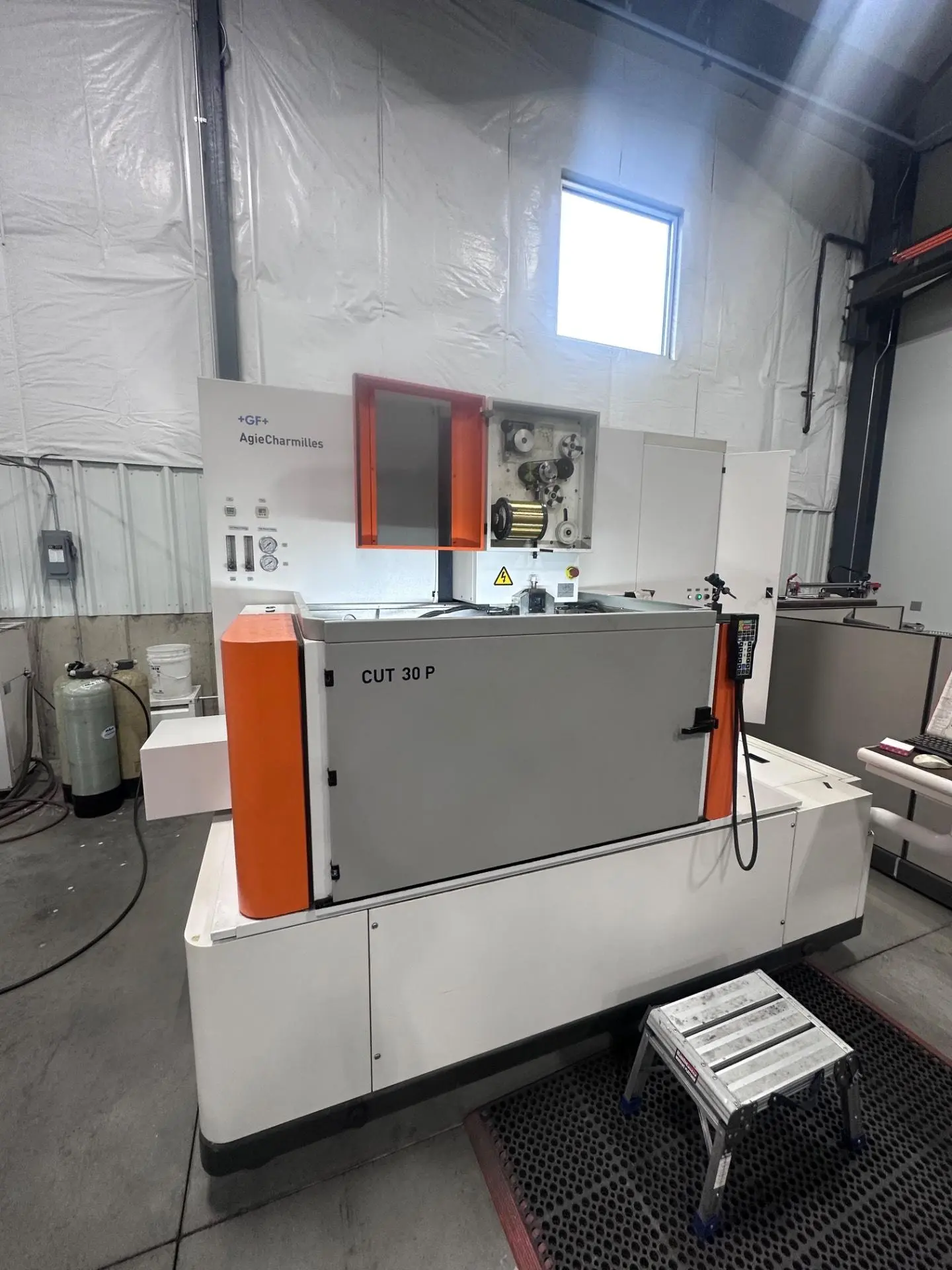

USED 2010 AGIE CHARMILLES CUT 30P EDM

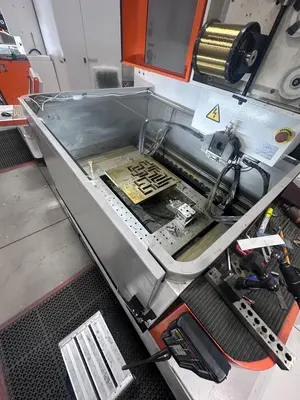

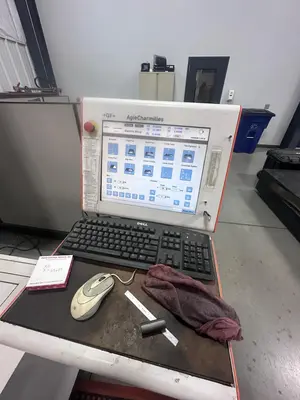

THE 2010 AGIECHARMILLES CUT 30P IS A HIGH-PRECISION WIRE-CUT ELECTRICAL DISCHARGE MACHINE DESIGNED FOR COMPLEX ENGINEERING TASKS. IT FEATURES A T-SHAPED BASE FRAME THAT SUPPORTS A MAXIMUM WORKPIECE SIZE OF 1030 X 800 X 350 MM AND A WEIGHT CAPACITY OF UP TO 1000 KG. THE MACHINE PROVIDES AXIS TRAVELS OF 600 MM IN X, 400 MM IN Y, AND 350 MM IN Z. IT IS EQUIPPED WITH A SUBMERGED CUTTING SYSTEM CAPABLE OF HANDLING WORKPIECES UP TO 350 MM IN HEIGHT. THE HIGH-PERFORMANCE GENERATOR INCLUDES A FINE SURFACE MODULE, ACHIEVING SURFACE ROUGHNESS AS LOW AS RA 0.25 ΜM. IT SUPPORTS WIRE DIAMETERS RANGING FROM 0.10 MM TO 0.30 MM AND INCLUDES AN AUTOMATIC WIRE THREADING SYSTEM. ACCURACY IS MAINTAINED THROUGH DIRECT POSITION MEASUREMENT USING LINEAR GLASS SCALES, WHICH ELIMINATE BACKLASH AND WEAR-RELATED ERRORS. THE CNC CONTROL SYSTEM FEATURES AN INTUITIVE GRAPHICAL USER INTERFACE FOR STREAMLINED JOB PREPARATION AND MONITORING. ADDITIONAL TECHNICAL CAPABILITIES INCLUDE INTEGRATED COLLISION PROTECTION ON THE X, Y, AND Z AXES AND A MAXIMUM TAPER ANGLE OF ± 25 DEGREES OVER A HEIGHT OF 57 MM. THE MACHINE IS OPTIMIZED FOR MATERIALS SUCH AS HARDENED STEEL, TITANIUM, AND ALUMINUM, MAKING IT SUITABLE FOR HIGH-PRECISION AEROSPACE, MEDICAL, AND AUTOMOTIVE MANUFACTURING APPLICATIONS.
