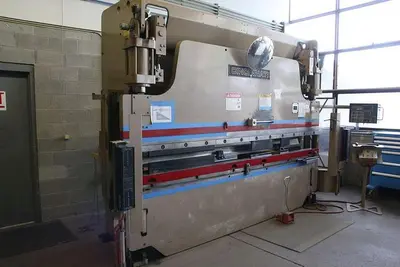

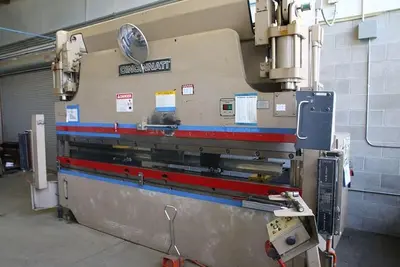

USED 1998 CINCINNATI CBII 90-350

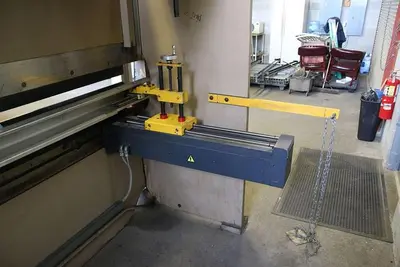

THE 1998 CINCINNATI CBII 90 IS A HYDRAULIC 2-AXIS CNC PRESS BRAKE WITH A 90-TON CAPACITY AND A 12-FOOT OVERALL LENGTH. THIS UPDATED VERSION OF THE CB SERIES FEATURES A CNC CINCINNATI CONTROL AND BACKGAUGE FOR ENHANCED PROCESSING SPEEDS. TECHNICAL SPECIFICATIONS INCLUDE A MAXIMUM TONNAGE OF 90 TONS, WITH 67 TONS AVAILABLE AT HIGH FORMING SPEED. THE MACHINE PROVIDES A LENGTH BETWEEN HOUSINGS OF 126.5 INCHES, AN 8-INCH STROKE LENGTH, AND A 7-INCH THROAT DEPTH. ITS OPEN HEIGHT IS 15 INCHES, WHILE THE CLOSED HEIGHT IS 7 INCHES. PERFORMANCE SPEEDS ARE RATED AT 260 FOR HIGH APPROACH, 10-80 FOR FORMING, AND 280 FOR RETURN. THE UNIT IS POWERED BY A 15-HORSEPOWER MOTOR AND HAS AN APPROXIMATE WEIGHT OF 18,300 LBS.
