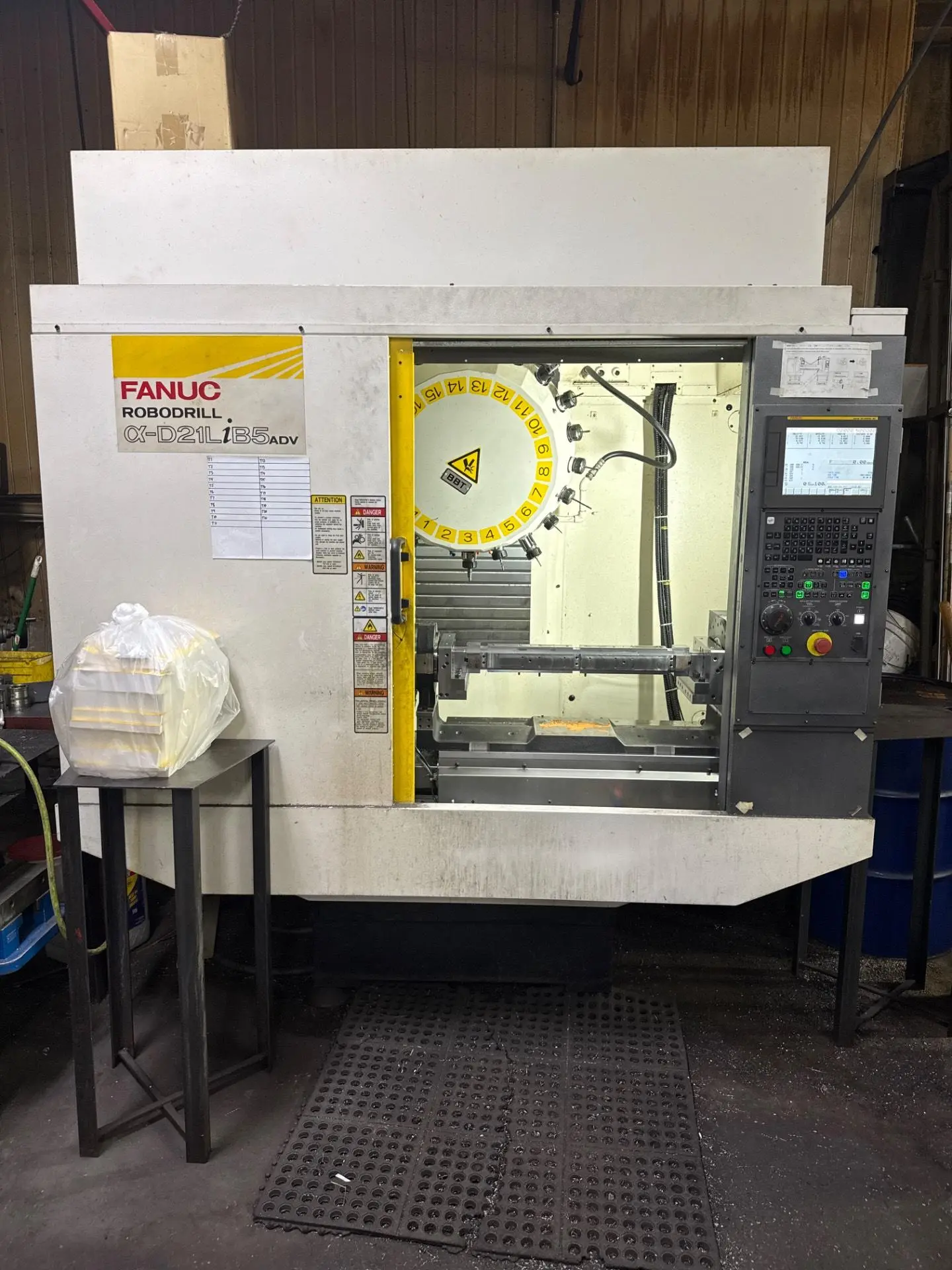

USED 2018 FANUC ROBODRILL Α-D21L B5 ADV

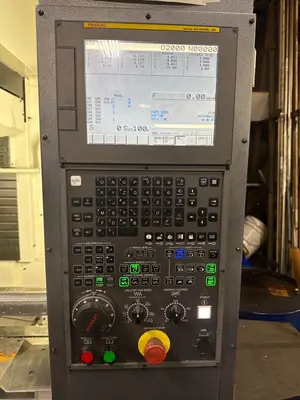

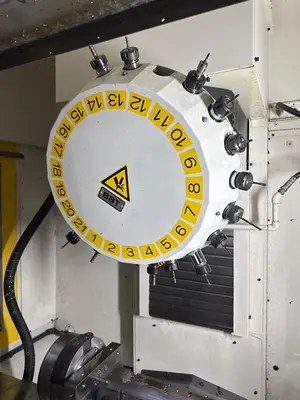

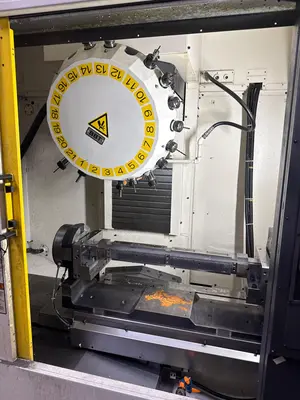

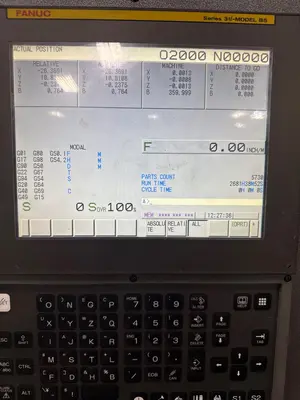

THE 2018 FANUC ROBODRILL Α-D21LIB5 ADV PLUS IS A HIGH-SPEED, HIGH-PRECISION VERTICAL MACHINING CENTER FEATURING A 30-TAPER SPINDLE AND A 21-TOOL STORAGE CAPACITY. IT IS EQUIPPED WITH A LARGE 850 MM X 410 MM TABLE AND SUPPORTS A MAXIMUM TABLE LOAD OF 400 KG. THE MACHINE PROVIDES EXTENSIVE AXIS TRAVEL WITH 700 MM IN THE X-AXIS, 400 MM IN THE Y-AXIS, AND 400 MM IN THE Z-AXIS. POWERED BY THE FANUC SERIES 31I-B5 PLUS CONTROL SYSTEM, IT OFFERS BIDIRECTIONAL POSITIONING ACCURACY OF LESS THAN 0.006 MM AND REPEATABILITY OF LESS THAN 0.004 MM. THE ADVANCED VERSION FEATURES AN ULTRA-FAST TOOL CHANGE TIME OF 0.7 SECONDS (TOOL-TO-TOOL) AND 1.3 SECONDS (CUT-TO-CUT), WITH A TURRET CAPABLE OF HANDLING TOOLS WEIGHING UP TO 4 KG. THE SPINDLE IS AVAILABLE IN STANDARD 10,000 RPM OR HIGH-SPEED 24,000 RPM CONFIGURATIONS, DELIVERING UP TO 26 KW OF POWER AND 80 NM OF TORQUE. RAPID TRAVERSE RATES REACH 54 M/MIN ACROSS ALL AXES WITH A MAXIMUM CUTTING FEED OF 30,000 MM/MIN. ADDITIONAL TECHNICAL FEATURES INCLUDE AN INTEGRATED IHMI INTERFACE FOR INTUITIVE OPERATION, THERMAL DISPLACEMENT COMPENSATION, AND A 70-BAR CENTER-THROUGH COOLANT SYSTEM FOR DEEP-HOLE DRILLING. THE UNIT'S RIGID CAST CROSS-TABLE DESIGN AND COMPACT FOOTPRINT MAKE IT SUITABLE FOR HIGH-VOLUME PRODUCTION IN AUTOMOTIVE, AEROSPACE, AND MEDICAL INDUSTRIES.
