USED 2019 BERG TT-66.5-2(25)-PHE

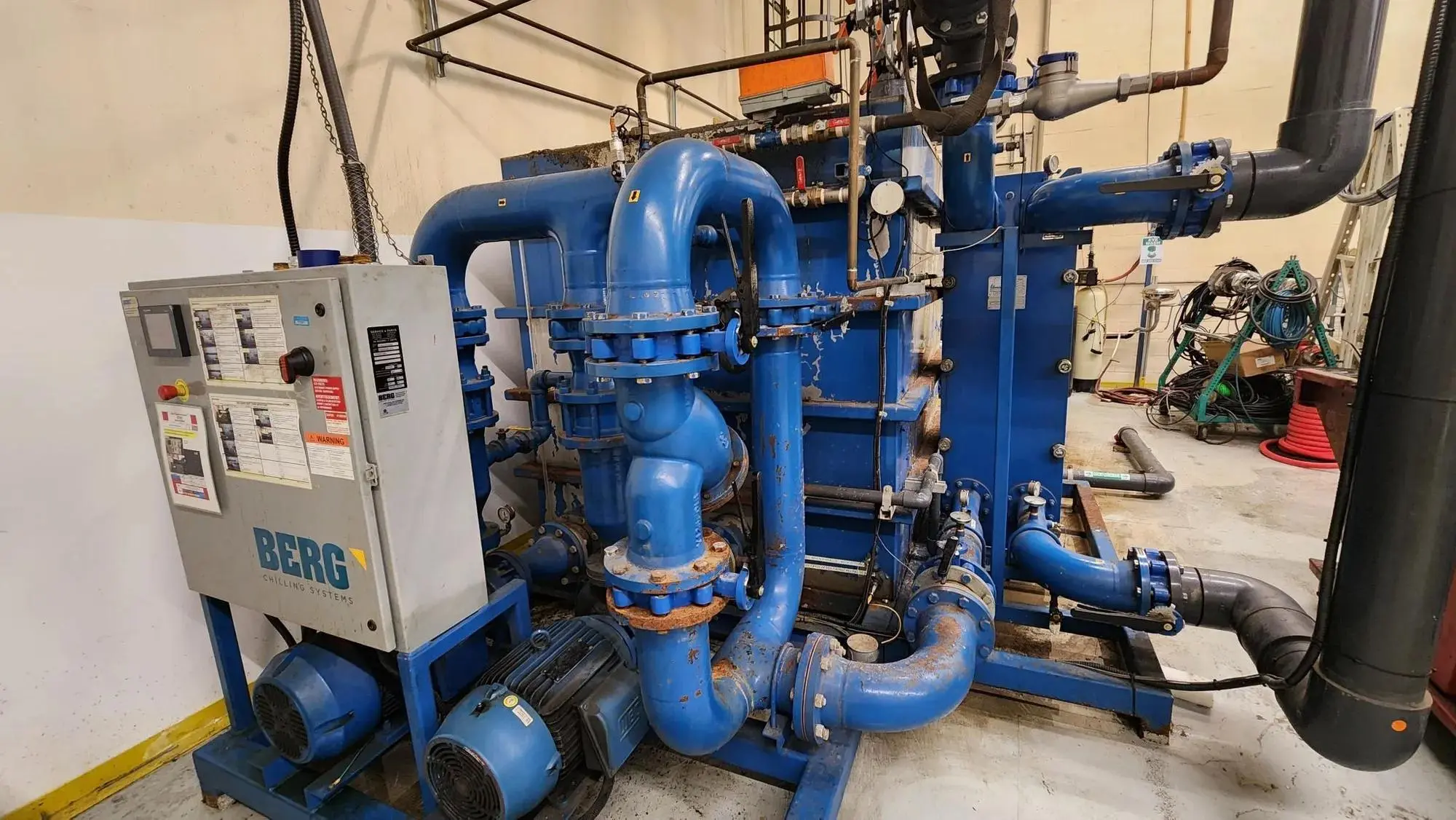

THE 2019 BERG TT-66.5-2(25)-PHE IS AN INDUSTRIAL COOLING SYSTEM FEATURING A PLATE HEAT EXCHANGER (PHE) DESIGN INTEGRATED WITH A PUMP TANK ASSEMBLY. MANUFACTURED BY BERG CHILLING SYSTEMS INC., THE INDOOR UNIT IS CONFIGURED FOR A COOLING TOWER CONDENSER WATER LOOP USING WATER AS THE COOLING MEDIUM. THE ELECTRICAL SYSTEM OPERATES ON A 575V, 60HZ, 3-PHASE POWER SUPPLY WITH A 44.9 A RATING, 44 A FULL LOAD AMPS, AND A 45 HP MOTOR. CONTROL CIRCUITRY UTILIZES 120VAC / 24VDC WITH A 5 KA SYMMETRICAL INTERRUPTING RATING. THE ASSOCIATED OUTDOOR UNIT IS A BALTIMORE AIRCOIL COMPANY (BAC) PT2-0812A-2M1-X INDUCED DRAFT EVAPORATIVE COOLING TOWER. THIS SINGLE-CELL INDUSTRIAL TOWER HAS AN APPROXIMATE WEIGHT OF 6,000 LBS. THE PLATE HEAT EXCHANGER TECHNOLOGY UTILIZES AN ALTERNATING FLUID FLOW PATTERN BETWEEN PLATES TO MAXIMIZE HEAT TRANSFER THROUGH INDUCED TURBULENT FLOW AND EXPANDED SURFACE AREA. THIS CONFIGURATION IS DESIGNED FOR HIGH-EFFICIENCY THERMAL EXCHANGE IN INDUSTRIAL APPLICATIONS REQUIRING A DEDICATED PUMP TANK AND EXTERNAL EVAPORATIVE COOLING.
