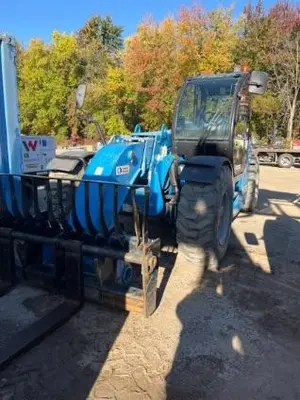

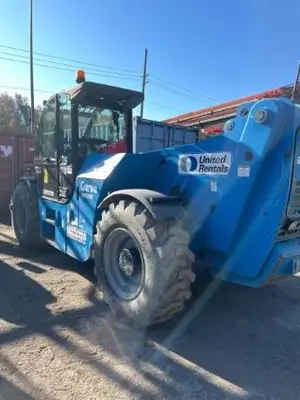

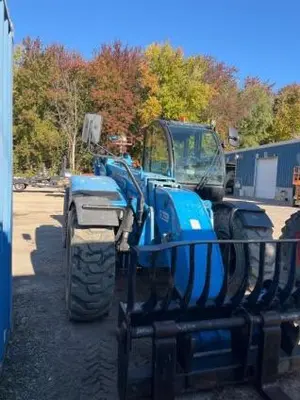

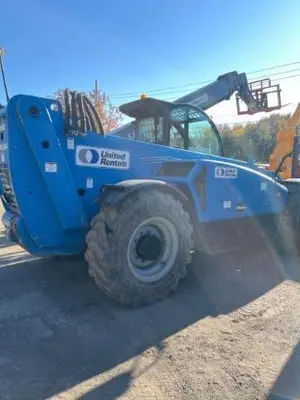

USED 2017 GENIE GTH-1544

The Genie GTH-1544 is a high-reach telescopic handler designed for heavy-duty lifting in construction and industrial applications. It features a maximum lift capacity of 15,000 lbs and a maximum lifting height of 44 feet. The machine provides a maximum forward reach of 27 feet 3 inches, with a lift capacity of 3,500 lbs at that distance. Powered by a turbocharged diesel engine, it utilizes a two-speed hydrostatic transmission for a maximum travel speed of 18 MPH. The drivetrain includes full-time four-wheel drive and three selectable steering modes: front-wheel, coordinated, and crab steer.
Physically, the GTH-1544 has a stowed length of 20 feet 4 inches (without forks), a width of 7 feet 11 inches, and a stowed height of 8 feet 7 inches. It features a wheelbase of 11 feet 6 inches and a ground clearance of 1 foot 3 inches. The operating weight is approximately 33,686 lbs. For stability on uneven terrain, the chassis includes a proportional frame-leveling system allowing for up to 7 degrees of adjustment on either side.
