USED 2000 DECKEL MAHO DMU80

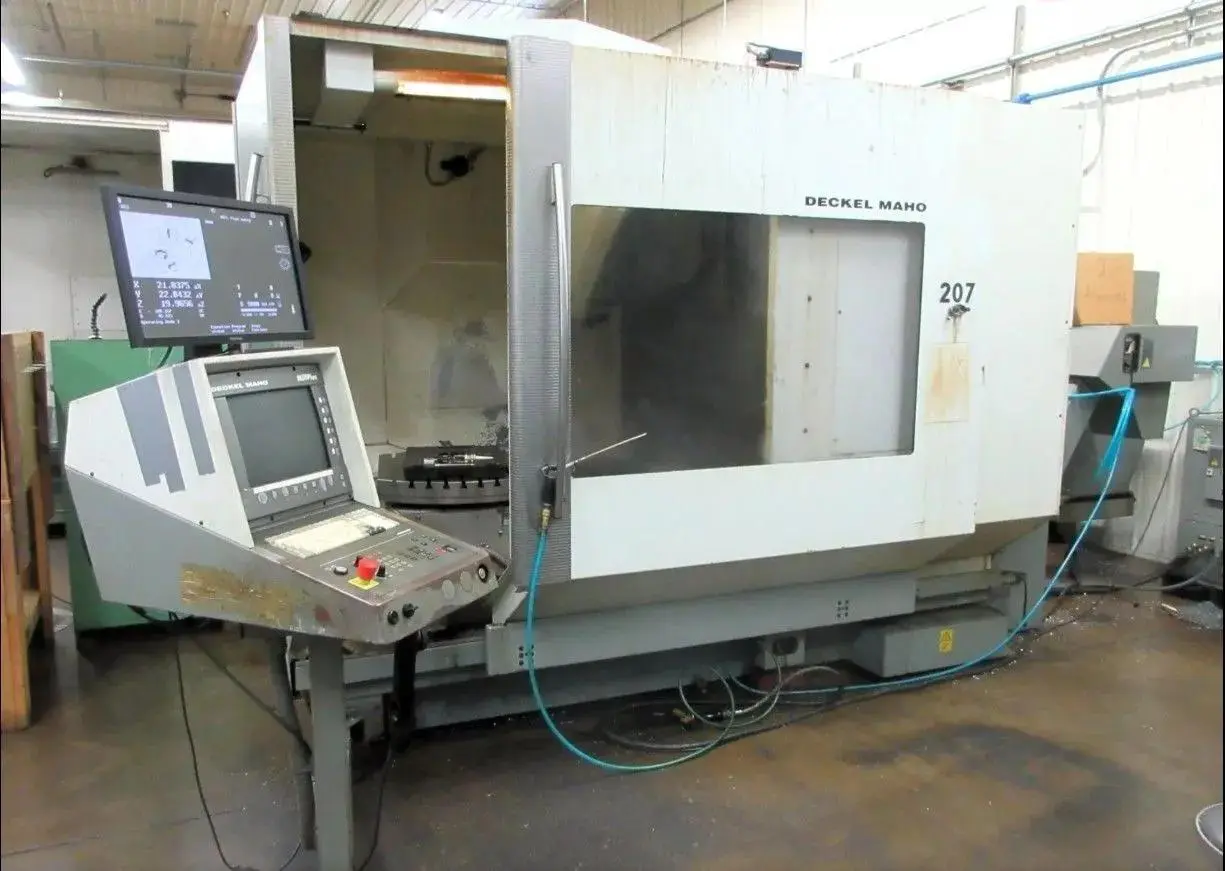

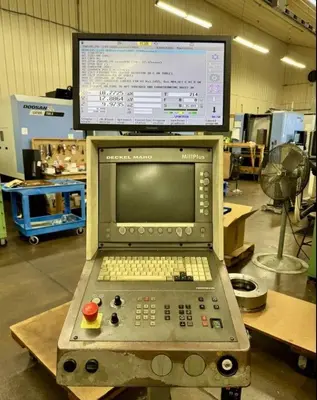

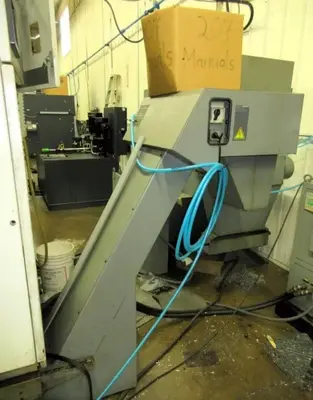

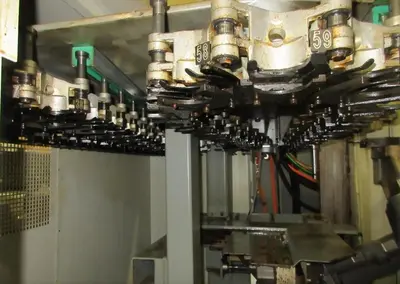

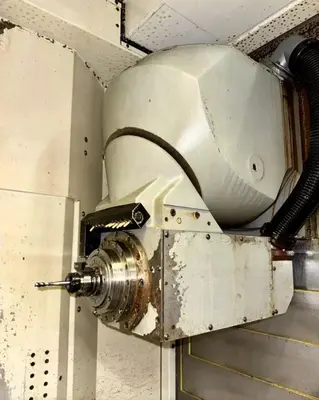

THE 2000 DECKEL MAHO DMU 80 HI-DYN IS A HIGH-PRECISION 5-AXIS VERTICAL MACHINING CENTER DESIGNED FOR COMPLEX SIMULTANEOUS MILLING OPERATIONS. IT FEATURES A WORKING ENVELOPE WITH TRAVELS OF 800 MM IN THE X-AXIS, 700 MM IN THE Y-AXIS, AND 600 MM IN THE Z-AXIS. THE MACHINE IS EQUIPPED WITH A 2-AXIS UNIVERSAL MILLING HEAD AND A B-AXIS CONTOURING ROTARY TABLE, OR AN NC SWIVEL ROTARY TABLE, ENABLING 5-SIDED MACHINING IN A SINGLE SETUP. THE TABLE TYPICALLY MEASURES 39 INCHES BY 24 INCHES (1,000 MM X 600 MM) OR FEATURES A 630 MM DIAMETER CLAMPING SURFACE, SUPPORTING A MAXIMUM LOAD OF APPROXIMATELY 600 KG. HIGH-PERFORMANCE SPINDLE OPTIONS INCLUDE SPEEDS OF 12,000 RPM WITH A CAT 40 OR SK 40 TAPER, THOUGH GEARED VERSIONS AT 6,300 RPM WITH CAT 50/SK 50 TAPERS ARE ALSO AVAILABLE. THE SYSTEM IS DRIVEN BY ADVANCED CNC UNITS SUCH AS THE HEIDENHAIN MILLPLUS OR ITNC 530, PROVIDING MICRON-LEVEL POSITIONING ACCURACY THROUGH DIRECT GLASS SCALES. RAPID TRAVERSE SPEEDS REACH UP TO 60 M/MIN. STANDARD CONFIGURATIONS INCLUDE AUTOMATIC TOOL CHANGERS WITH 30, 60, OR 120 POSITIONS, HIGH-PRESSURE THROUGH-SPINDLE COOLANT SYSTEMS (UP TO 40 BAR), AND INTEGRATED CHIP CONVEYORS. ADDITIONAL TECHNICAL FEATURES OFTEN INCLUDE RENISHAW TOUCH PROBES AND PAPER FILTRATION SYSTEMS FOR ENHANCED PROCESS CONTROL AND THERMAL STABILITY.
