10 Neumag Extrusion Lines for 1000 to 2400 Den Yarn, WS4125

TEN NEUMAG BCF EXTRUSION LINES

         Type S5

         Designed for PET Yarns 1000 to 2400 Denier

         Mono color

         Neumag Hot Draw Godets and Texturing / Crimpers

LINES #1 & 2

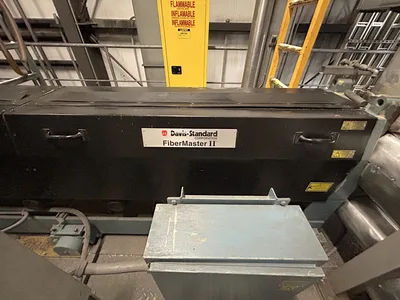

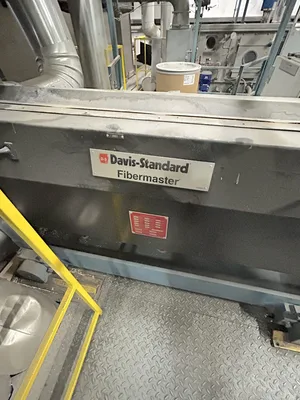

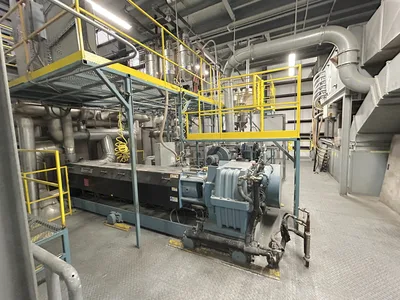

         (2) Davis Standard Fibermaster II Extruders

         4.5 inch screw diameter Line #1

         2.5 inch screw diameter Line #2

         30:1 Ratio

         With

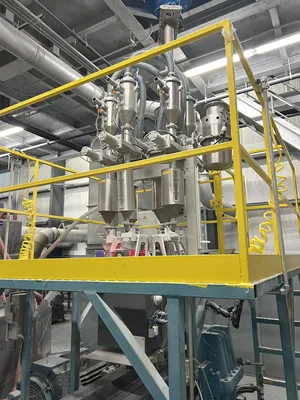

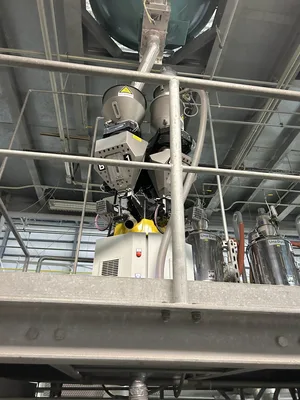

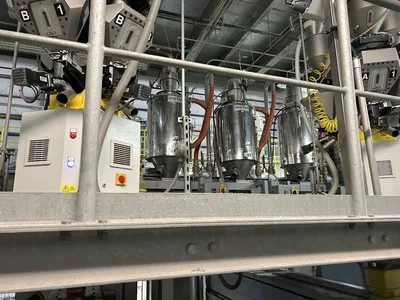

         (2) Colortronics individual dosing

         With

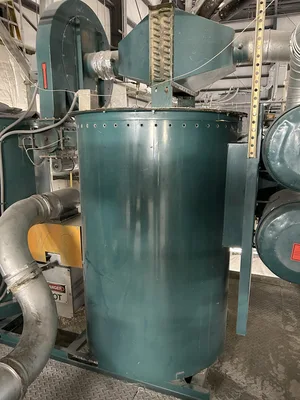

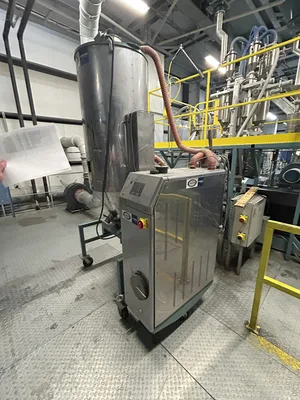

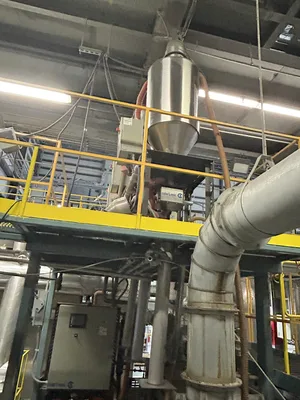

         (1) Walton Stout 1500 Combined Dryer

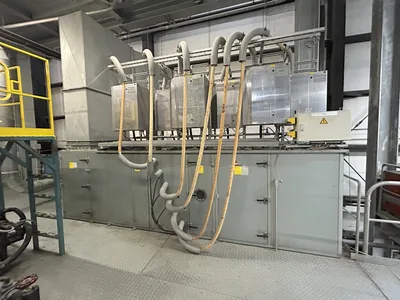

         Individual Quench

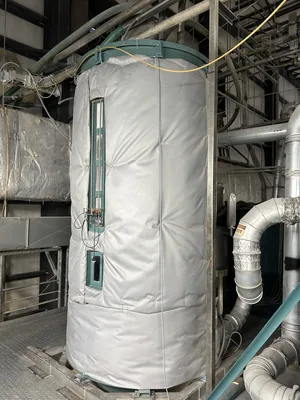

         Individual Dow Therm System

         4 Position Line #1

         2 Position Line #2

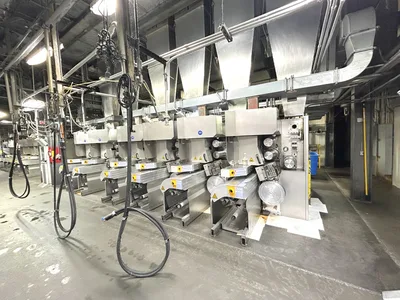

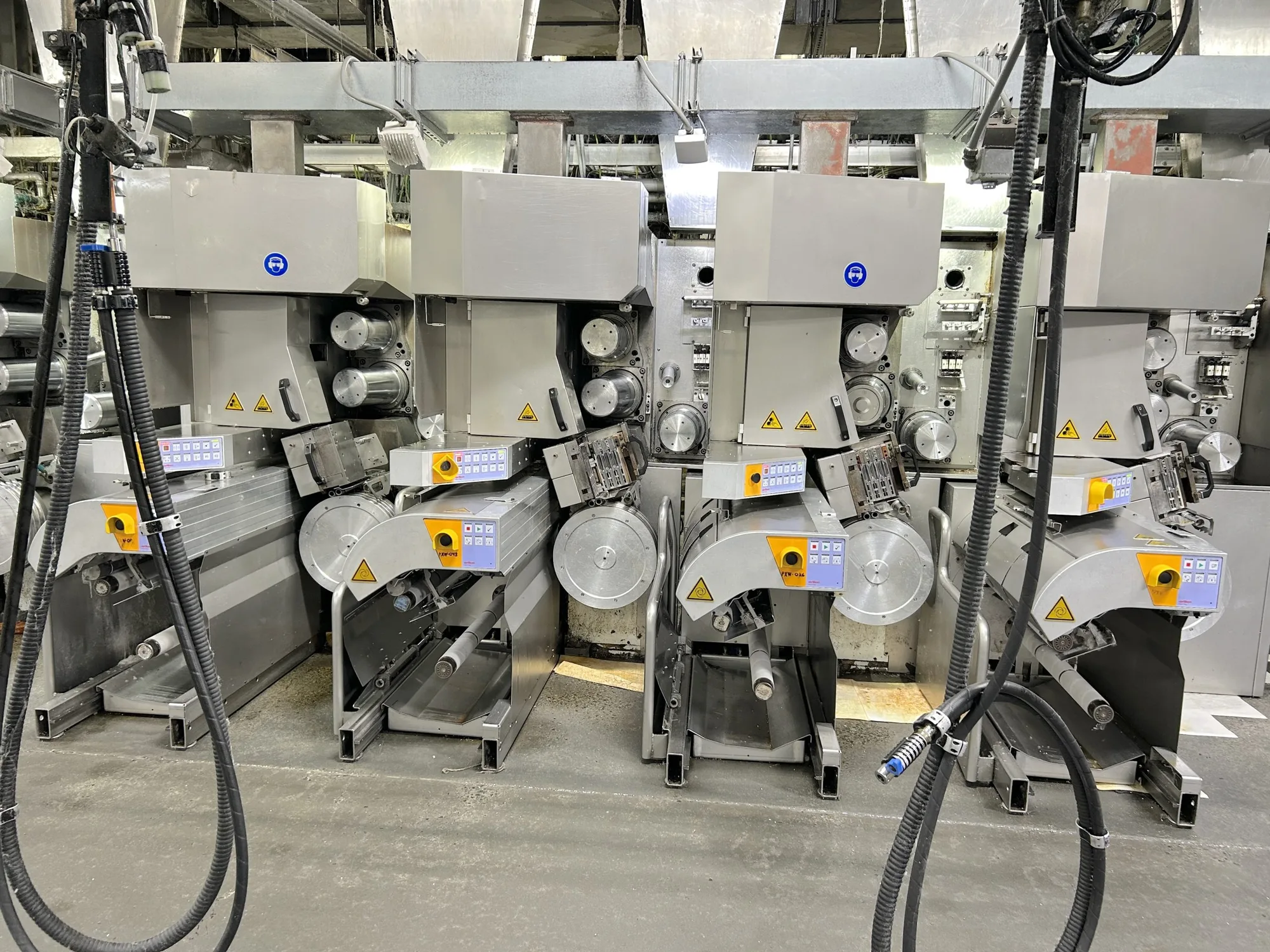

         (6) Barmag Witras Take up winders

         3 ends

         1000 mm Chuck length

         Automatic Doffing

         Year 2006



LINES 3, 4 & 5

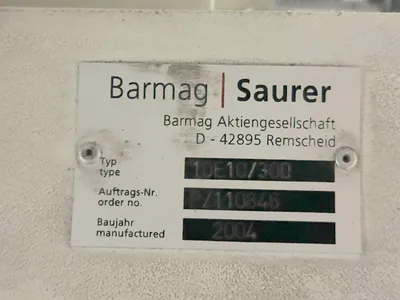

         (3) Barmag Extruders 10E10/300 – 2.5 inch screw diameter

         30:1 Ratio

         With

         (3) Doteco dosing

         With

         (1) Walton Stout 1500 Combined Dryer

         Combined Quench

         Combined Dow Therm System

         2 Positions each line with

         (6) Barmag Witras Take up winders

         3 ends

         1000 mm Chuck Length

         Automatic doffing

         Year 2006



LINE #6 & 7

         (2) Davis Standard Fibermaster II Extruders

         4.5 inch screw diameter Line #6

         2.5 inch screw diameter Line #7

         30:1 Ratio

         With

         (1) Colortronics individual dosing Line 7

         Doteco Dosing Line 6 ( removed )

         With

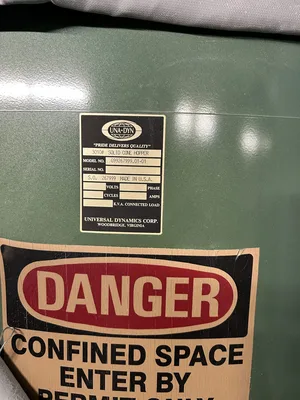

         (1) Unadyn 1500 Combined Dryer

         Individual Quench

         Individual Dow Therm System

         4 Position Line #6

         2 Position Line #7

         (6) Barmag Witras Take up winders

         3 ends

         1000 mm Chuck length

         Automatic Doffing

         Year 2007



LINE 8

         (1) Barmag Extruder 10E10/300 – 6 inch screw diameter

         30:1 Ratio

         With

         (1) ABS dosing

         With

         (1) Walton Stout 1500 Dryer

         Individual Quench

         Individual Dow Therm System

         6 Positions with

         (6) Barmag Witras Take up winders

         3 ends

         1000 mm Chuck Length

         Automatic doffing

         Year 2008



LINES #9 & 10

         (2) Davis Standard Fibermaster II Extruders

         4.5 inch screw diameter Line #9

         2.5 inch screw diameter Line #10

         30:1 Ratio

         With

         (1) ABS Individual Dosing system Line 9

         (1) Colortronics individual dosing Line 10

         With

         (2) Walton Stout 1500 Individual Dryers

         Combined Quench

         Combined Dow Therm System

         4 Position Line #9

         2 Position Line #10

         (6) Barmag Witras Take up winders

         3 ends

         1000 mm Chuck length

         Automatic Doffing

         Year 2008
