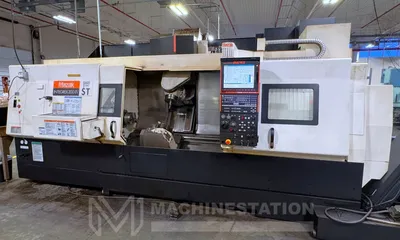

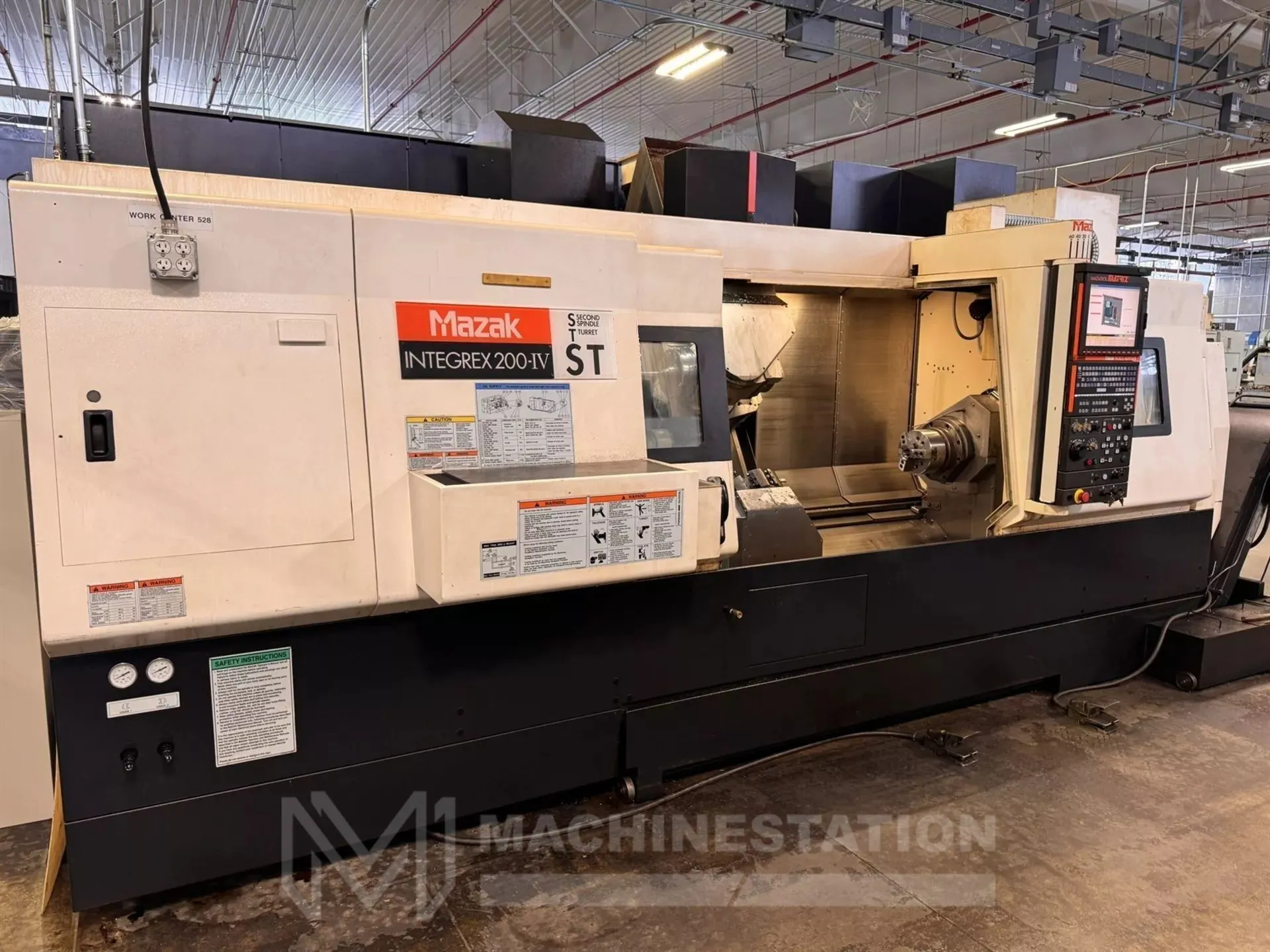

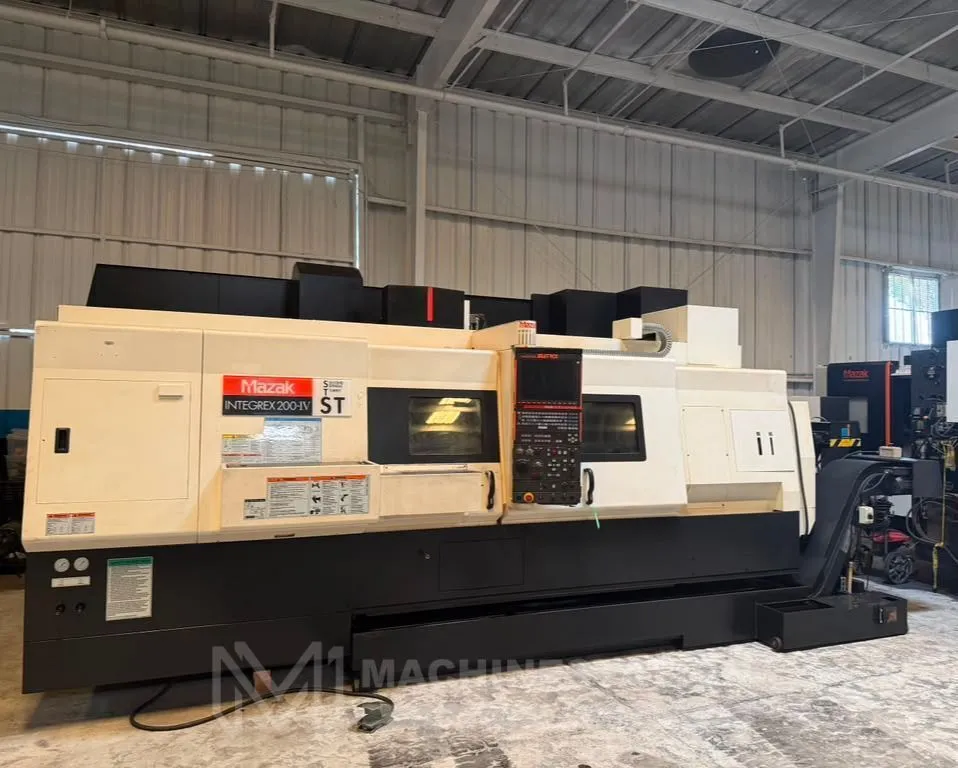

USED 2011 MAZAK INTEGREX 200-IV ST

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

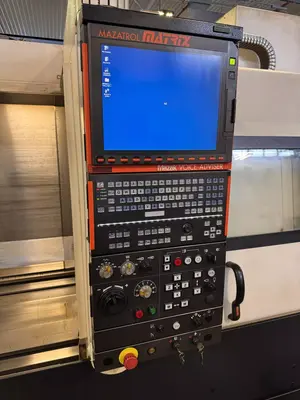

Mazatrol Matrix CNC Control
TR1 - 10,751 Hours TR2 - 3,364 Hours Cutting Time
Linear Ways Construction
EIA/ISO Programming
3D Coordinate Conversion
Rigid Tapping
PCMCIA Card Slot
Coolant Tank

Capacity:
Max Turning Diameter: 26.0″
Max Turning Length: 60.0″
Max Bar Capacity: 2.55″
Max Swing Over Bed: 26.0″
Max Swing with Y-Axis: 19.70″
Max Weight on Main & Sub Spindle: 660 lbs

Travel:
X Axis Travel: 22.83″
Y Axis Travel: 6.30″ ( +/- 3.15)
Z Axis Travel: 60.83″
W Axis Travel: 58.66″ (Sub Spindle)
B Axis Travel: 225 Degree
C Axis: 360° (0.001°) Both Spindle
X Rapid Traverse Rate: 1496 Inch Per Minute
Y Rapid Traverse Rate: 1093 Inch Per Minute
Z Rapid Traverse Rate: 1496 Inch Per Minute

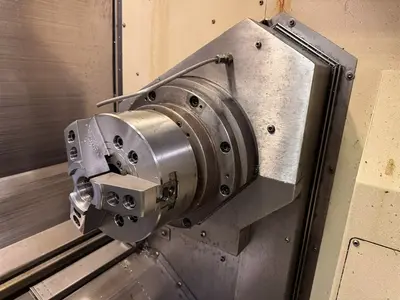

Spindle:

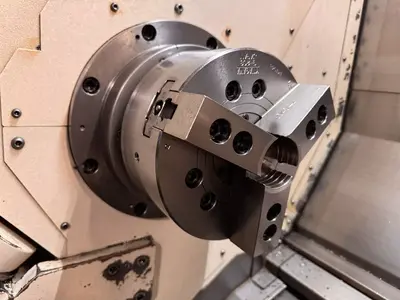

Main Spindle Nose: A2-6
Sub Spindle Nose: A2-6
Main Spindle Bore: 2.99″
Sub Spindle Bore: 2.99″
Main Spindle Speed: 35 – 5000 RPM
Sub Spindle Speed: 35 – 5000 RPM
Main Spindle Motor: 30 HP
Sub Spindle Motor: 25 HP

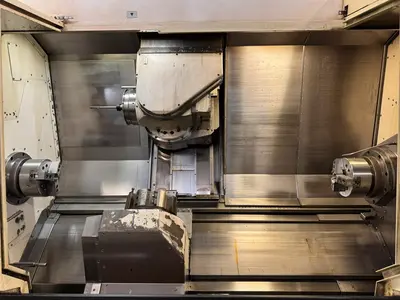

Milling Head:
Single Station Pendulum Head with 40 ATC
Tool Type: KM-63, 40 Taper
Max Tool Diameter: 3.54″
Max Tool Length: 11.81″
Spindle Speed: 15-12,000 RPM
Spindle Motor: 25 HP
Spindle 90° Index Time: 0.5 sec

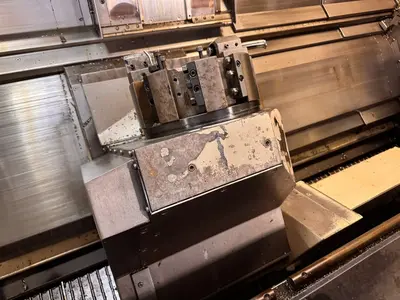

Lower Turret:
Capacity: 9 Stations
Turret Index Time: 0.14 Second
OD Tool Size: 1.00″

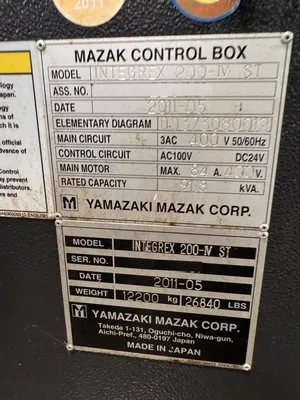

General:

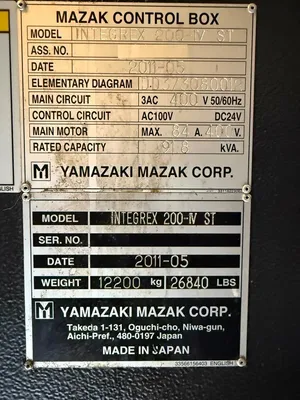

Power Source: AC 400 V, Three Phase, 50/60 Hz
Power Requirement: 91.8 Kva
Overall Dimensions: 160″ x 93.0″ x 110.2″ High
Weight: 26,840 lbs Approx.
