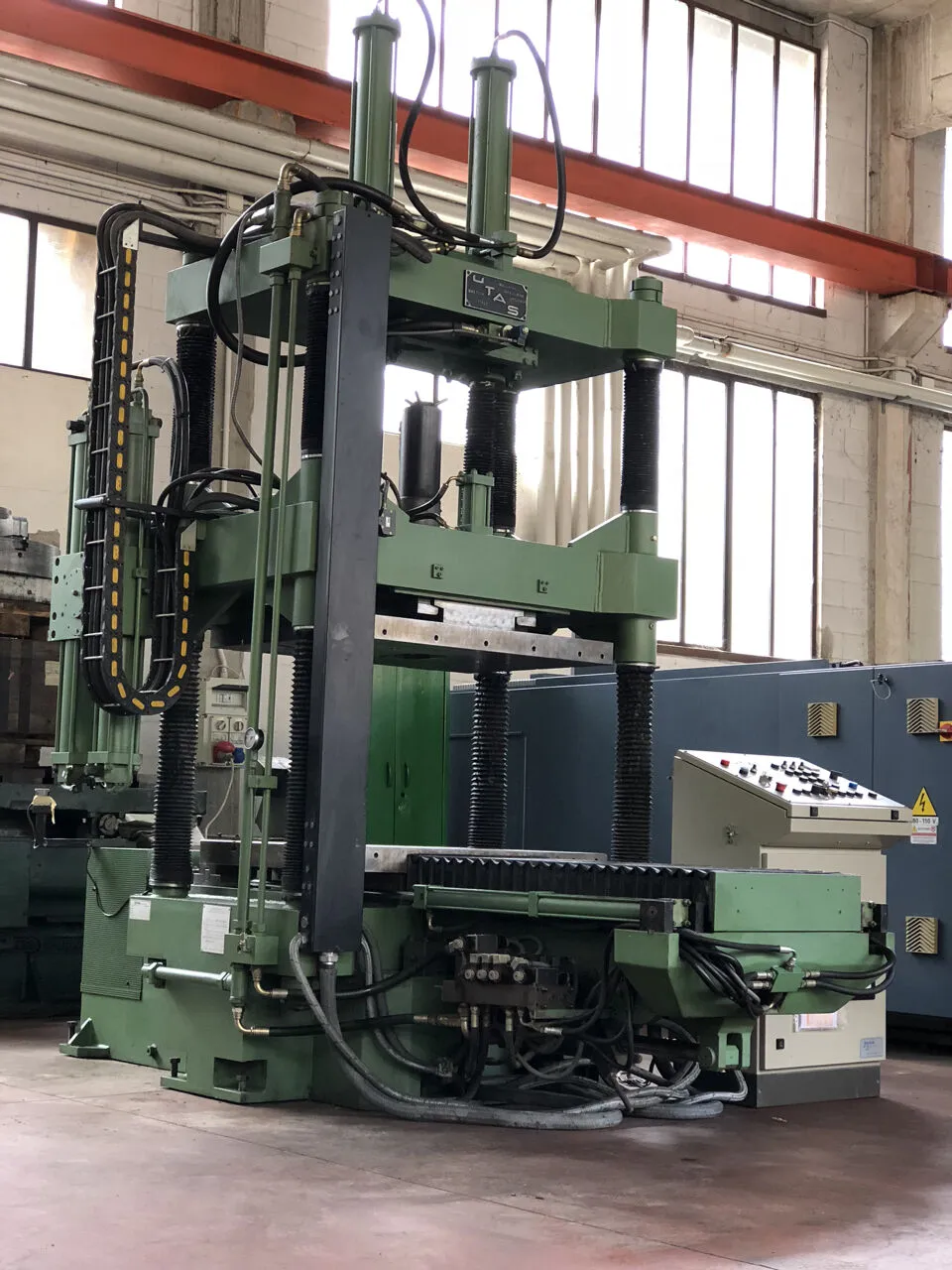

USED UTAS GR2

Floorplates size (LxWxH): 750x1100 mm29,53x43,31 in
Column distance: 1200 mm47,24 in
Max distance beween plates: 985 mm38,78 in
Min discance between plates: 85 mm3,35 in
Max weight on upper plate: 5000 Kg
Max closing strenght: 400 kN
Max opening strenght: 200 kN
Lower table overturning: 70 °
Upper table overturning: 180 °
Notes: STAMPO MAX SUI PIANI 980x900
Max weight on lower plate: 2000 Kg
Approach speed: 45 mm/sec
Return speed: 55 mm/sec
Total power supply: 15 Kw
Machine weight: 10000 kg
Floor space: 3000x2300x3600 mm118,11x90,55x141,73 in
