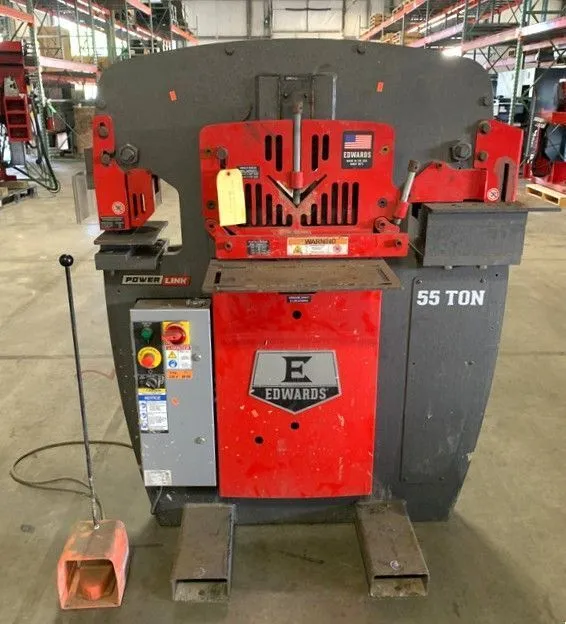

USED 2024 EDWARDS 55 TON IRONWORKER

SpecificationS:
Value
Angle Shear Max Capacity 5/16" 4" x 4"
Motor Speed (RPM) 1725
Punch Max Capacity (In.) 1-1/16 diam. in 5/8 mild steel
Punch Stroke (In.) 1-1/4
Punch Throat Depth (In.) 7-1/2
Punch Work Height (In.) 36-9/16
Flat Bar Shear Max Capacity 1/2" 12"
Flat Bar Shear Max Capacity 3/8" 14"
Flat Bar Shear Max Capacity (In.) 3/8 x 14, 1/2 x 12, 3/4 x 4
Flat Bar Shear Work Height (In.) 34-1/2
Angle Shear Work Height (In.) 39-7/8
Angle Shear Max Capacity (In.) 3 x 3 x 3/8, 4 x 4 x 1/4
Weight (Lbs.) 2480
Flat Bar Shear Max Square (In) 7/8
Flat Bar Shear Max Capacity 3/4" 4
Flat Bar Shear Max Round (In) 7/8
Open Workstation Throat Depth (In.) 11-3/16
Open Workstation Work Height (In.) 34-1/2
Hydraulic Pump (GPM) 3-1/2
Punch Shut Height (In) 6-7/8
Punch Open Height (In) 8-1/8
Amps 23
Hydraulics (GPM) 3-1/2
Rating (Tons) 55
Reservoir (Gal.) 7
Hydraulics (PSI) 2500
Valve Pressure (PSI) 2750
Product Dimensions (In.) 44-3/8 x 36-1/8 x 55-1/4
Motor (HP) 5 HP 1 ~ 230V
Overall Dimensions (L x W x H) (In.) 36-1/8" x 44-3/8" x 55-1/4"
Motor Amps 23
Shipping Dimensions (L x W x H) (In.) 45" x 51" x 62"
Gross Weight (Lbs) 2480
Height 62"
Length 45"
Weight 2480 lbs
