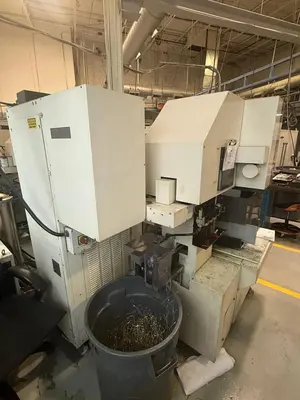

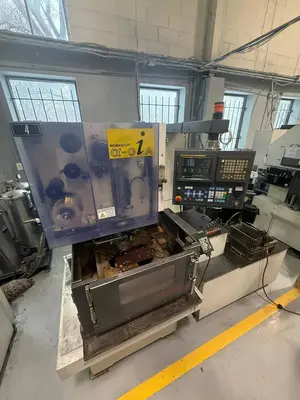

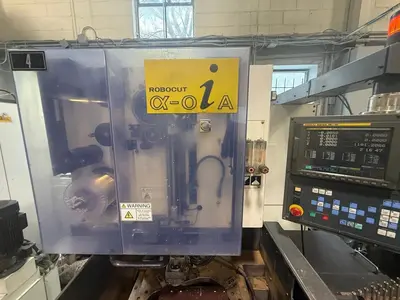

USED 2000 FANUC ROBOCUT ALPHA OIA

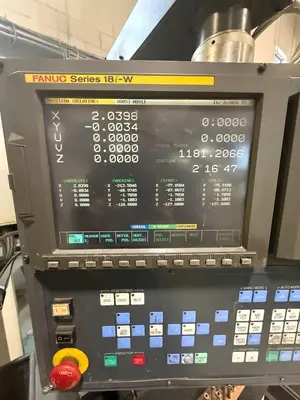

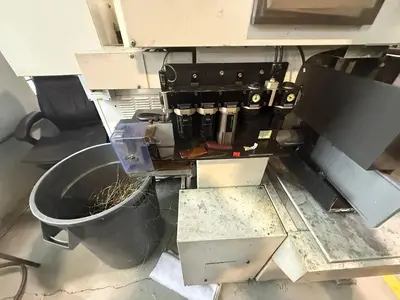

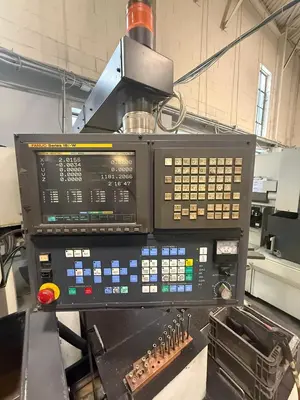

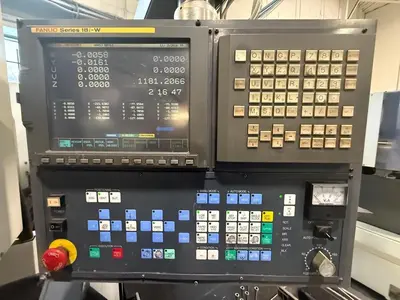

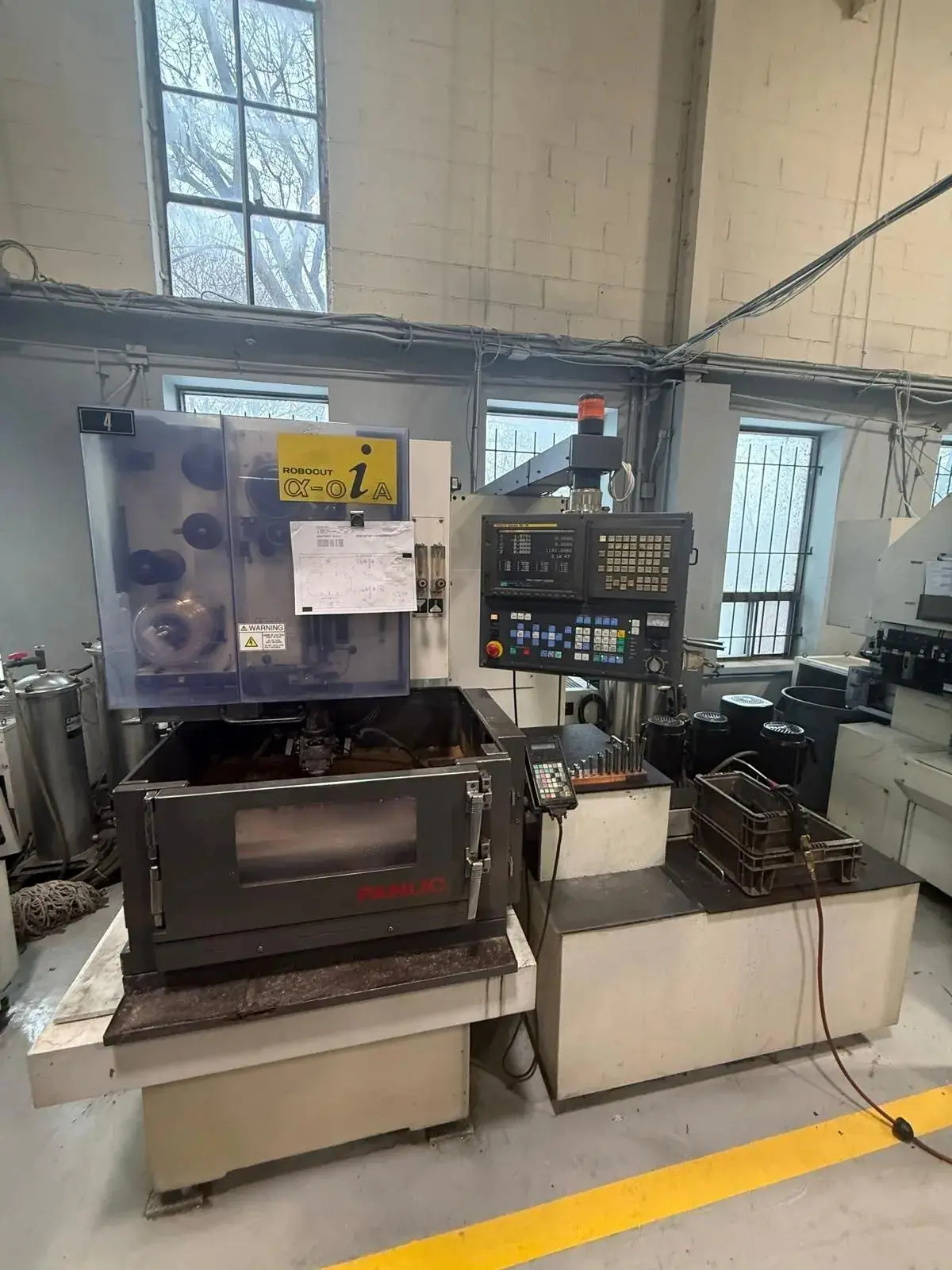

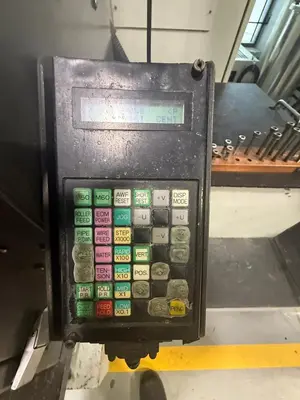

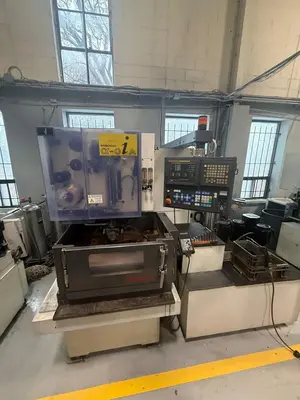

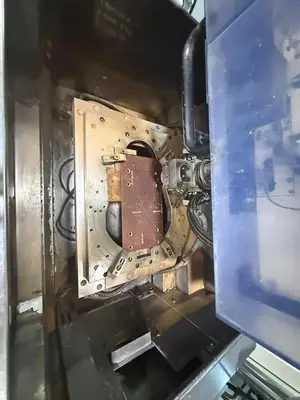

THE FANUC ROBOCUT ALPHA-0IA IS A HIGH-PRECISION CNC WIRE-CUT ELECTRICAL DISCHARGE MACHINE DESIGNED FOR INTRICATE MACHINING OF CONDUCTIVE MATERIALS. IT FEATURES A FANUC SERIES 18I-W CNC CONTROL SYSTEM, PROVIDING ADVANCED PATH MANAGEMENT AND DISCHARGE CONTROL. THE MACHINE OFFERS A WORK TABLE TRAVEL OF 320 MM IN THE X-AXIS, 220 MM IN THE Y-AXIS, AND 180 MM IN THE Z-AXIS. IT ACCOMMODATES WORKPIECES UP TO 650 MM IN LENGTH, 420 MM IN WIDTH, AND 170 MM IN HEIGHT, WITH A MAXIMUM WORKPIECE WEIGHT CAPACITY OF 500 KG. FOR PRECISE OPERATIONS, THE UNIT DELIVERS HIGH-LEVEL ACCURACY WITH POSITIONING ACCURACY OF 0.004 MM ON THE X-AXIS AND 0.001 MM ON THE Y-AXIS, COMPLEMENTED BY A REPEATABILITY OF ±0.001 MM. THE INTEGRATED AUTOMATIC WIRE FEED SYSTEM AND WIRE TENSION CONTROL ENSURE STABLE, UNMANNED OPERATION. THE MACHINE REQUIRES A 200/220V, 50/60HZ, 3-PHASE POWER SUPPLY AND IS EQUIPPED WITH AN EDM POWER AND WATER CONTROL SYSTEM, INCLUDING ROLLER FEED AND PIPE CONTROLS. ITS PHYSICAL FOOTPRINT MEASURES APPROXIMATELY 126 INCHES BY 79 INCHES BY 83 INCHES, WITH AN OVERALL WEIGHT OF 3,000 LBS. ADDITIONAL FEATURES OFTEN INCLUDE AN AC/DC POWER SUPPLY AND AN INTEGRATED OPERATOR PENDANT FOR STREAMLINED MACHINE MANAGEMENT.
