USED 2021 FANUC M-20ID/25

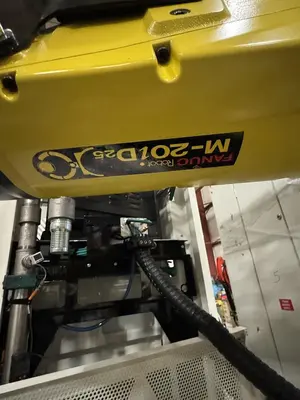

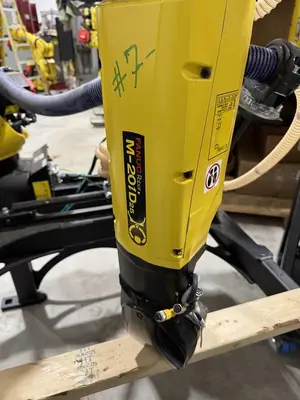

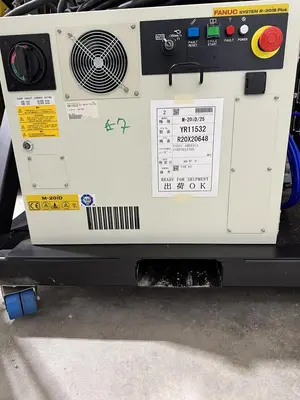

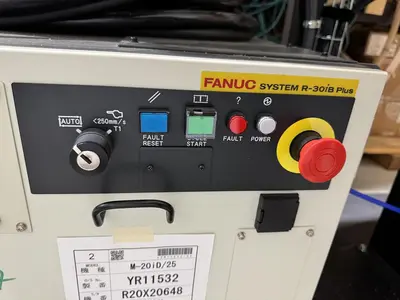

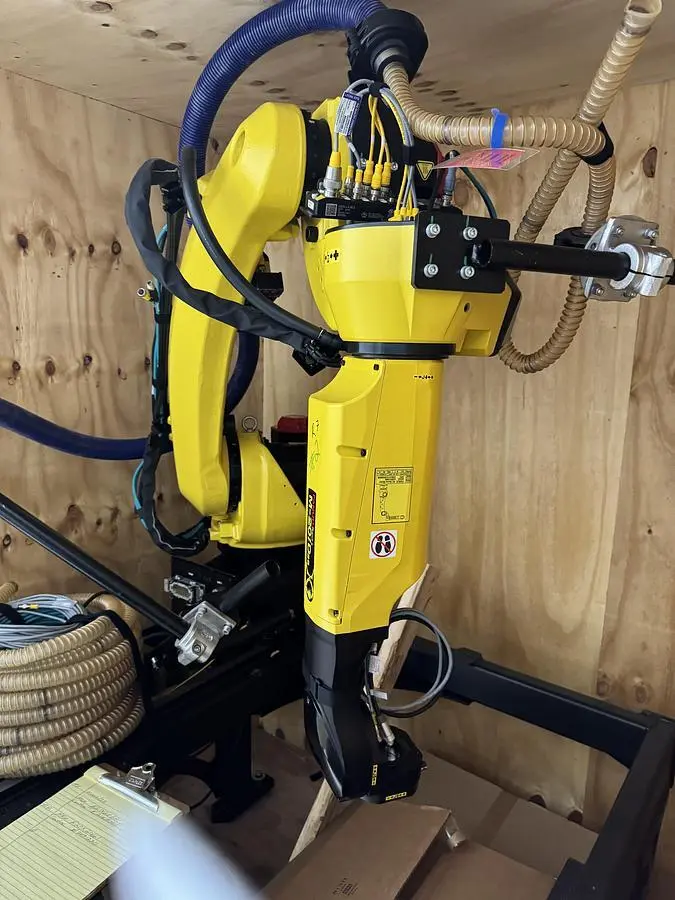

THE 2021 FANUC M-20ID/25 IS A SIX-AXIS ARTICULATED ROBOT FEATURING A 25 KG PAYLOAD CAPACITY AND AN 1831 MM REACH. THIS SYSTEM HAS A REPEATABILITY OF ± 0.02 MM AND A ROBOT MASS OF 250 KG. IT SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. THE UNIT IS EQUIPPED WITH A FANUC R-30IB PLUS MATE CONTROLLER, A TEACH PENDANT, AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE 210°/S FOR J1 AND J2, 265°/S FOR J3, 420°/S FOR J4 AND J5, AND 700°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±340°, J2 ±260°, J3 ±458°, J4 ±400°, J5 ±360°, AND J6 ±900°. DESIGNED FOR ASSEMBLY, LOAD/TRANSFER, DISPENSING, MATERIAL REMOVAL, MATERIAL HANDLING, AND PALLETIZING, THE ROBOT FEATURES A COMPACT ARM AND WRIST WITH INTERNAL CABLE ROUTING. ITS DESIGN INCORPORATES AN IMPROVED DRIVE TRAIN AND RIGID STRUCTURE FOR ENHANCED MOTION PERFORMANCE AND A LARGE WORKING ENVELOPE.
