USED 2017 FANUC A06B-0243-B605

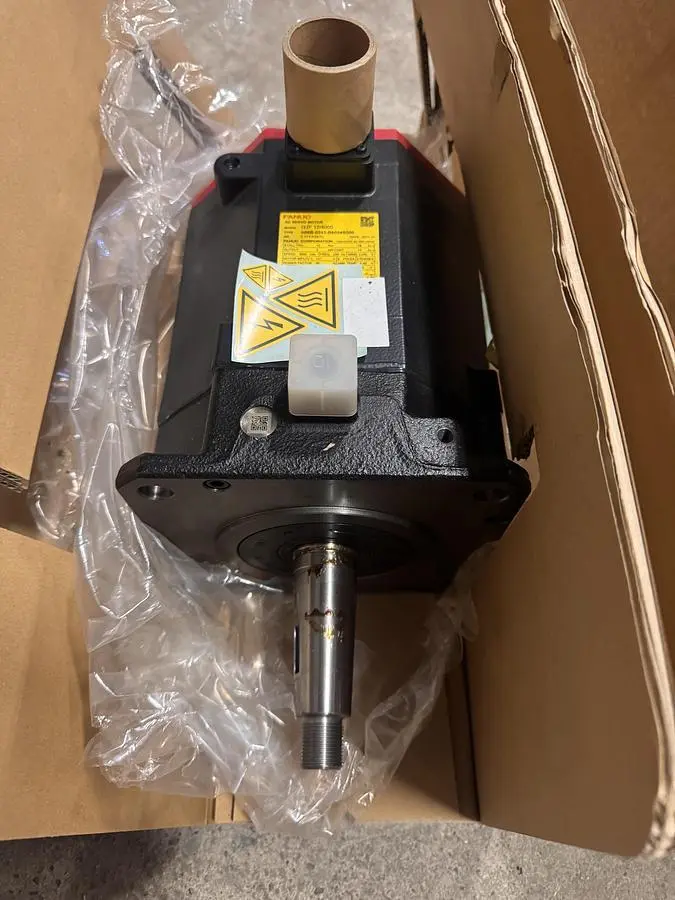

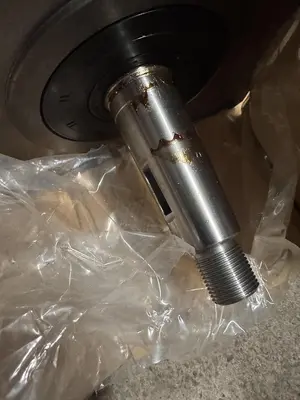

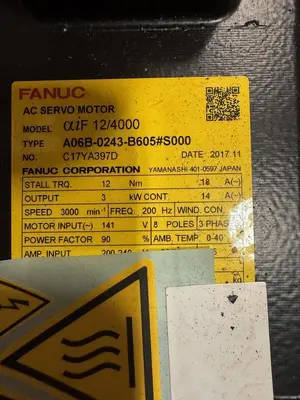

THE FANUC A06B-0243-B605#S000 IS AN AC SERVO MOTOR FROM THE ALPHA IF SERIES, SPECIFICALLY MODEL AIF 12/4000. MANUFACTURED IN 2017, THIS THREE-PHASE, EIGHT-POLE MOTOR IS DESIGNED FOR HIGH-PERFORMANCE INDUSTRIAL AUTOMATION AND CNC APPLICATIONS. IT FEATURES A TAPERED SHAFT AND IS EQUIPPED WITH A 90V BRAKE FOR PRECISE MOTION CONTROL. THE MOTOR HAS A RATED OUTPUT OF 3 KW AND OPERATES AT A RATED SPEED OF 3000 RPM WITH A MAXIMUM FREQUENCY OF 200 HZ. TECHNICAL SPECIFICATIONS INCLUDE A STALL TORQUE OF 12 NM, A RATED CURRENT OF 14 A, AND AN INPUT VOLTAGE OF 200-240 V. IT UTILIZES A Y WINDING CONNECTION AND IS RATED FOR AN AMBIENT TEMPERATURE RANGE OF 0-40°C WITH AN IP65 PROTECTION RATING AND CLASS F INSULATION. THE UNIT INCLUDES AN INTEGRATED AIAR128 PULSECODER (TYPE A860-2010-T341) FOR FEEDBACK. THE MOTOR WEIGHS APPROXIMATELY 55 LBS AND HAS PHYSICAL DIMENSIONS OF ROUGHLY 14 X 7 X 9 INCHES.
