USED 2020 FANUC M-20ID/25

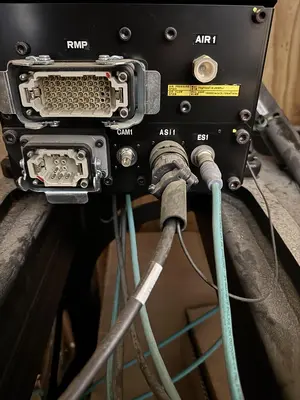

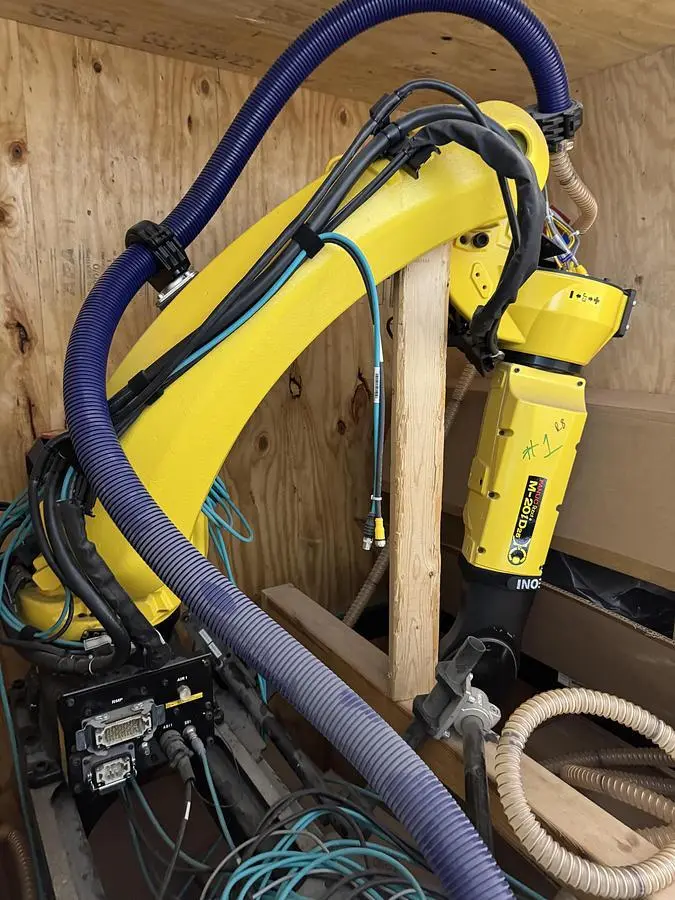

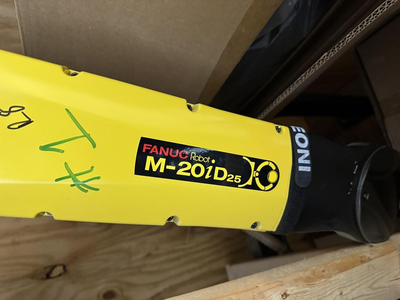

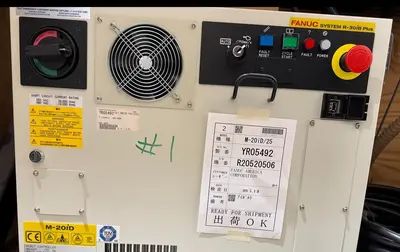

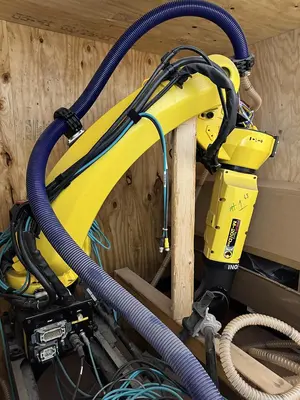

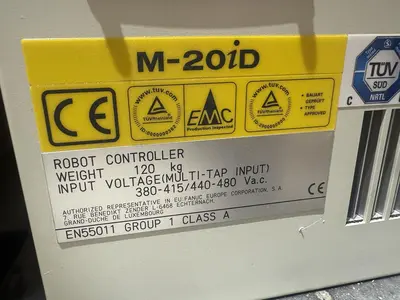

The 2020 FANUC M-20ID/25 is a six-axis articulated robot designed for applications such as assembly, load/transfer, dispensing, material removal, material handling, and palletizing. It features a 25 kg payload capacity, an 1831 mm reach, and a repeatability of ± 0.02 mm. The robot has a mass of 250 kg and supports floor, inverted, and angle mounting. Axis motion speeds are J1 at 210°/s, J2 at 210°/s, J3 at 265°/s, J4 at 420°/s, J5 at 420°/s, and J6 at 700°/s. The motion range for the axes is J1 ±340°, J2 ±260°, J3 ±458°, J4 ±400°, J5 ±360°, and J6 ±900°. The unit features a compact arm and wrist with internal cable routing. This system includes a FANUC R-30IB PLUS controller, a teach pendant, and connection cables.
