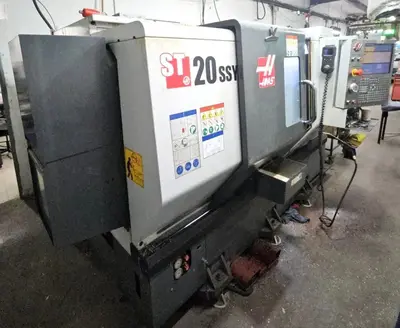

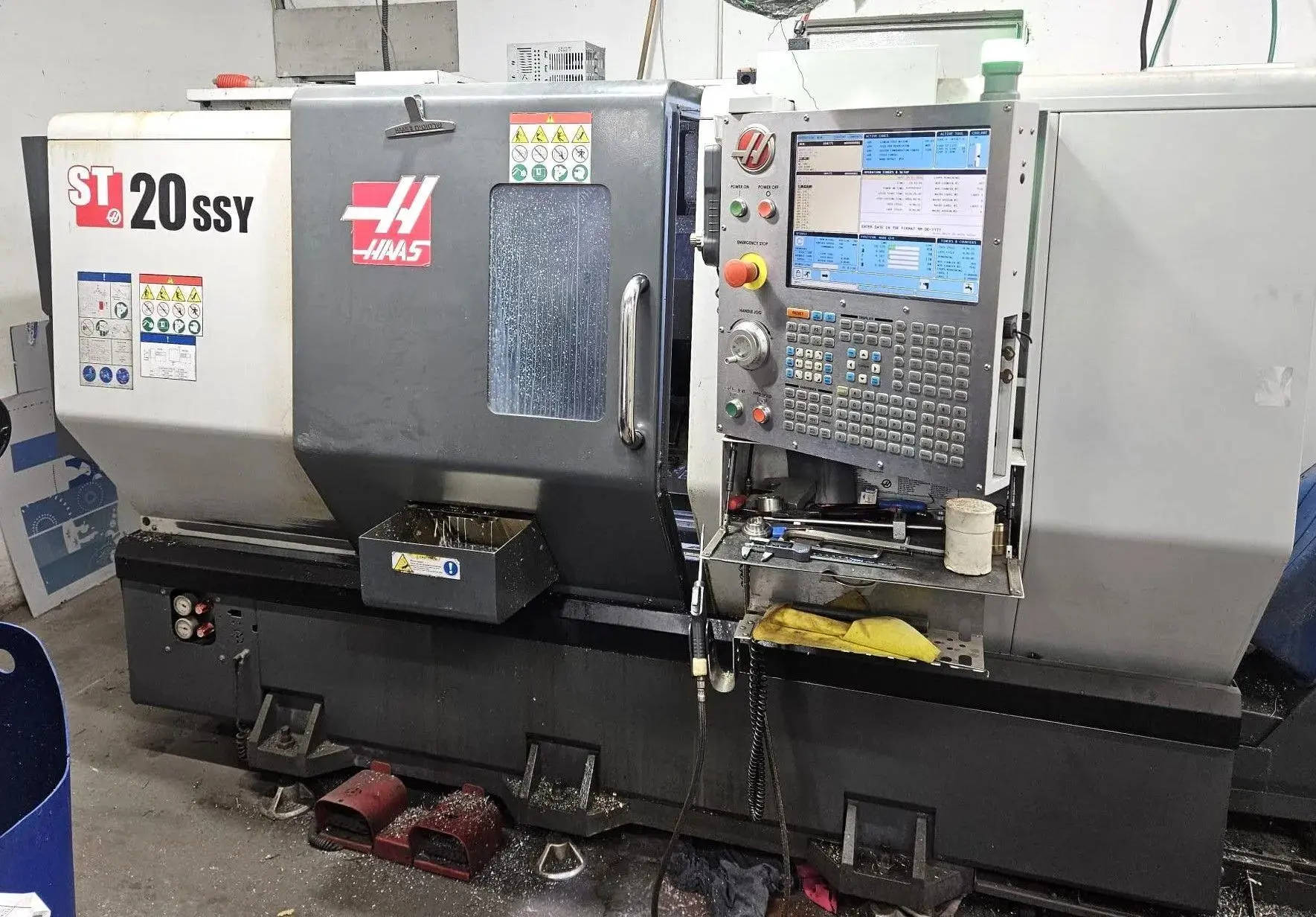

USED 2016 HAAS ST20SSY

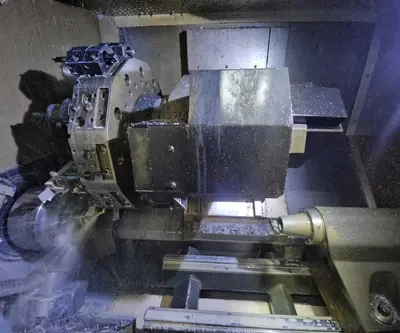

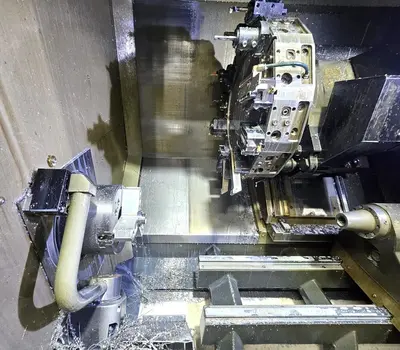

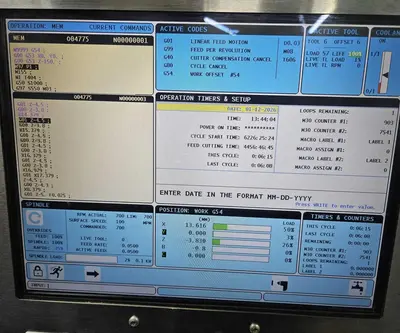

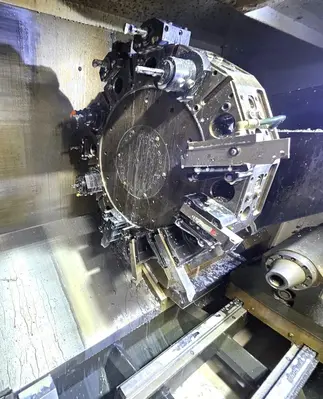

THE HAAS ST-20SSY IS A CNC TURNING CENTER MANUFACTURED IN 2016, EQUIPPED WITH LIVE TOOLING, C-AXIS, AND Y-AXIS CAPABILITIES. THE MACHINE HAS A SWING OVER FRONT APRON OF 31.75 INCHES AND A SWING OVER CROSS SLIDE OF 20.75 INCHES, WITH A MAXIMUM CUTTING DIAMETER OF 10 INCHES AND A MAXIMUM CUTTING LENGTH OF 21 INCHES. IT OFFERS A BAR CAPACITY OF 2 INCHES AND AXIS TRAVELS OF 9.3 INCHES IN X, +2 INCHES IN Y, AND 21 INCHES IN Z. THE SPINDLE OPERATES AT SPEEDS UP TO 4,000 RPM WITH A 30 HP MOTOR AND A 5 HP C-AXIS DRIVE. THE UNIT INCLUDES A 24-POSITION LIVE TURRET WITH LIVE TOOLING SPEEDS UP TO 6,000 RPM, ALONG WITH A TOOL SETTER, PARTS CATCHER, CHIP CONVEYOR, AND HAAS CNC CONTROL SYSTEM.
