USED 2013 FANUC ROBODRILL ALPHA-D21SIA5

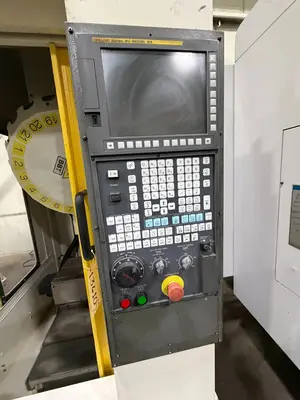

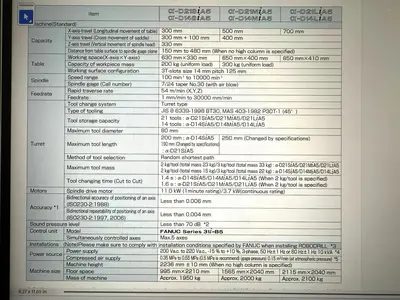

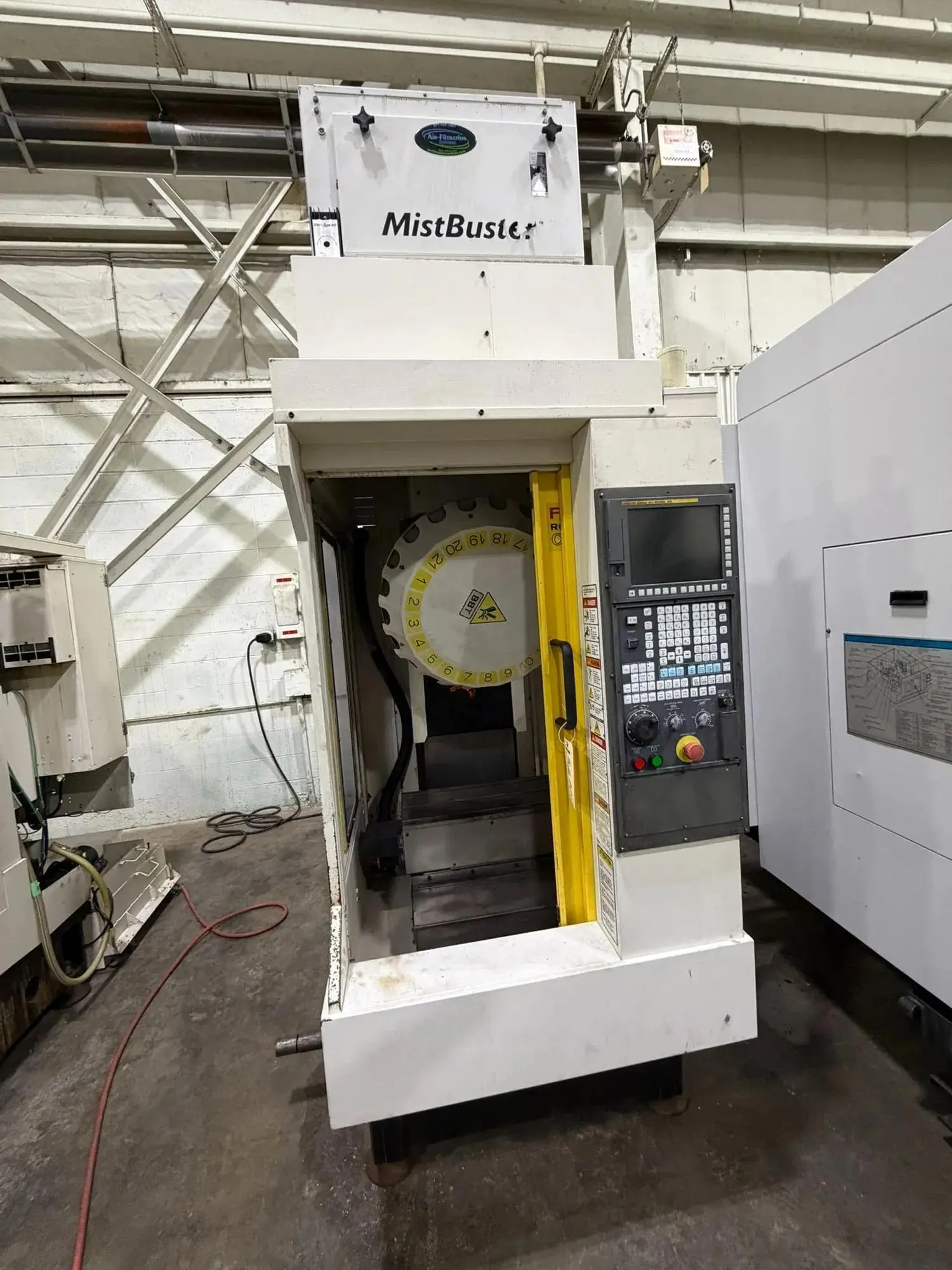

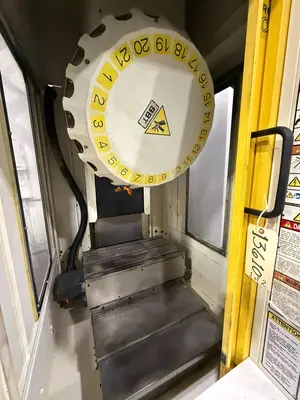

THE FANUC ROBODRILL ALPHA-D21SIA5 IS A HIGH-SPEED VERTICAL MACHINING CENTER DESIGNED FOR PRECISION DRILLING, TAPPING, AND MILLING. THIS 3-AXIS MACHINE FEATURES A 630MM X 330MM TABLE WITH A 200 KG LOAD CAPACITY. IT PROVIDES AXIS TRAVELS OF 300MM IN X, 400MM IN Y, AND 330MM IN Z. THE SPINDLE IS A 24,000 RPM DIRECT-DRIVE UNIT WITH A BT-30 "BIG PLUS" DUAL CONTACT TAPER, SUPPORTED BY A FOUR-BEARING DESIGN. IT IS EQUIPPED WITH A 21-POSITION BI-DIRECTIONAL TOOL CHANGER OFFERING A TOOL-TO-TOOL CHANGE TIME OF 0.9 SECONDS AND A CHIP-TO-CHIP TIME OF 1.6 SECONDS. THE MACHINE UTILIZES A FANUC 31I-B5 CNC CONTROL WITH NANO CNC SYSTEM ARCHITECTURE AND ULTRA-PRECISE 32,000,000 PULSES/REV ENCODERS. PERFORMANCE SPECIFICATIONS INCLUDE RAPID TRAVERSE RATES OF 2125 IPM (54 M/MIN) ACROSS ALL AXES, FEED RATES UP TO 1181 IPM, AND 1.5 G ACCELERATION. RIGID TAPPING IS SUPPORTED UP TO 8,000 RPM. STANDARD FEATURES INCLUDE AI CONTOUR CONTROL I, THERMAL GROWTH COMPENSATION, SMART BACKLASH COMPENSATION, AND A 200L COOLANT SYSTEM. THE SYSTEM OFFERS 2 MB OF PART PROGRAM STORAGE, 1,000 REGISTERABLE PROGRAMS, AND 54 WORK OFFSETS.
