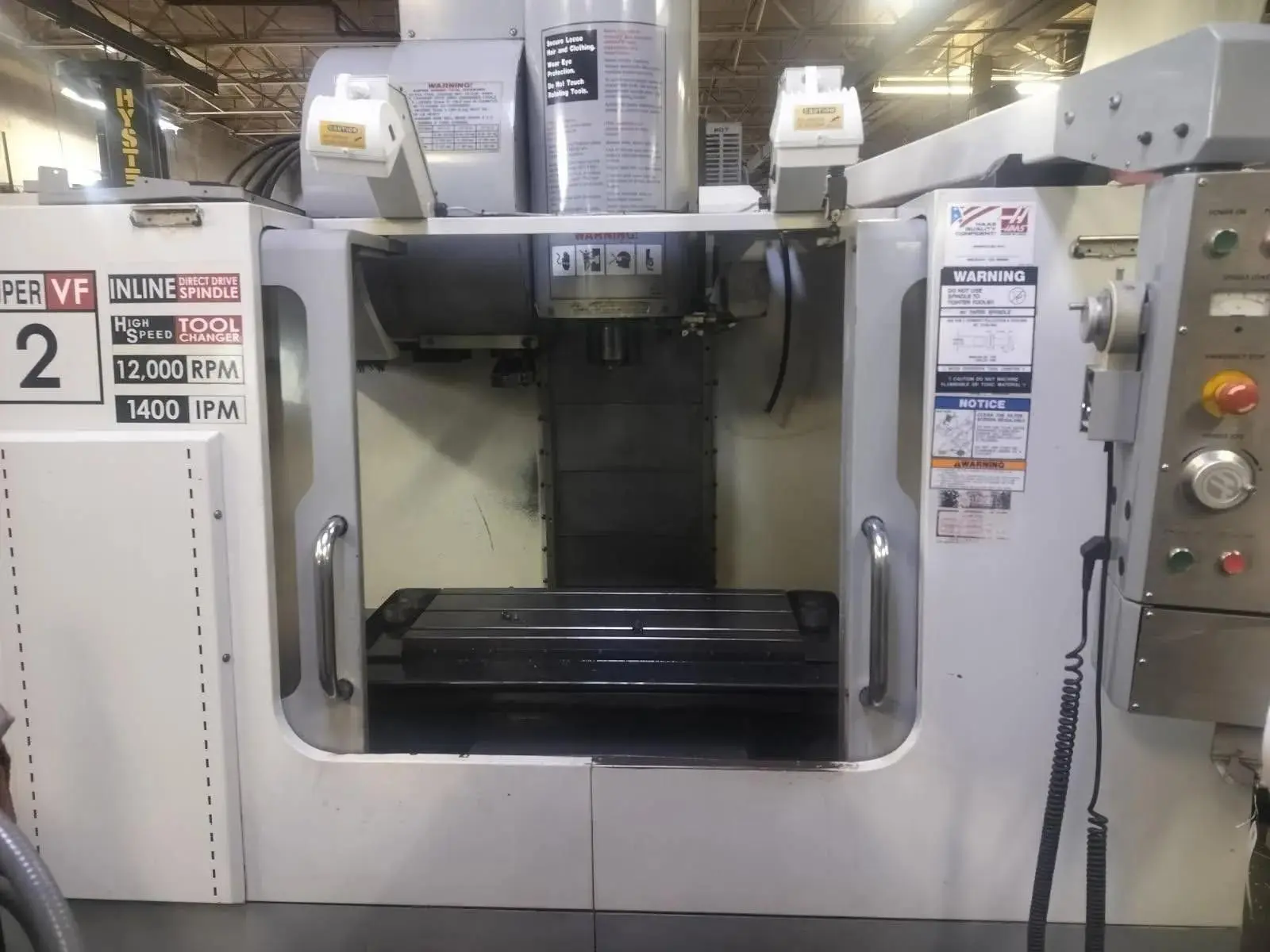

USED 2006 HAAS VF-2SS

THE 2006 HAAS VF-2SS IS A HIGH-SPEED VERTICAL MACHINING CENTER DESIGNED FOR HIGH-VOLUME PRODUCTION AND REDUCED CYCLE TIMES. THIS 3-AXIS MACHINE FEATURES TRAVELS OF 30 INCHES IN THE X-AXIS, 16 INCHES IN THE Y-AXIS, AND 20 INCHES IN THE Z-AXIS, WITH A SPINDLE NOSE TO TABLE DISTANCE RANGING FROM 4 TO 24 INCHES. THE 36-INCH BY 14-INCH WORK TABLE INCLUDES THREE STANDARD 5/8-INCH T-SLOTS AND SUPPORTS A MAXIMUM EVENLY DISTRIBUTED LOAD OF 1,500 LBS. PERFORMANCE IS DRIVEN BY A 30 HP VECTOR DRIVE, INLINE DIRECT-DRIVE SPINDLE REACHING SPEEDS UP TO 12,000 RPM AND DELIVERING 90 FT-LB OF TORQUE AT 2,000 RPM. THE SPINDLE UTILIZES A CT40 OR BT40 TAPER WITH AIR/OIL INJECTION BEARING LUBRICATION AND LIQUID COOLING.

THE MACHINE IS EQUIPPED WITH A 24+1 STATION SIDE-MOUNT TWIN-ARM AUTOMATIC TOOL CHANGER, OFFERING A TOOL-TO-TOOL CHANGE TIME OF 1.6 SECONDS AND A CHIP-TO-CHIP TIME OF APPROXIMATELY 2.2 TO 3.6 SECONDS. RAPID TRAVERSE RATES REACH 1,400 INCHES PER MINUTE ACROSS ALL AXES, WITH A MAXIMUM CUTTING FEED RATE OF 833 INCHES PER MINUTE. CONTROL IS MANAGED VIA A HAAS CNC SYSTEM WITH 1 MB OF PROGRAM MEMORY, HIGH-SPEED MACHINING CAPABILITIES, AND RIGID TAPPING. STANDARD FEATURES INCLUDE A PROGRAMMABLE COOLANT NOZZLE, 55-GALLON COOLANT CAPACITY, AND A 15-INCH COLOR LCD MONITOR. THE MECHANICAL BUILD WEIGHS APPROXIMATELY 8,000 TO 9,000 LBS AND REQUIRES A 4 SCFM, 100 PSI AIR SUPPLY AND 208/230 VOLT, 3-PHASE POWER."
