USED THEYSOHN TSK-N 045

Manufacturer Information

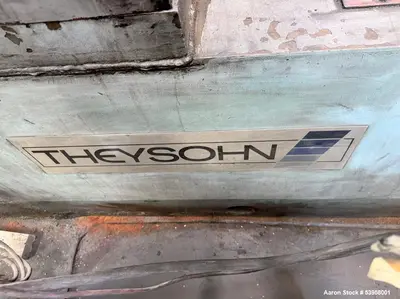

Brand: Theysohn

Model: TSK-N 045

Origin: Known for high-quality German engineering in twin screw extruder systems, particularly for polymer and plastics processing.

Description

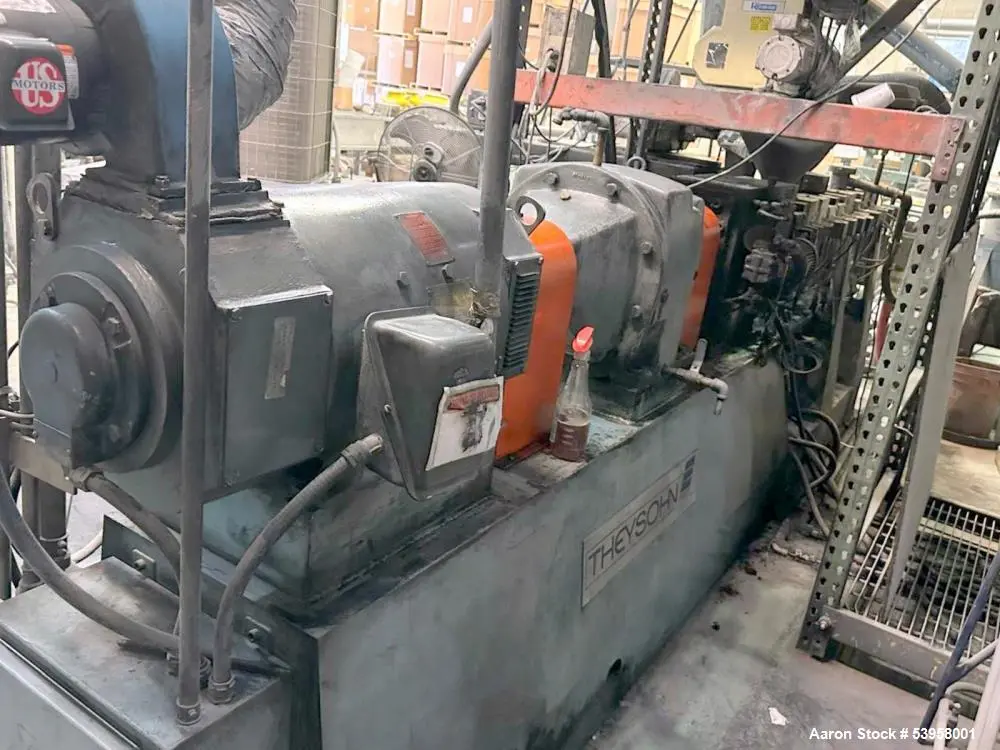

This used Theysohn TSK-N 045 co-rotating twin screw extruder features a 45mm (1.77") screw diameter and a 36:1 L/D ratio. The unit includes 8 barrel housing sections and 1 die zone. It is electrically heated and water cooled, offering optimal thermal regulation for high-performance compounding. The extruder is powered by a 50 HP (37.5 kW) PIV variable speed gearbox and driven by a 60 HP (44.7 kW), 500V DC, 105A, continuous duty motor operating at 1750/2100 RPM. Included with the system are a side feeder, Allen Bradley PLC controls, and an Emerson Digitax ST Plus DC drive module. The extruder was last used in a polyolefins application.

Specifications

Screw Diameter: 45 mm (1.77”)

L/D Ratio: 36:1

Barrel Sections: 8 plus 1 die zone

Heating/Cooling: Electrically heated, water cooled

Max Screw Speed: 500 RPM

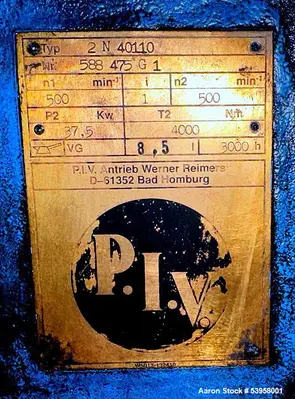

Gearbox: 50 HP (37.5 kW) PIV variable speed, type 2N40110

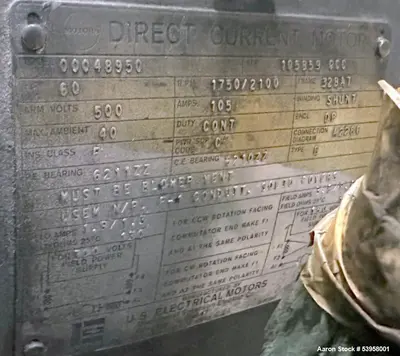

Motor: 60 HP (44.7 kW), 500V DC, 105A, continuous duty, 1750/2100 RPM

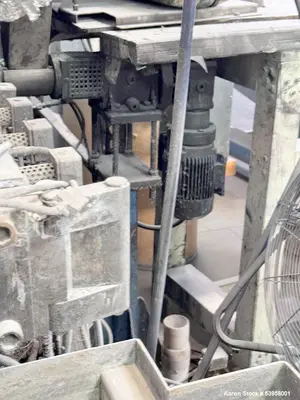

Side Feeder: Included

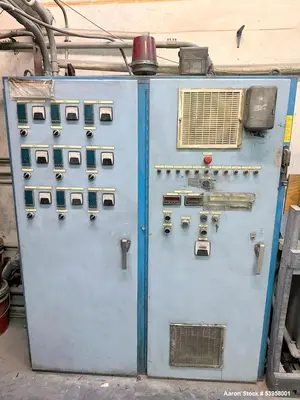

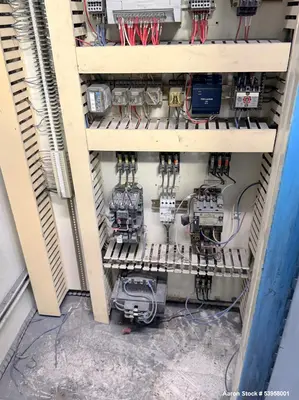

Controls: Allen Bradley PLC

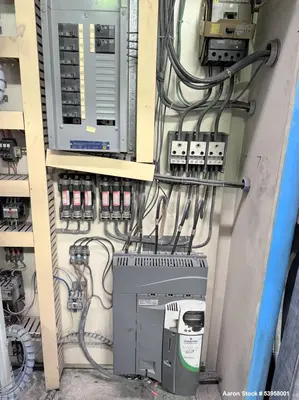

Drive Module: Emerson Digitax ST Plus

Applications

Polyolefins compounding

Masterbatch production

Filler and additive dispersion

Thermoplastics blending

Color concentrate processing

Engineering plastics development

Recycled plastics processing

Heat-sensitive polymer compounding

Laboratory or pilot scale trials

Custom formulation testing

What Products Would This Be Used For?

Polypropylene (PP) pellets

Polyethylene (PE) masterbatches

Flame retardant compounds

Glass-filled nylon

TPO (thermoplastic olefin) sheets

Bioplastics blends

PVC compounds

Engineering thermoplastics (e.g., PBT, PC blends)

Filled or foamed compounds

Recycled material blends
