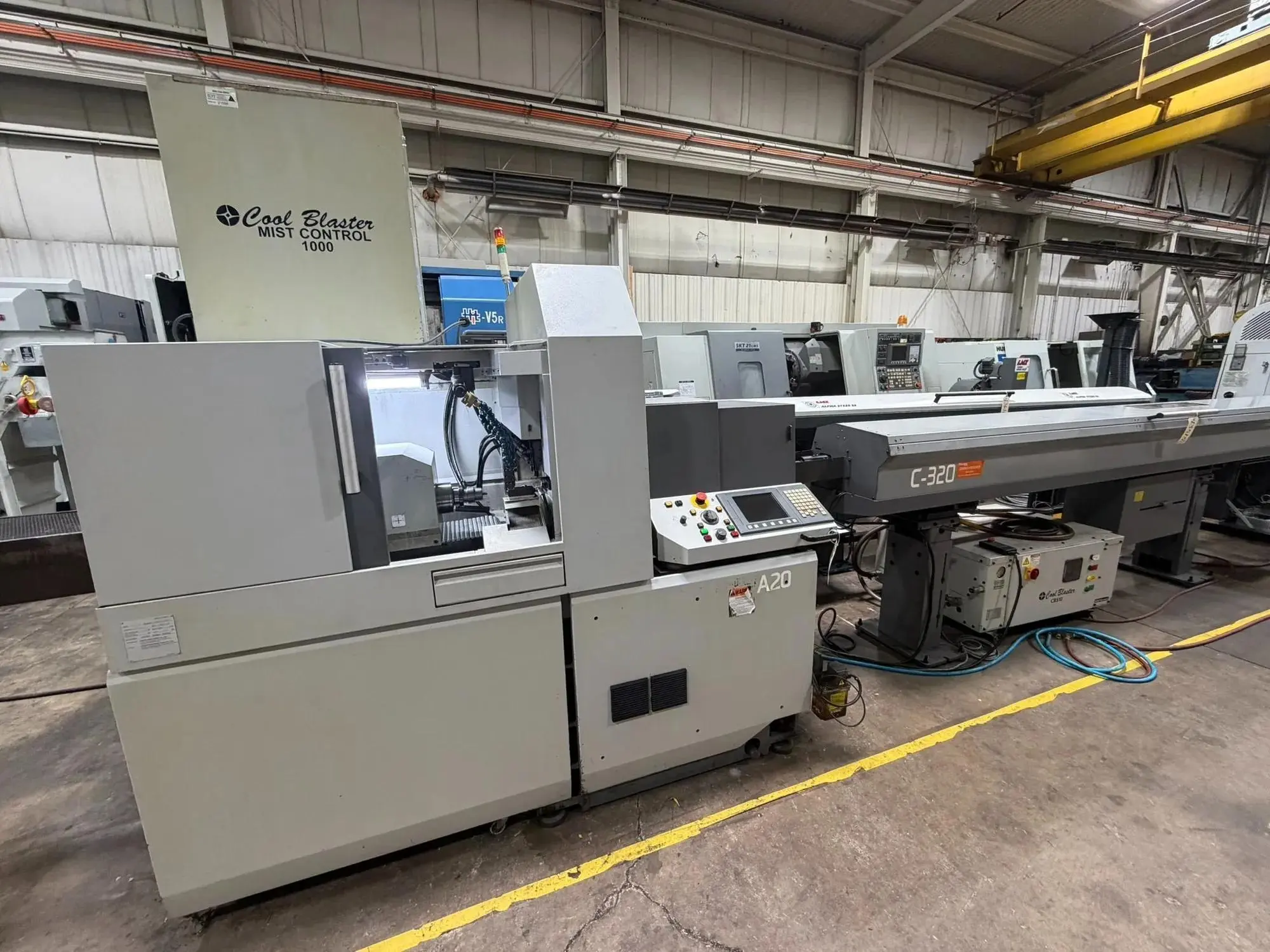

USED 2015 CITIZEN A20-3F7

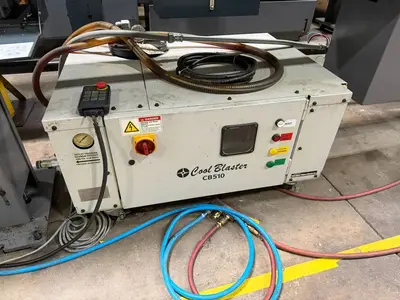

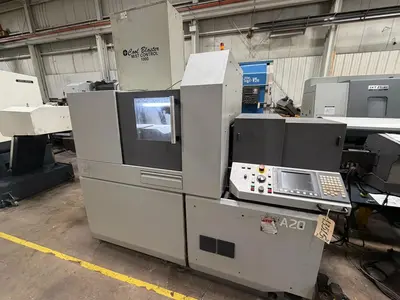

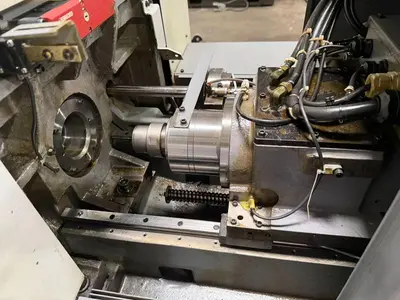

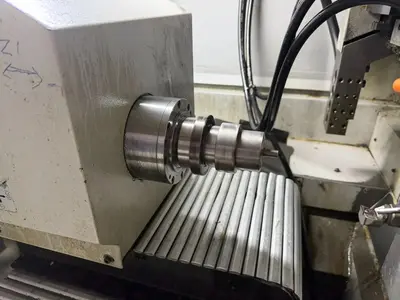

THE 2015 CITIZEN A20 TYPE VIIPL IS A CNC SWISS LATHE FEATURING FANUC CNC CONTROLS, LIVE CROSS MILLING SPINDLES, A SUB-SPINDLE, AND A HIGH-PRESSURE COOLANT SYSTEM. IT PROVIDES A MAXIMUM MACHINING DIAMETER OF 20MM AND A MAXIMUM MACHINING LENGTH OF 165MM PER SINGLE CHUCKING. THE MAIN SPINDLE IS DRIVEN BY A 5 HP/3 HP MOTOR, OPERATING AT SPEEDS RANGING FROM 100 TO 8,000 RPM WITH FULL C-AXIS INDEXING CAPABILITY AT 0.001 DEGREES. THE BACK SPINDLE, POWERED BY A 2 HP MOTOR, ACCOMMODATES A MAXIMUM CHUCKING DIAMETER OF 20MM, REACHES SPEEDS OF 100 TO 8,000 RPM, AND INCLUDES FULL C-AXIS INDEXING AT 0.001 DEGREES.

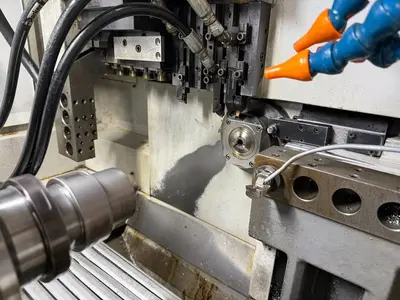

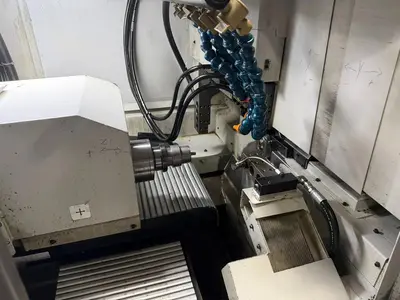

TOOLING CONFIGURATIONS ON THE MAIN SLIDE CONSIST OF FIVE STATIC TURNING TOOLS AND FOUR LIVE ROTARY TOOLS, WHICH OPERATE AT A MAXIMUM SPEED OF 6,000 RPM DRIVEN BY A 1 HP MOTOR. ADDITIONALLY, THE MACHINE INCLUDES FOUR STATIC FRONT ENDWORKING TOOLS AND FOUR STATIC BACK ENDWORKING TOOLS. THE CUTTING TOOL CAPACITY ACCOMMODATES A 1/2-INCH SQUARE SHANK AND 1-INCH DIAMETER SLEEVES. RAPID TRAVERSE RATES REACH 32 M/MIN ON THE X2, Y1, AND Z1 AXES, AND 18 M/MIN ON THE X1 AND Z2 AXES."
