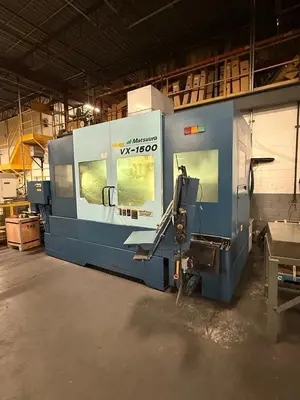

USED 2015 MATSUURA VX-1500

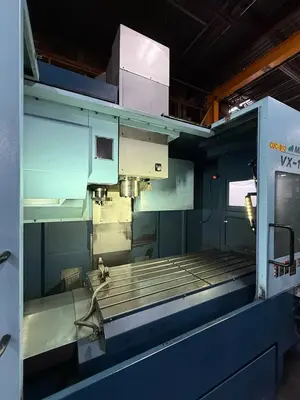

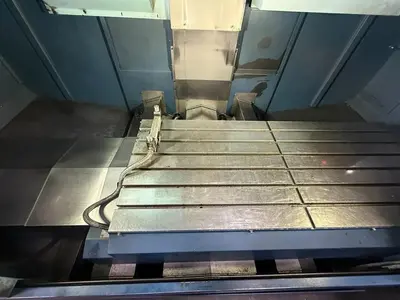

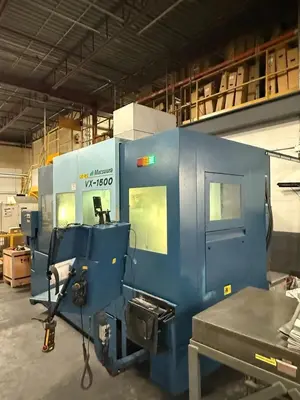

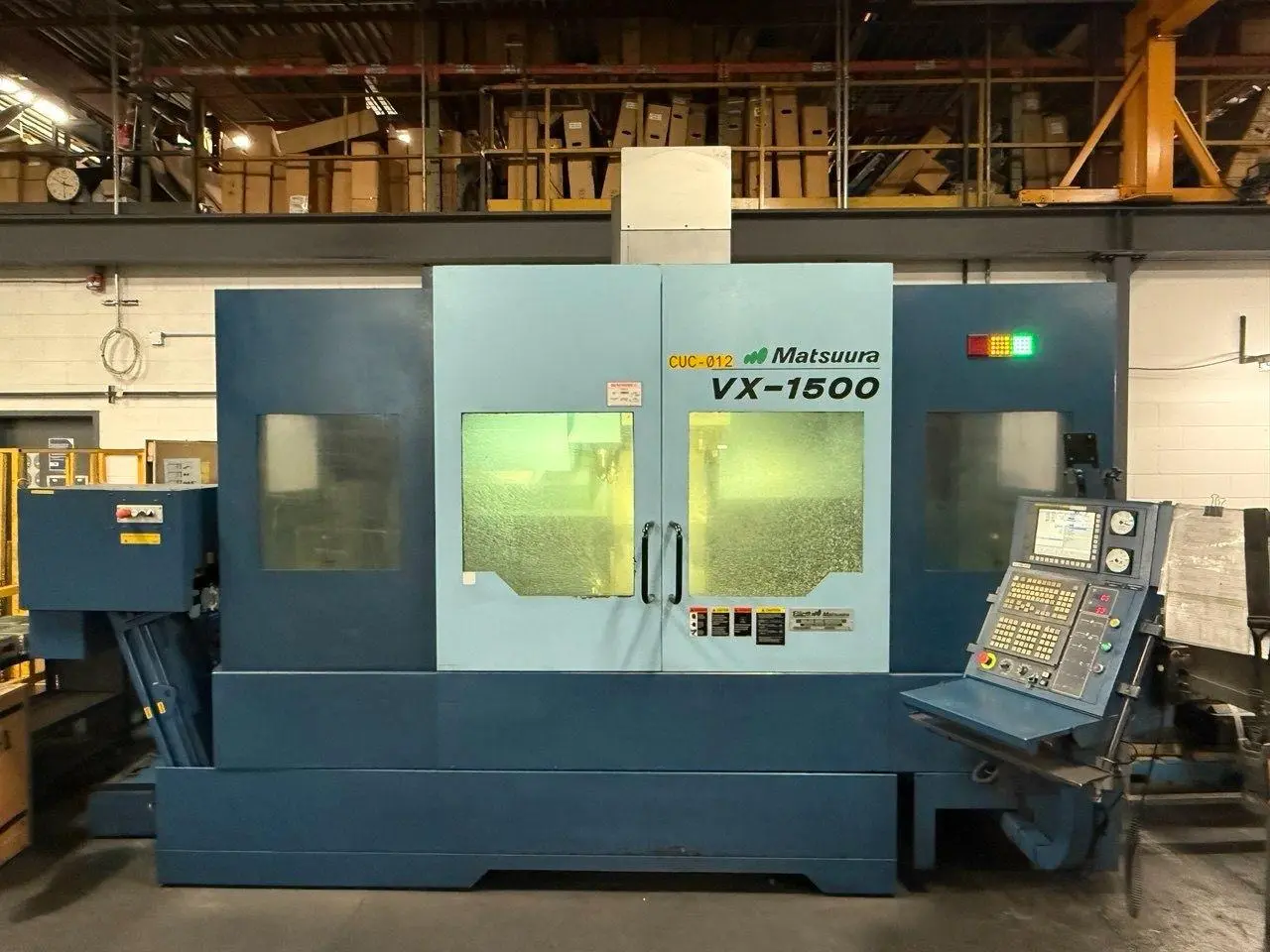

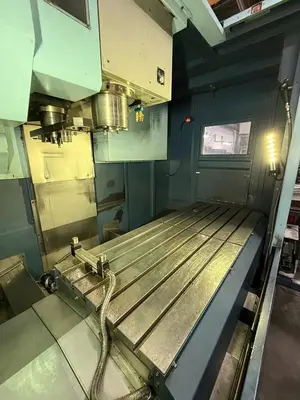

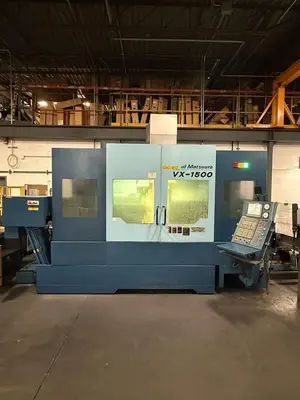

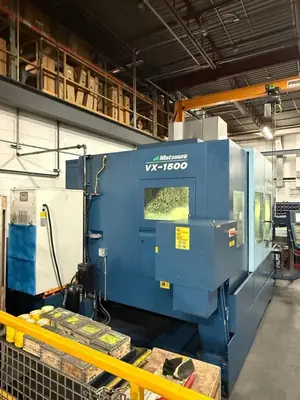

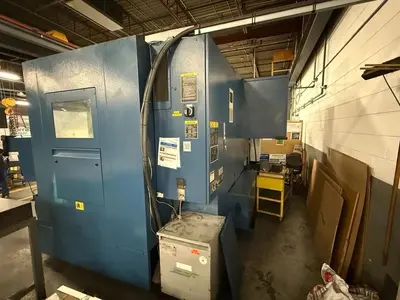

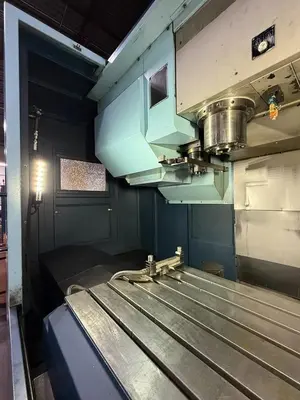

2015 MATSUURA VX-1500 VERTICAL MACHINING CENTER WITH FANUC G-TECH 31I CONTROL, CAT 50 SPINDLE TAPER, AND A 30-POSITION AUTOMATIC TOOL CHANGER. THE MACHINE PROVIDES X/Y/Z TRAVELS OF 60 X 27.5 X 24 IN (1,524 X 700 X 610 MM) AND A TABLE SIZE OF 66.9 X 27.5 IN (1,700 X 700 MM) WITH 4,400 LB (2,000 KG) CAPACITY. SPINDLE SPEED RANGES FROM 50 TO 15,000 RPM WITH 20/40 HP (15/30 KW) SPINDLE POWER AND MAXIMUM TORQUE OF 258 FT-LBS (350 NM). RAPID TRAVERSE IS 1,417 IPM (36 M/MIN). FEATURES INCLUDE THROUGH-SPINDLE COOLANT, AIR THROUGH SPINDLE, A RENISHAW OMP-60 PROBE SYSTEM, RENISHAW NC-4 TOOL SETTER, AND A LIFT-UP CHIP CONVEYOR. THE TABLE IS EQUIPPED WITH 6 T-SLOTS, 18 MM WIDE ON 100 MM CENTERS. MACHINE POWER REQUIREMENT IS 200V, 3 PHASE, 60 HZ, WITH OVERALL DIMENSIONS OF 178 X 126 X 126 IN AND APPROXIMATE WEIGHT OF 24,250 LB.
CUTTING HOURS:
POWER ON TIME: 55,281 HOURS
OPERATING TIME: 32,192 HOURS
CUTTING TIME: ~11,000 HOURS
CYCLE TIME: 37,888 HOURS
