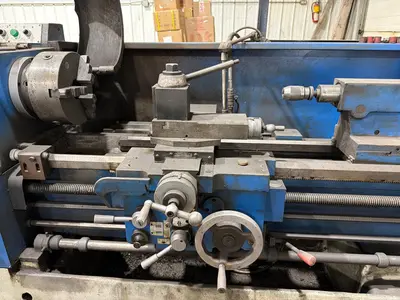

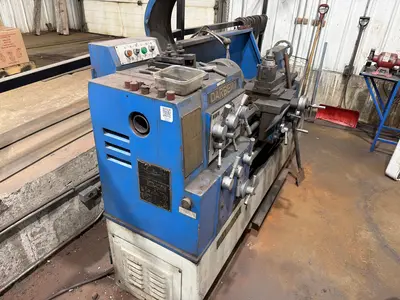

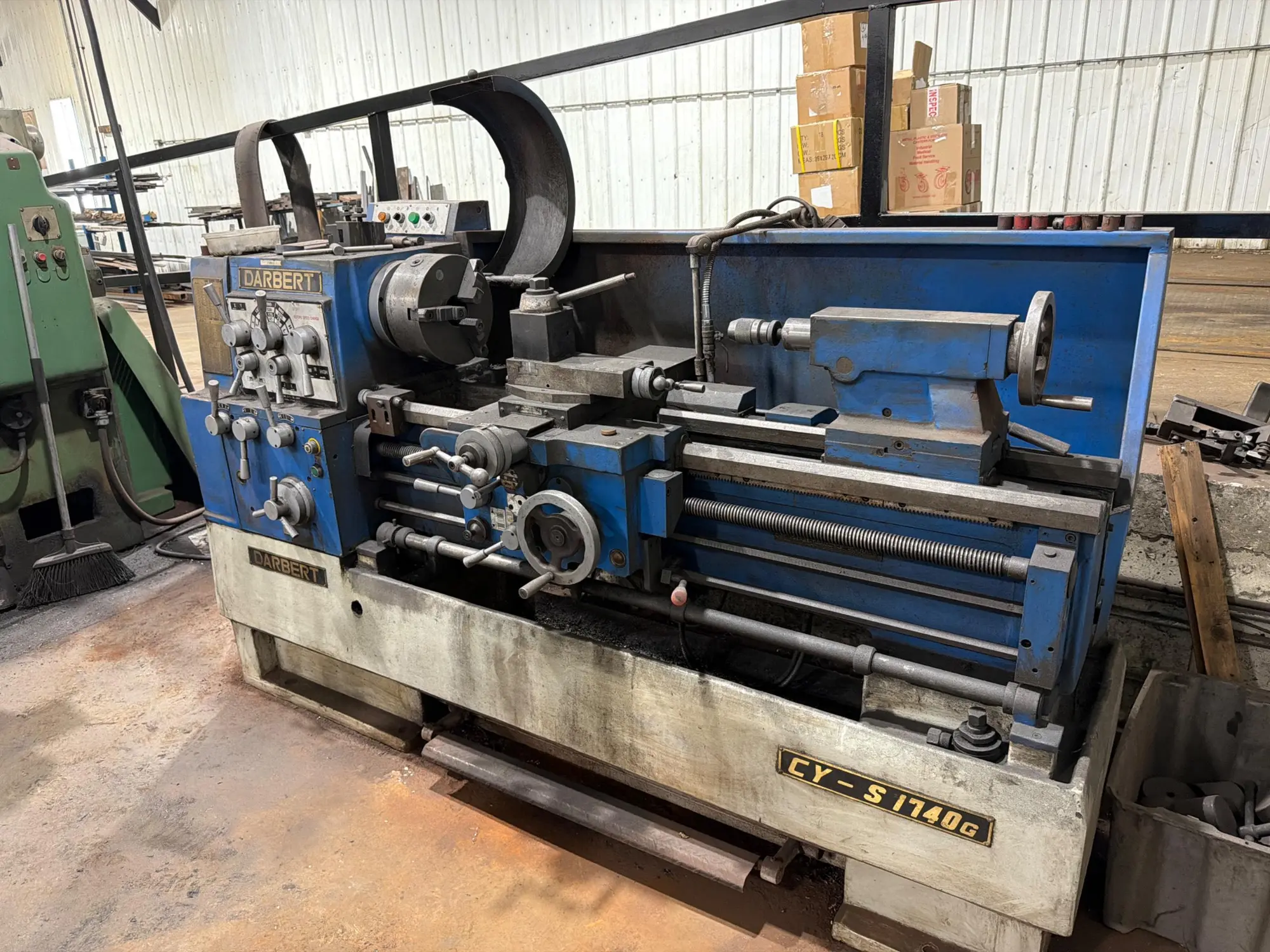

USED DARBERT CY-S1740G

THE DARBERT CY-S1740G IS A HIGH-SPEED PRECISION GAP-BED ENGINE LATHE DESIGNED FOR INDUSTRIAL PARTS MANUFACTURING. CONSTRUCTED WITH A CAST IRON HEADSTOCK, GEAR-BOX, APRON, AND BED-WAYS, THE MACHINE FEATURES INDUCTION-HARDENED BED-WAYS. IT OFFERS A 16.7 IN SWING OVER THE BED, A 9.4 IN SWING OVER THE CROSS SLIDE, AND A 25.6 IN SWING IN THE GAP, WITH A DISTANCE BETWEEN CENTERS OF 39.4 IN. THE SPINDLE HAS A D6 NOSE, A 2.24 IN BORE, AND AN MT6 TAPER, PROVIDING 12 SPEED STEPS RANGING FROM 20 TO 2000 RPM. THREADING CAPABILITIES INCLUDE A RANGE OF 2 TO 56 TPI FOR INCH SYSTEMS AND 0.02 TO 0.55 IN FOR METRIC SYSTEMS. THE LONGITUDINAL FEED RANGE IS 0.0024 TO 0.0323 IN/REV, WHILE THE CROSS FEED RANGE IS 0.0008 TO 0.0114 IN/REV. ADDITIONAL TECHNICAL FEATURES INCLUDE A LEAD SCREW, AND AN MT4 TAILSTOCK WITH 5.0 IN OF QUILL TRAVEL. POWERED BY A 7.5 HP MAIN MOTOR AND A COOLANT PUMP, THE UNIT INCLUDES A MONO-BLOCK BED BASE FOR RIGIDITY AND FEATURES SUCH AS A FOOT BRAKE, LONGITUDINAL AUTOMATIC STOP, AND A MANUAL LUBRICATION PUMP.
