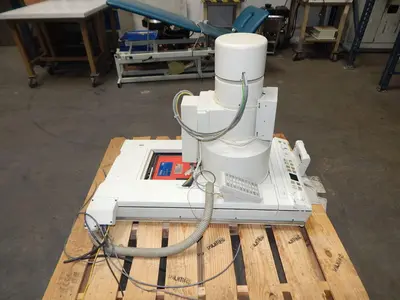

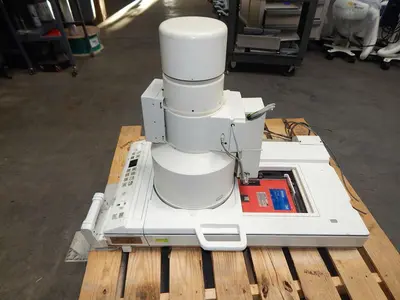

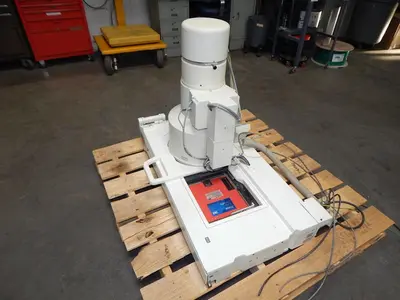

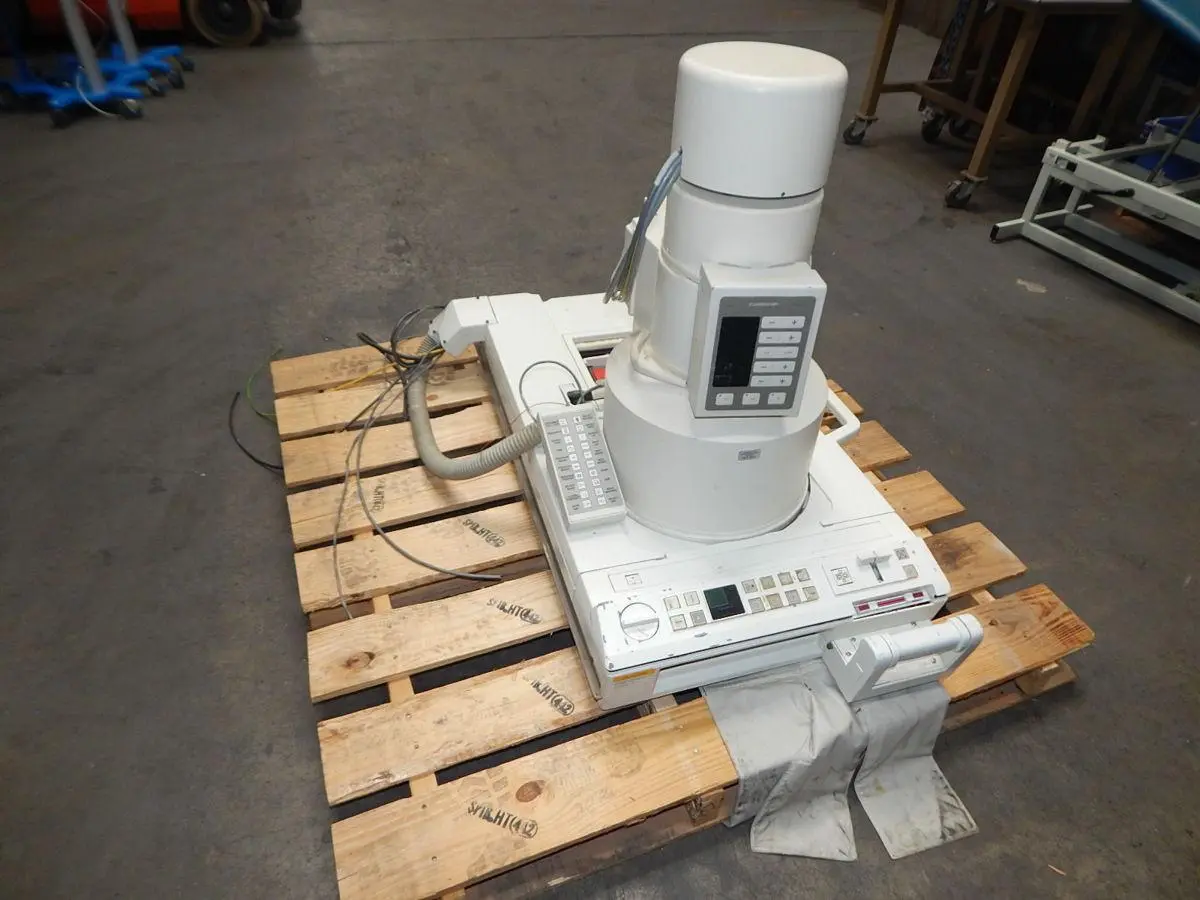

USED GE 46-179025G1

THE GE 46-179025G1 IS A HIGH-FREQUENCY X-RAY GENERATOR DESIGNED FOR MEDICAL DIAGNOSTIC IMAGING APPLICATIONS. THIS 65 KW GENERATOR PROVIDES A VARIABLE OUTPUT VOLTAGE RANGE FROM 40 TO 150 KVP AND CURRENT SETTINGS FROM 10 TO 800 MA. EXPOSURE DURATIONS ARE PRECISELY CONTROLLABLE, RANGING FROM 1 MILLISECOND UP TO 6.3 SECONDS. THIS EQUIPMENT IS TYPICALLY CONFIGURED WITH A ROTATING ANODE X-RAY TUBE, SUCH AS THE GE PERFORMA M6995. THE PERFORMA M6995 TUBE COMMONLY FEATURES A 12-DEGREE TARGET ANGLE, DUAL FOCAL SPOTS OF 0.6 MM AND 1.2 MM, AND AN ANODE HEAT STORAGE CAPACITY OF 300 KHU WITH A MAXIMUM COOLING RATE OF 85 KHU/MINUTE, SUPPORTING A MAXIMUM TUBE VOLTAGE OF 150 KV.
