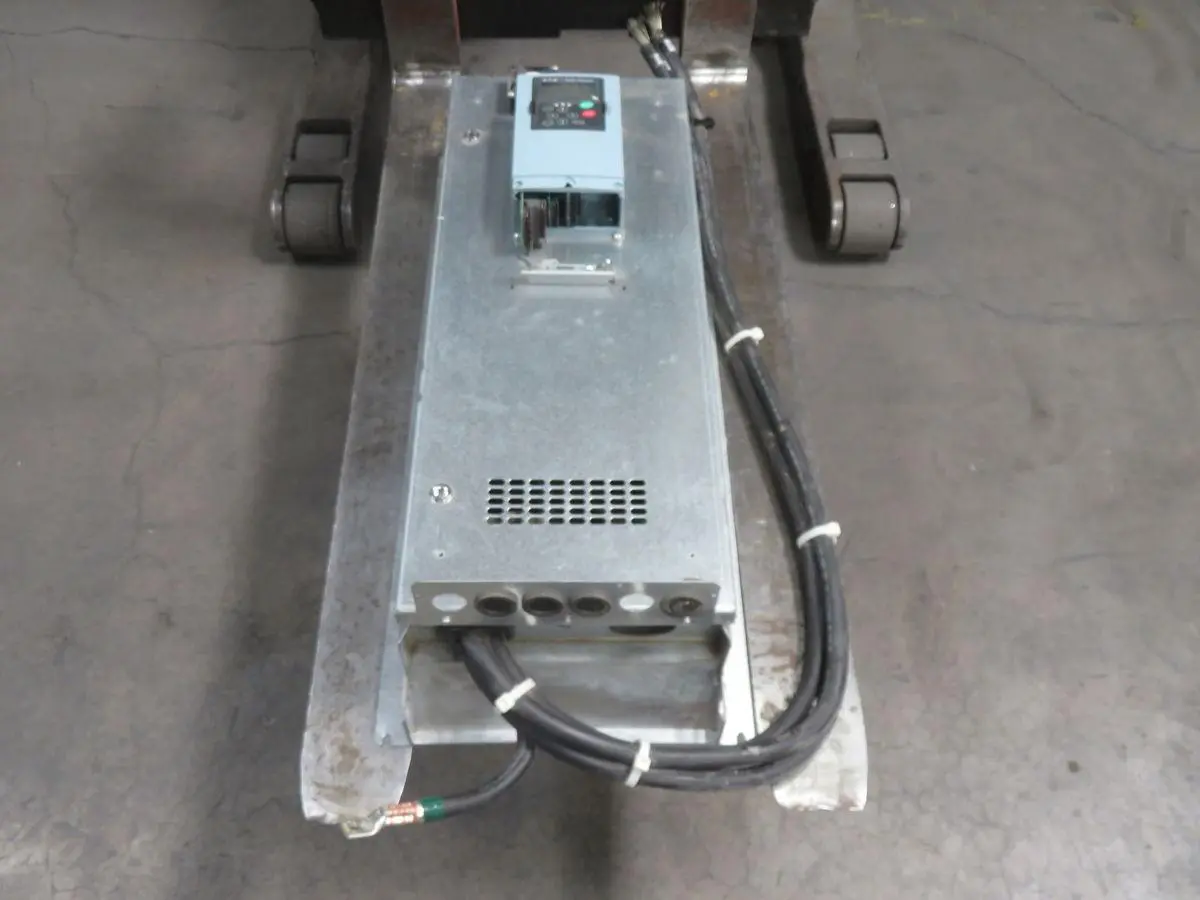

USED EATON SVX125A1-4A1N1

THE EATON SVX125A1-4A1N1 IS A THREE-PHASE AC DRIVE FROM THE SVX9000 SERIES, RATED FOR 125 HP. IT OPERATES WITH A 380-500 VOLT AC INPUT AT A FREQUENCY OF 50/60 HZ. THE DRIVE PROVIDES A RATED OUTPUT CURRENT OF 178 A FOR HEAVY-DUTY APPLICATIONS AND 205 A FOR NORMAL-DUTY APPLICATIONS. ENCASED IN A NEMA TYPE 1 ENCLOSURE, THE UNIT FEATURES AN ALPHANUMERIC KEYPAD FOR LOCAL CONTROL AND CONFIGURATION. SUPPORTED CONTROL MODES INCLUDE V/HZ AND HIGH-PERFORMANCE SENSORLESS VECTOR CONTROL (SVC), WITH PROVISIONS FOR CLOSED-LOOP VECTOR CONTROL THROUGH AN OPTIONAL ENCODER MODULE. INTEGRATED PROTECTION FEATURES ENCOMPASS OVERCURRENT, OVERVOLTAGE, UNDERVOLTAGE, GROUND FAULT, MOTOR OVERLOAD, AND DRIVE OVERTEMPERATURE. STANDARD COMMUNICATION IS FACILITATED VIA MODBUS RTU.
