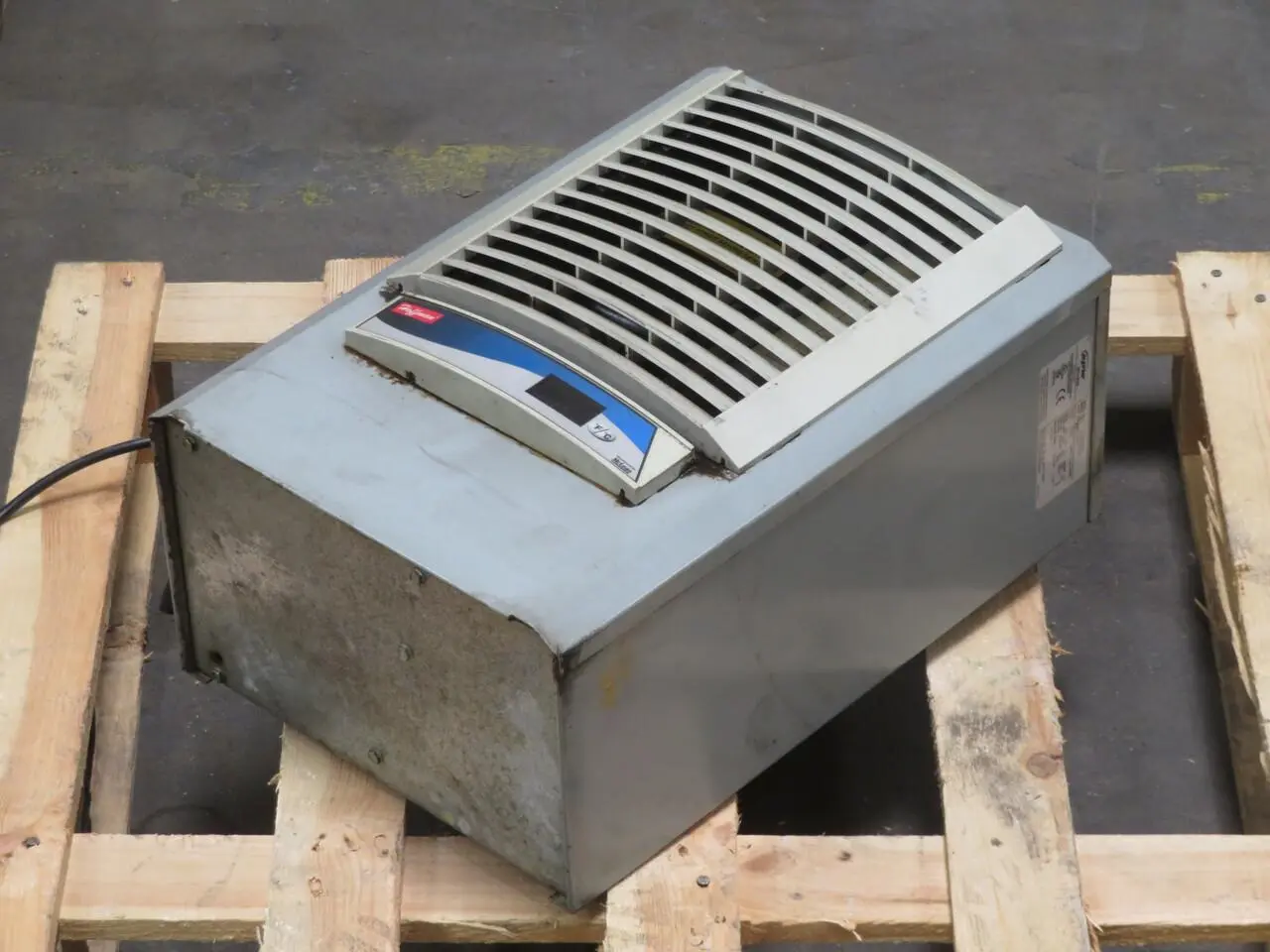

USED MCLEAN M17-0226-G004H

The Mclean M17-0226-G004H is a single-phase air conditioner designed for cabinet cooling applications. It operates on a 220/230 VAC power supply at both 50 Hz and 60 Hz frequencies. The unit provides a cooling capacity of 2,200 Btu/hr, equivalent to 645 watts. Current draw is 1.8 amps at 50 Hz and 1.9 amps at 60 Hz. Its operational ambient temperature range spans from 50°F to 125°F (10°C to 51.7°C). The air conditioner utilizes R134A refrigerant, with a charge of 10 ounces (0.28 kg). Physical dimensions are 25.98 inches high, 10.91 inches wide, and 7.01 inches deep (660 mm H x 277 mm W x 178 mm D). The unit weighs 46 pounds (20.9 kg) and holds a NEMA type 12 rating, indicating suitability for indoor dusttight environments.
