USED LAUDA 630

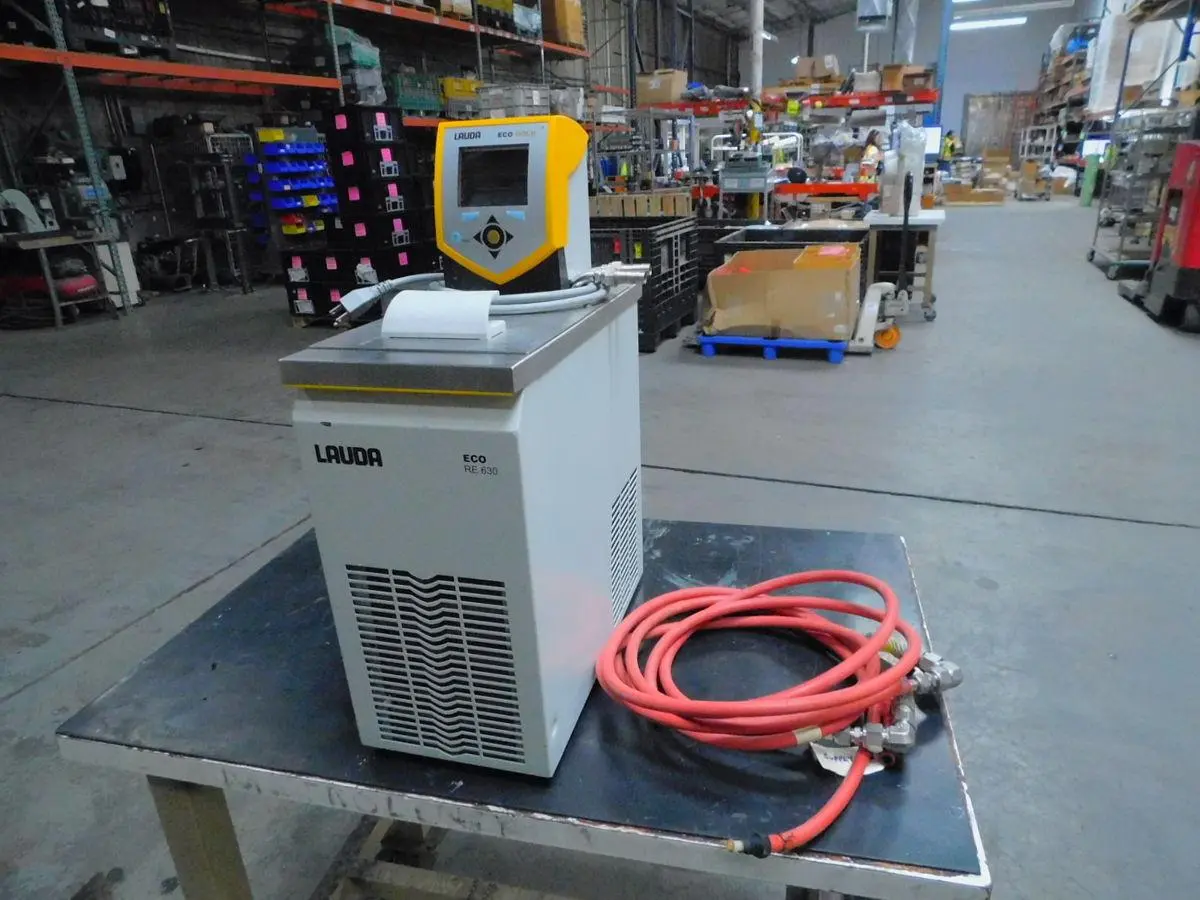

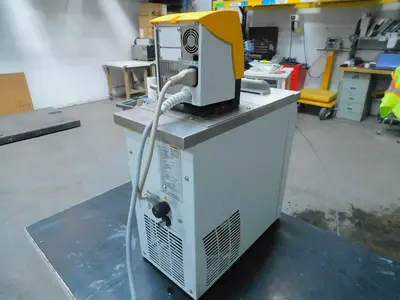

THE LAUDA RE 630 G IS A HEATING/COOLING CIRCULATING WATER BATH DESIGNED FOR PRECISE TEMPERATURE CONTROL. IT OPERATES WITHIN A RATED TEMPERATURE RANGE OF -30 °C TO 200 °C, MAINTAINING A TEMPERATURE STABILITY OF ±0.01 °C. THE UNIT FEATURES A HEATING CAPACITY OF 1.5 KW AND A COOLING CAPACITY RANGING FROM 0.5 KW AT 20 °C DOWN TO 0.05 KW AT -30 °C. ITS INTEGRATED CIRCULATION PUMP DELIVERS A MAXIMUM PRESSURE OF 0.6 BAR AND A MAXIMUM FLOW RATE OF 20 L/MIN. THE STAINLESS STEEL BATH HAS A USABLE VOLUME OF 6.5 LITERS AND A DEPTH OF 150 MM. EXTERNAL DIMENSIONS MEASURE 350 MM IN WIDTH, 480 MM IN DEPTH, AND 670 MM IN HEIGHT. THE SYSTEM UTILIZES R-134A REFRIGERANT AND IS POWERED BY A 120 VAC, SINGLE-PHASE ELECTRICAL SUPPLY.
