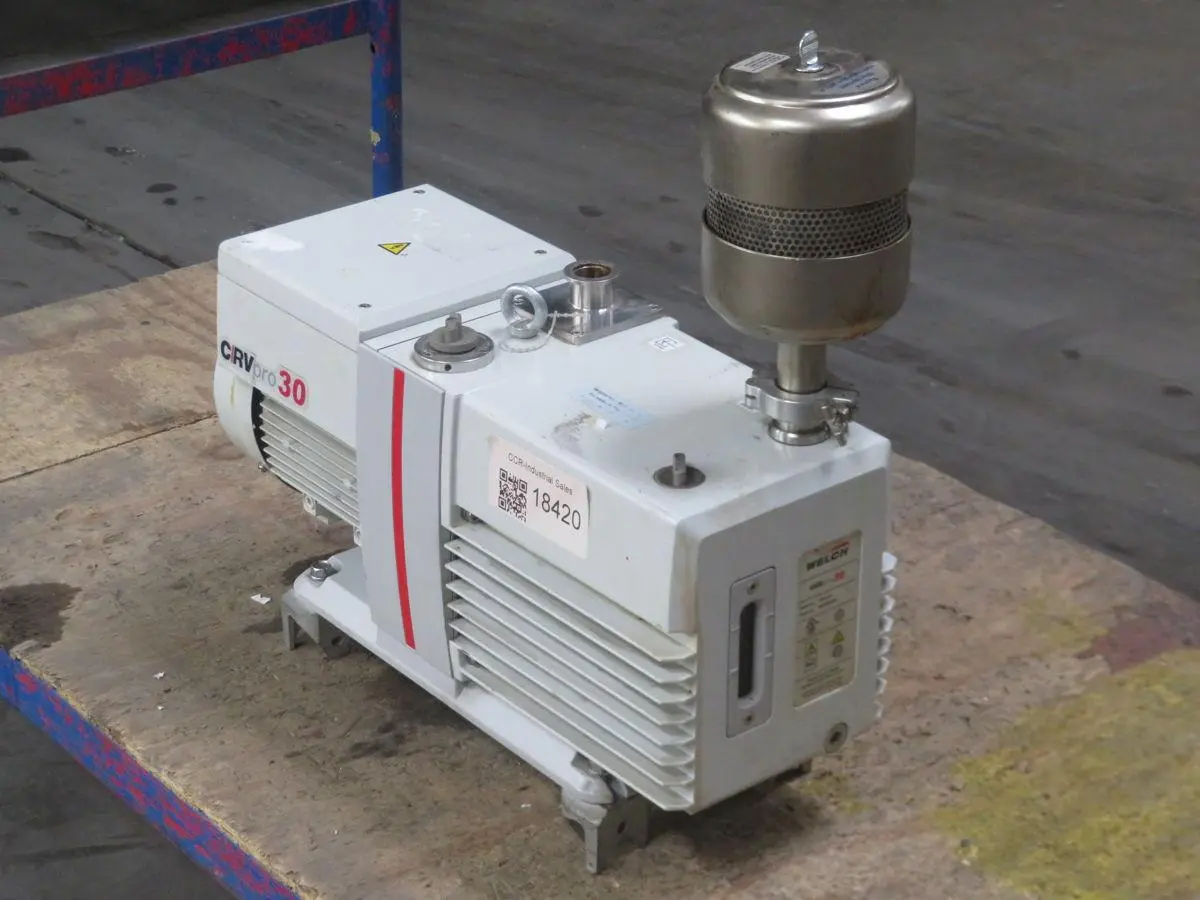

USED WELCH PRO30 3302-01

THE WELCH CRV PRO30 3302-01 IS A ROTARY VANE VACUUM PUMP OPERATING ON A 1-PHASE, 230V 50/60HZ ELECTRICAL SUPPLY. IT PROVIDES A FREE AIR DISPLACEMENT OF 25 M³/H AT 50 HZ AND 30 M³/H AT 60 HZ, ACHIEVING AN ULTIMATE TOTAL PRESSURE OF 2 X 10⁻³ TORR (0.27 PA). THE PUMP IS POWERED BY A 0.75 KW (1 HP) MOTOR. IT FEATURES KF-25 INLET AND OUTLET CONNECTIONS. THE UNIT HAS AN OIL CAPACITY OF 2.2 LITERS AND OPERATES WITH A NOMINAL NOISE LEVEL OF 50 DBA. ITS APPROXIMATE DIMENSIONS ARE 505 MM IN LENGTH, 205 MM IN WIDTH, AND 275 MM IN HEIGHT, WITH A WEIGHT OF 35 KG.
