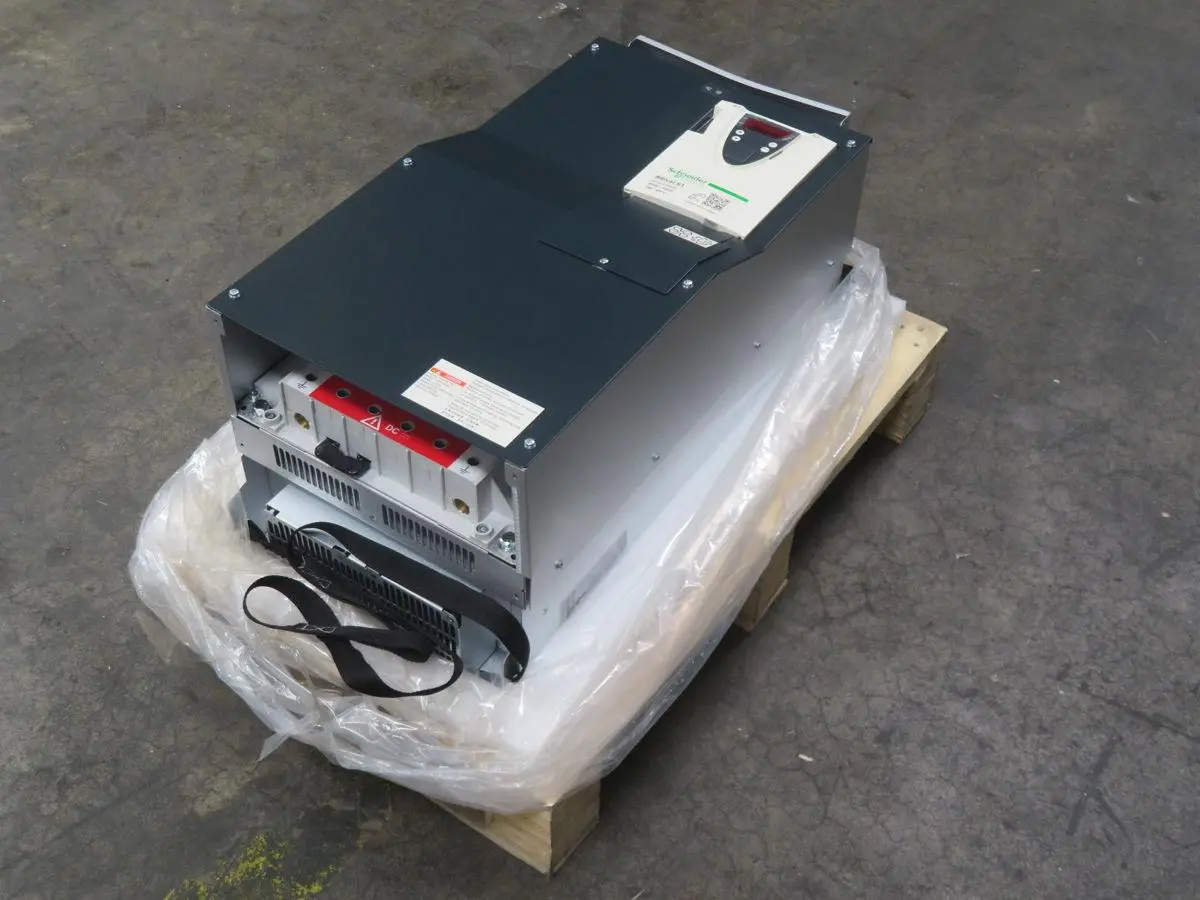

NEW SCHNEIDER ATV61HD45N4Z

THE SCHNEIDER ATV61HD45N4Z ALTIVAR 61 VARIABLE SPEED DRIVE IS A THREE-PHASE INVERTER OPERATING ON A 380-480 V AC SUPPLY AT 50/60 HZ. THIS MODEL DELIVERS 60 HP (45 KW) OUTPUT POWER, WITH A NOMINAL OUTPUT CURRENT OF 83 A AT 380 V AND 71 A AT 480 V. IT INCORPORATES AN INTEGRATED EMC FILTER AND FEATURES AN IP20 ENCLOSURE, SUITABLE FOR INSTALLATION IN ENVIRONMENTS REQUIRING PROTECTION AGAINST SOLID OBJECTS GREATER THAN 12.5 MM. THE DRIVE SUPPORTS PRECISE MOTOR CONTROL THROUGH SENSORLESS FLUX VECTOR CONTROL AND VOLTAGE/FREQUENCY (V/F) RATIO CONTROL. ITS PHYSICAL SPECIFICATIONS INCLUDE DIMENSIONS OF 300 MM WIDTH, 600 MM HEIGHT, AND 273 MM DEPTH, WITH A TOTAL WEIGHT OF 38 KG.
