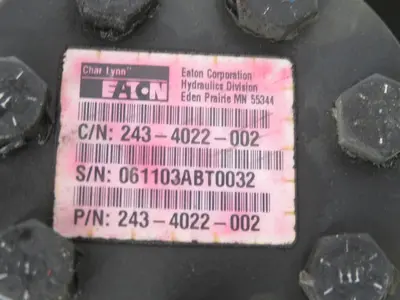

USED EATON 243-4022-002 243-4022-002

THE EATON 243-4022-002 IS A CHAR-LYNN SERIES 2000 ORBITROL HYDRAULIC POWER STEERING VALVE. THIS STEERING UNIT FEATURES A DISPLACEMENT OF 177 CM³/REV (10.8 IN³/REV) AND OPERATES WITH AN OPEN CENTER, NON-LOAD REACTION (OCNR) CIRCUIT. IT IS RATED FOR A MAXIMUM OPERATING PRESSURE OF 172 BAR (2500 PSI) AND SUPPORTS A MAXIMUM FLOW RATE OF 56.8 LPM (15 GPM). PORTING CONSISTS OF #6 SAE O-RING CONNECTIONS FOR PRESSURE AND TANK LINES, AND #10 SAE O-RING CONNECTIONS FOR LEFT AND RIGHT STEERING LINES.
