NEW ANDERSON GREENWOOD M4THIS-4-AMS-SG-SSC

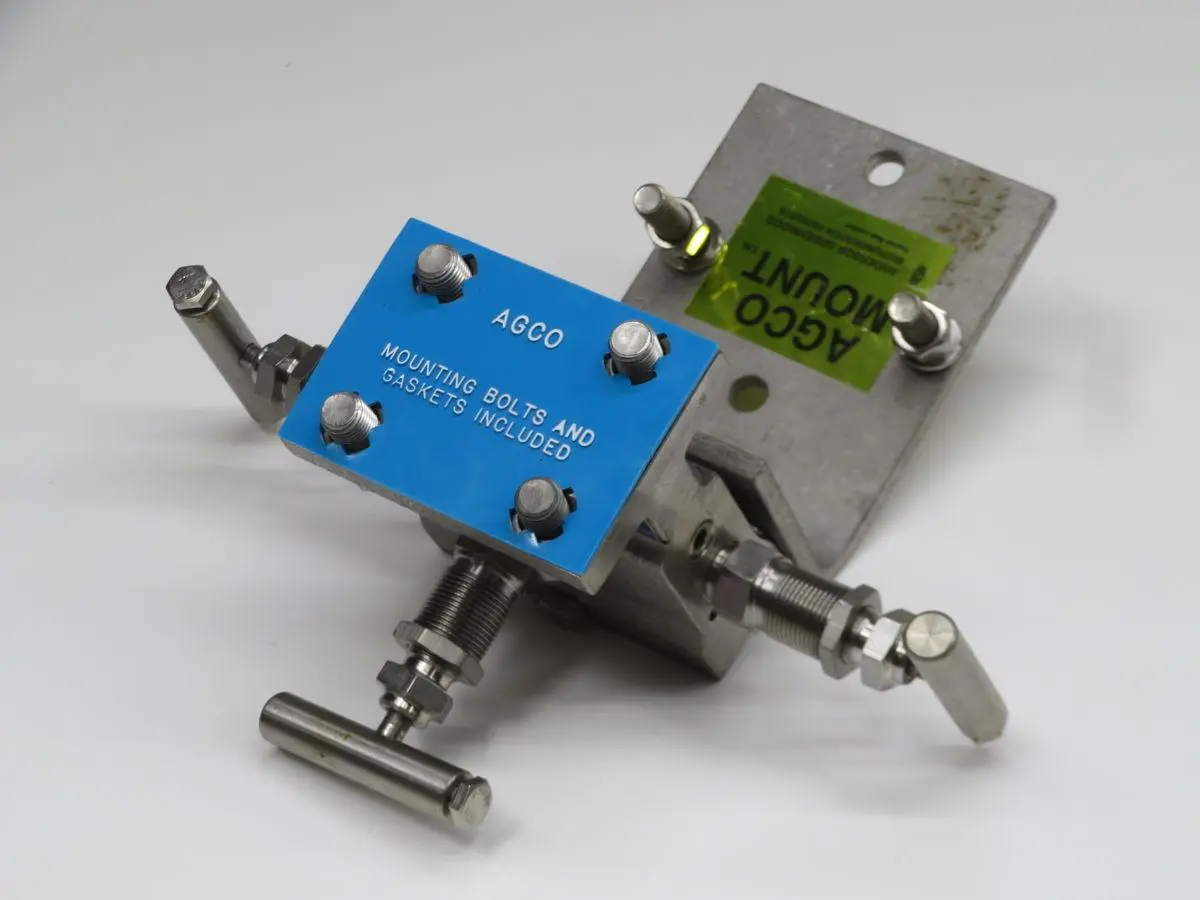

The Anderson Greenwood M4THIS-4-AMS-SG-SSC is a 3-valve direct-mount instrument manifold, specifically engineered for integration with differential pressure transmitters. This manifold features two isolation valves and one equalizing valve, designed for direct flange mounting to transmitters with a standard 2-1/8 inch center-to-center spacing. Constructed from 316 stainless steel, as denoted by "SSC," the unit incorporates graphite stem packing ("SG") and an all-metal stem ("AMS"). It is equipped with 1/2 inch NPT female process connections. This configuration provides a maximum operating pressure of 6000 PSIG (414 bar) at 100°F (38°C) and is rated for temperatures up to 1000°F (538°C) with corresponding pressure reduction.
