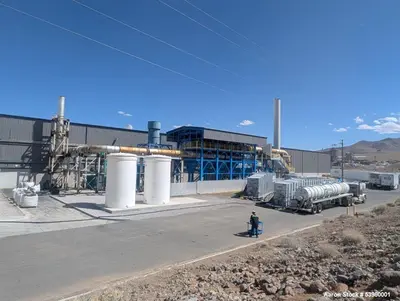

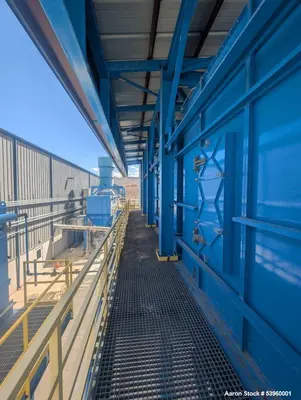

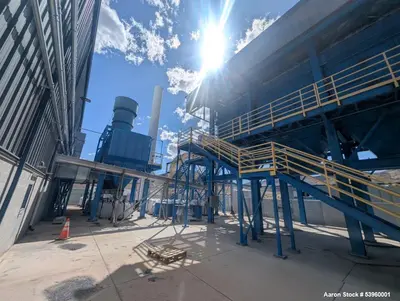

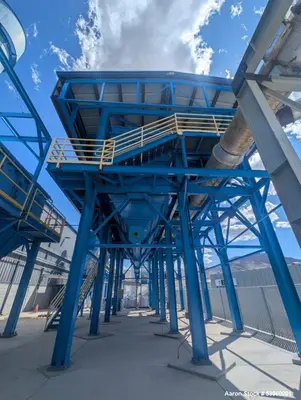

Used Battery Recycling Systems Lead Refining Kettle Air Filtration System – 30,000 CFM, 150 HP Blower, Bag House, BRS/Wirtz
Overview
Description

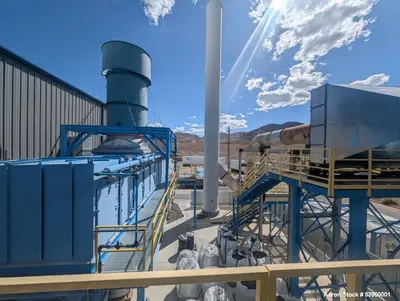

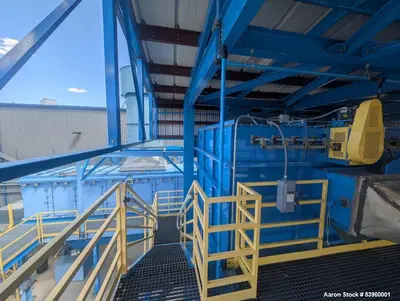

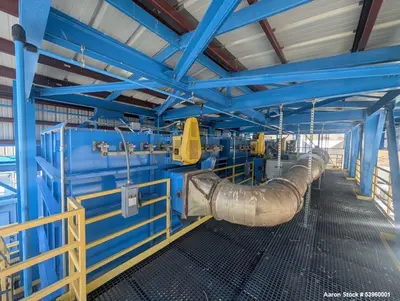

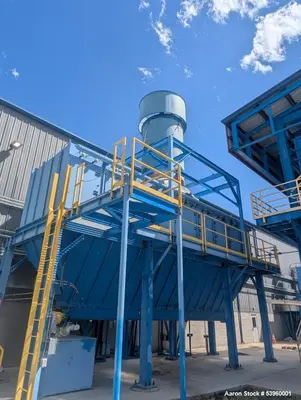

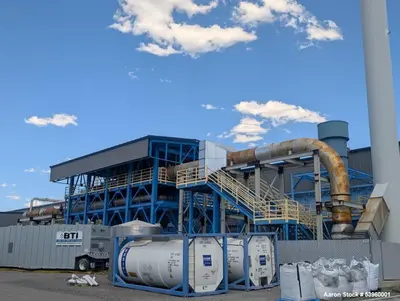

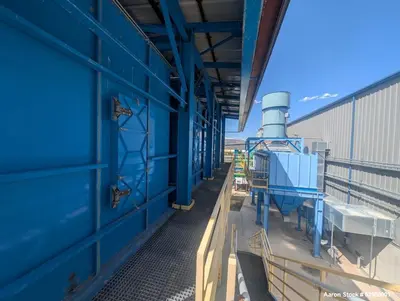

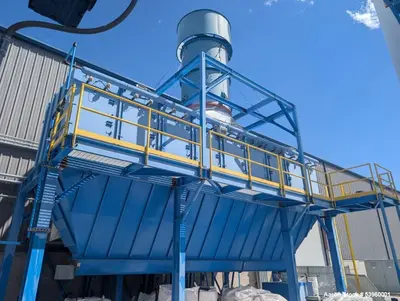

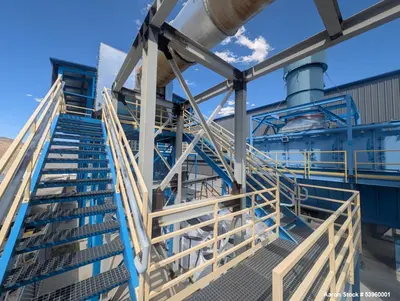

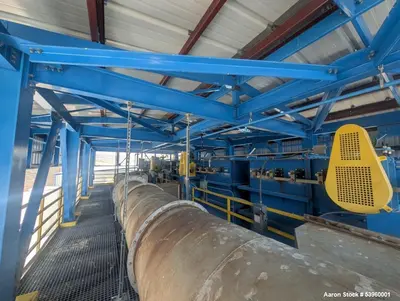

Used Battery Recycling Systems, Inc. a sub-div. of Wirtz. Complete system consisting of a Lead Refining Kettle Air Filtration System. This system captures exhaust and fumes from the lead refining process through a sanitation hood mounted on the refining kettle, directing them into a bag house air filtration unit. The setup features a multi-cell bag house configuration with drop-out boxes, approximately 60 feet of internal plant ducting connected to each kettle's sanitation hood, a specialty air recirculation blower, and an automatic filter bag cleaning system with integrated dust collection. Processed air is discharged via a chimney stack, which must be constructed on-site by the customer per BRS prints due to its size. The system operates on 460V, 3-phase, 60Hz, with 3-wire and 24 VDC control voltage. It includes standard fasteners, uses English units, requires layout approval, and features equipment painted in RAL-5015 (Sky Blue) for carbon steel components and RAL-1018 (Zinc Yellow) for safety guards. NEW YORK BLOWER BC-30 SIZE 36 BC ARR-1 POS-Z CW ROTATION TAU DISCHARGE FLANGED MOTOR; INTEGRAL TE 150HP 1800RPM 3-60-460 PREMIUM EFF. 445T BALDOR, CAPACITIES: 30000 CFM, 18IN WG, 2207RPM, 132BHP, 0.0607 LB/FT^3, 4400FT 70 F.
Specifications
Used Equipment Facts About This Machine
Manufacturer Information
Manufacturer: Battery Recycling Systems, Inc. (a subdivision of Wirtz)
Specialization: Systems and equipment for the environmental control of lead-acid battery manufacturing and recycling operations.
Noted for compliance-driven engineering and tailored ventilation/filtration solutions.
Description
This is a complete used air filtration system originally manufactured by Battery Recycling Systems, Inc., a Wirtz company. It is designed to handle exhaust and airborne contaminants from lead refining kettles using an integrated sanitation hood, air ducting network, and a bag house filtration unit.
The setup includes a multi-cell bag house with drop-out boxes and an automatic filter bag cleaning system with integrated dust collection. The air is pulled through approximately 60 feet of plant ductwork and recirculated by a specialty air blower, with processed air discharged through a chimney stack (to be installed by the buyer per BRS specs).
Electrical system: Operates on 460V, 3-phase, 60 Hz with 3-wire and 24 VDC control voltage. Construction features include RAL-5015 Sky Blue painted carbon steel components and RAL-1018 Zinc Yellow safety guards, using English standard fasteners and units.

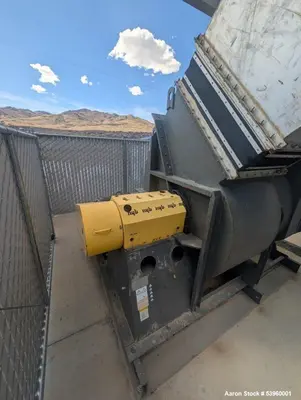

Fan System:
Manufacturer: New York Blower
Model: BC-30 SIZE 36 BC ARR-1 POS-Z CW ROTATION TAU Discharge
Motor: 150 HP Baldor, 1800 RPM, 3-phase, 460V, premium efficiency, frame 445T
Air Capacity: 30,000 CFM, 18” WG pressure, 2207 RPM
Static Pressure: 0.0607 lb/ft³ at 4400 ft elevation, 70°F
Power Consumption: 132 BHP
Specifications
Type: Lead refining kettle air filtration and ventilation system

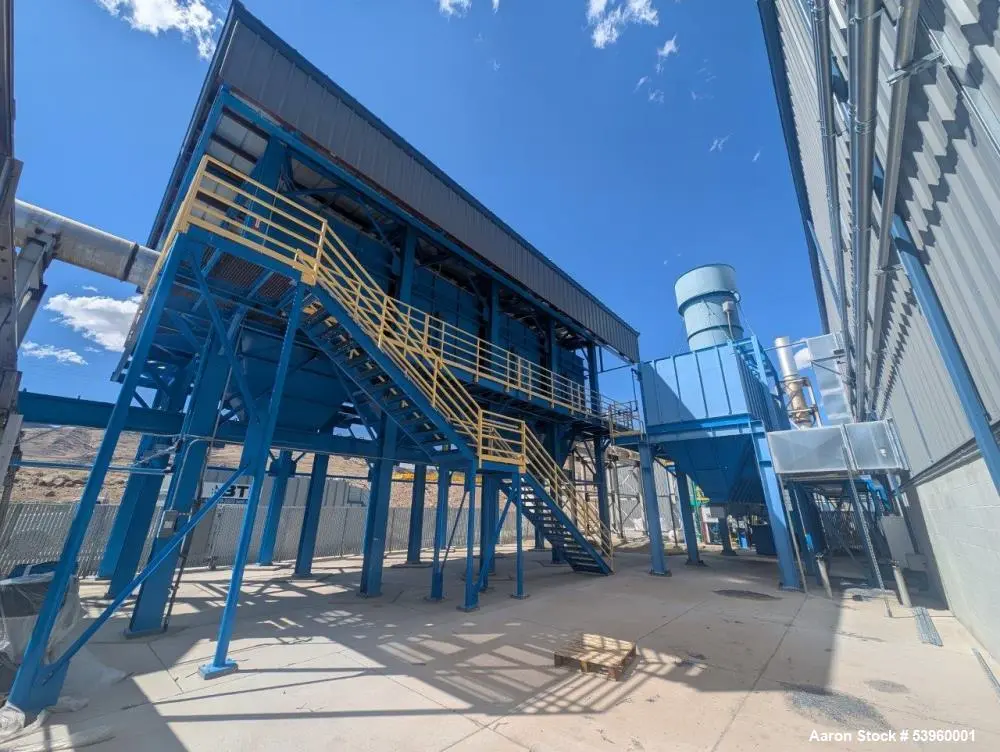

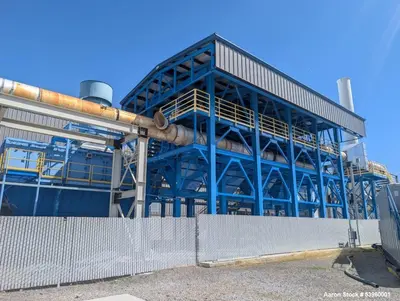

Filtration: Multi-cell bag house with drop-out boxes and filter bag cleaning system
Blower: New York Blower BC-30 SIZE 36 BC, 150 HP, 1800 RPM, TEFC
CFM: 30,000
Static Pressure: 18” WG

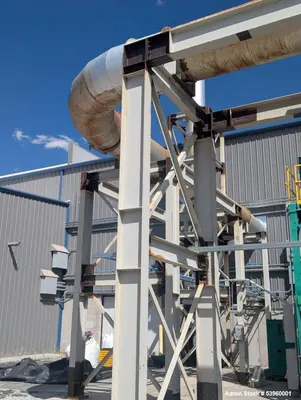

Ducting: Approx. 60 feet, includes sanitation hoods for each kettle

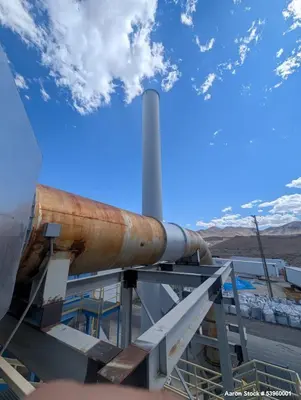

Chimney Stack: Required on-site installation per BRS specifications
Paint Scheme:
RAL-5015 (Sky Blue) – Carbon steel
RAL-1018 (Zinc Yellow) – Safety guards
Control Voltage: 24 VDC
Power: 460V, 3-phase, 60Hz, 3-wire
Construction: English fasteners and measurement standards

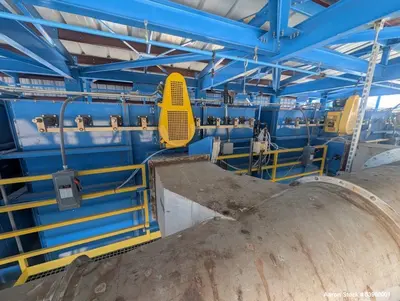

Control: Integrated automatic filter bag cleaning
Applications
Lead refining exhaust control
Battery recycling plant emission systems
Heavy metal fume extraction
Foundry kettle exhaust handling
Metal smelting emissions management
Industrial air filtration for metal refining
Environmental compliance in metal operations
Dust and fume capture in high-temperature refining
OSHA and EPA emission standard compliance
Battery industry HVAC and filtration solutions
What Products Would This Be Used For?
Lead ingots
Recycled battery lead
Refined molten lead
Lead-based solder materials
Battery plate materials
Lead oxide
Smelting plant air quality systems
Furnace byproducts
Heavy metal particulates
High-density dust streams
