USED 2016 QUICKSTEP ANTICORRO 1,900 LITRE

Very little used Quickstep Anticorro stainless steel reactor.

Vessel:
- Manufacturer: Quickstep Anticorro
- Total/working volume: approx 2897 / 1900 liters
- Designed material: Stainless steel AISI 304

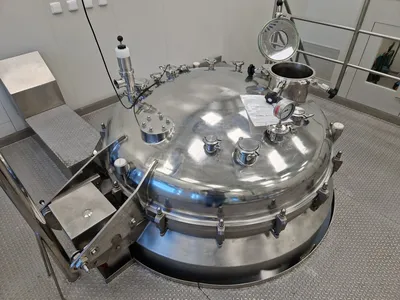

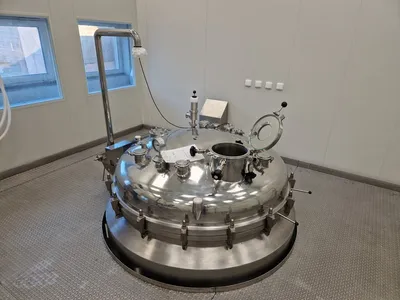

- Design type: Clamped dished and hinged top and welded dished bottom
- Dimensions: approx 1706 mm diameter x 2471 mm height (3580 mm height with lid open)
- Maximum pressure and temperature of the vessel: -1/1 bar at 0 to 100°C
- Maximum pressure and temperature of jacket: -1/2,5 bar at 0 to 135°C

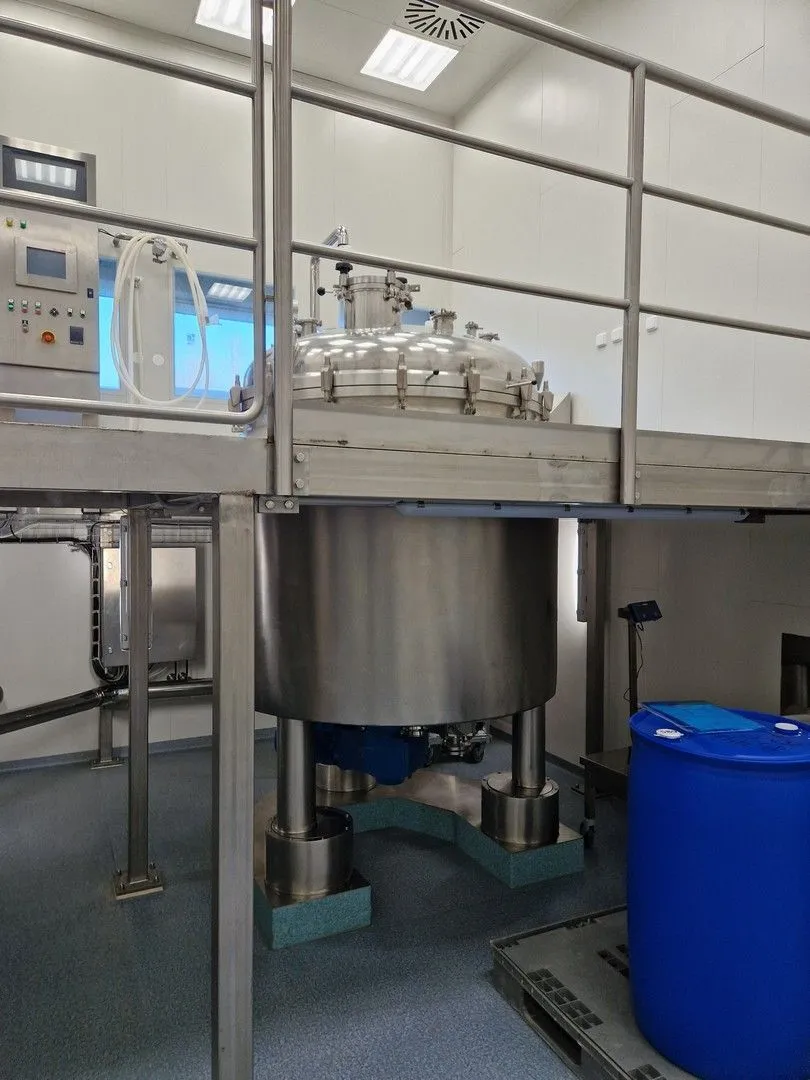

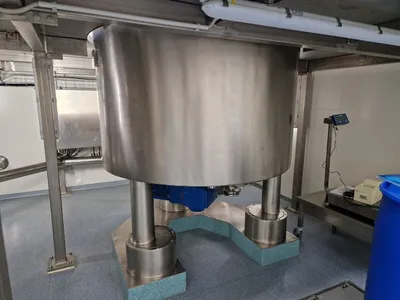

- Mounted on stainless steel legs.

Agitator:

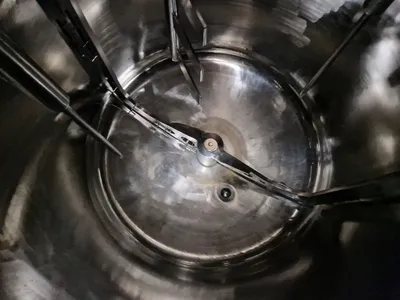

- Bottom entry frame agitator MIX Brno model 60 MP 30
- The agitator is designed for mixing creams, gels and ointments with a maximum weight of 1100 kg/m3, maximum viscosity 10000 cP at a temperature up to 100°C and maximum particle size 10 - 80 μm.

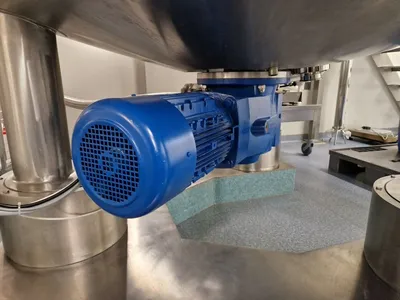

- Drive through NORD gear drive 7.5 kW, 1460 rpm, 50 Hz - final rpms of the agitator at 50 Hz is 42 rpm.
