USED PAUL O ABBE 108 RCVD

Manufacturer Information

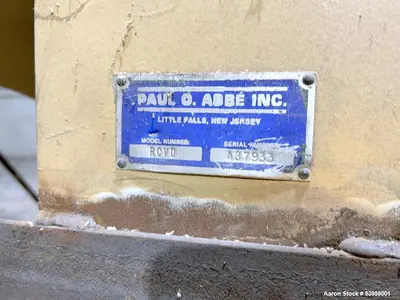

Manufacturer: Paul O. Abbe

Model: 108 RCVD

Known for precision vacuum drying and mixing equipment used in chemical, pharmaceutical, and food processing industries.

Description

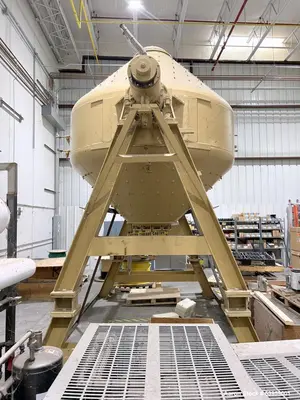

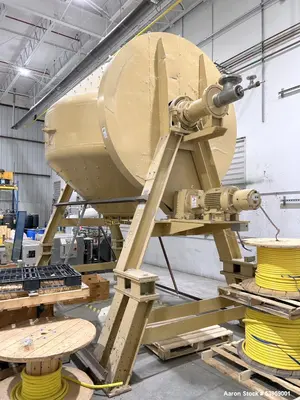

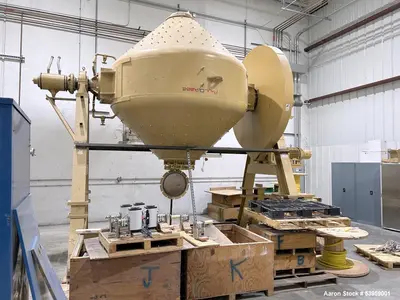

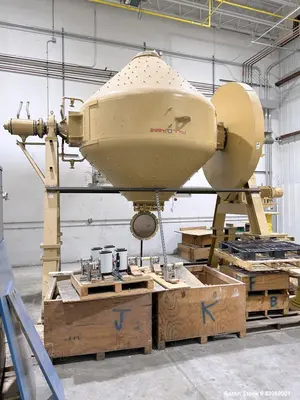

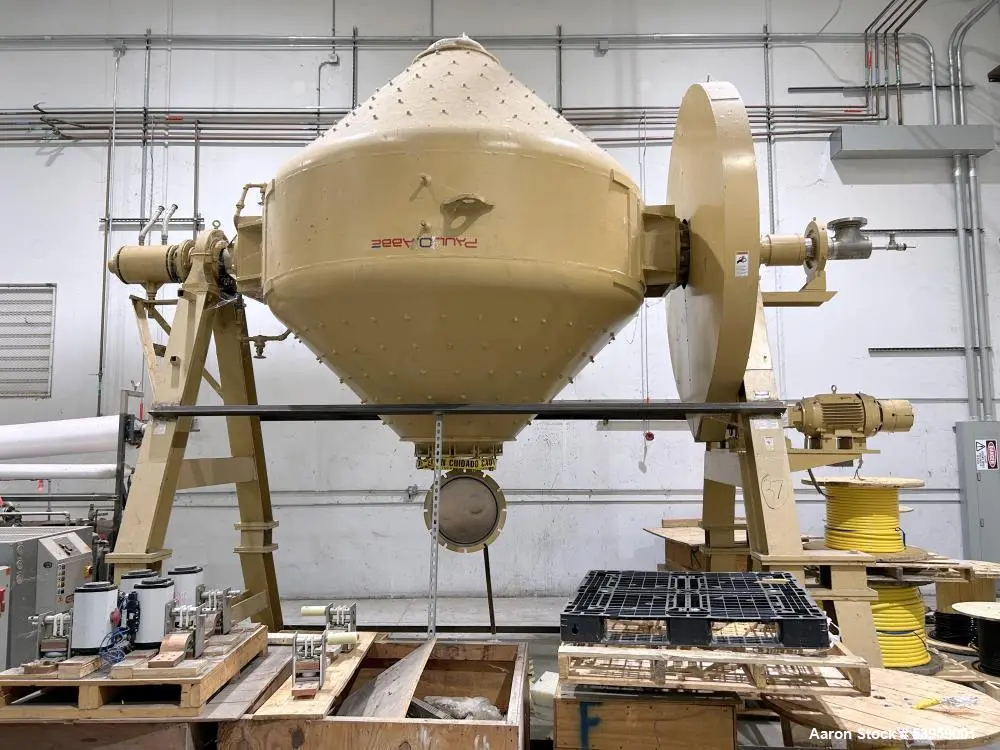

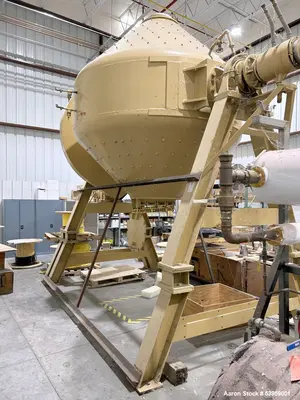

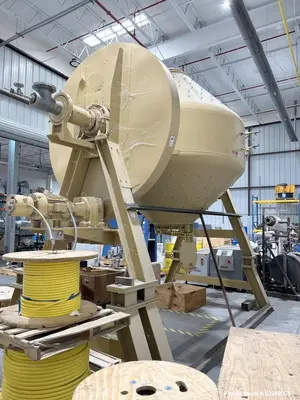

This used Paul O. Abbe Model 108 RCVD Rota-Cone Vacuum Dryer features a 240 cubic feet working capacity and 365 cubic feet total capacity. The vessel is constructed of 304 stainless steel with a #4 polished interior. It includes a carbon steel jacket rated to 40 psi at 500°F, suitable for high-pressure, high-temperature vacuum drying applications. Internal ratings are 30 psi at 500°F, full vacuum capable. It includes a 20" diameter top port and 12" bottom outlet, and is driven by a 10 HP gear motor with brake, operating at a 82.6:1 ratio and delivering approx. 4 RPM.

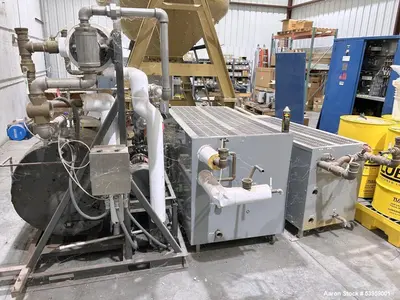

Mounted on carbon steel stands, this unit comes complete with a control panel, Wintek vacuum pump skid, Mokon chiller, and Mokon hot water circulating unit.
A 2016 refurbishment included critical upgrades: new vacuum and spray lines, oil feed box, bearings, gear system, gearmotor, gear guard, and polished product contact surfaces to 180 grit.
Ideal for precise, uniform drying under vacuum conditions in regulated manufacturing environments.

Specifications

Model: 108 RCVD

Construction: 304 stainless steel internal; carbon steel jacket

Working Capacity: 240 cu ft

Total Capacity: 365 cu ft

Pressure Rating (Internal): 30 psi @ 500°F, full vacuum

Pressure Rating (Jacket): 40 psi @ 500°F coincident with full vacuum

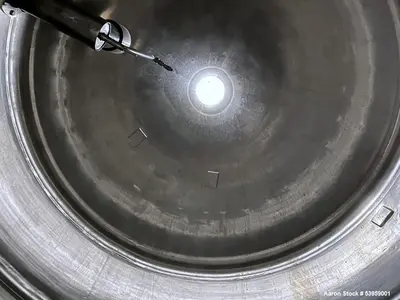

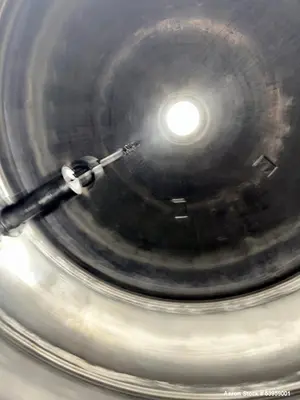

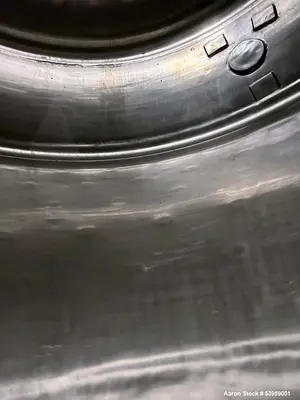

Interior Finish: #4 polish, refurbished to 180 grit

Top Port: 20" diameter with cover

Bottom Outlet: 12" center outlet

Drive Motor: 10 HP, 3/60/230/460V, gear motor with brake

Gear Ratio: 82.6:1

Cone RPM: Approx. 4 RPM

Included Equipment:

Control Panel

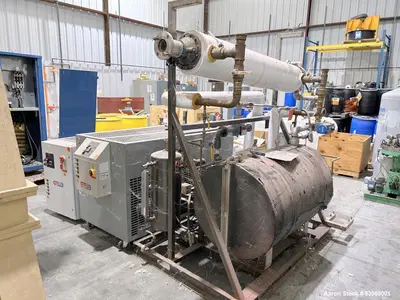

Wintek Vacuum Pump Skid

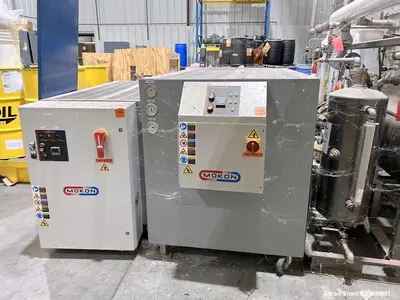

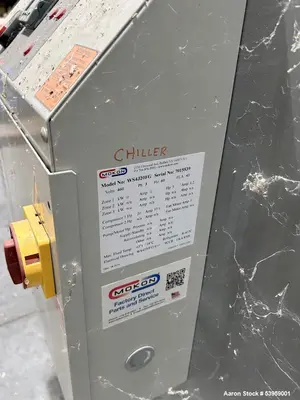

Mokon Chiller

Mokon Hot Water Circulating Unit

Refurbishment (2016):

New vacuum and spray lines

New oil feed box, drive/idler bearings

New gear wheel, pinion gear, gear guard

New gearmotor with brake

Re-polished internal surfaces (180 grit)

Dimensions: 260" L x 120" W x 170" H

Weight: Approx. 18,000 lbs

Applications

Vacuum drying of heat-sensitive materials

Pharmaceutical powder drying

Chemical powder and crystal drying

Nutraceutical blending and drying

High-purity specialty chemicals processing

Pilot-scale vacuum processing

Food product drying (e.g., milk powder, extracts)

Metal powder dehydration

Bulk powder blending under vacuum

Controlled drying of hazardous or volatile compounds

What Products Would This Be Used For?

Pharmaceutical APIs

Nutraceutical powders

Chemical crystals

Food flavoring powders

Cosmetic ingredients

Catalyst drying

Metal oxides and powders

Pigments and dyes

Polymer granules

Herbal extracts
