USED GE MK-3 3019296

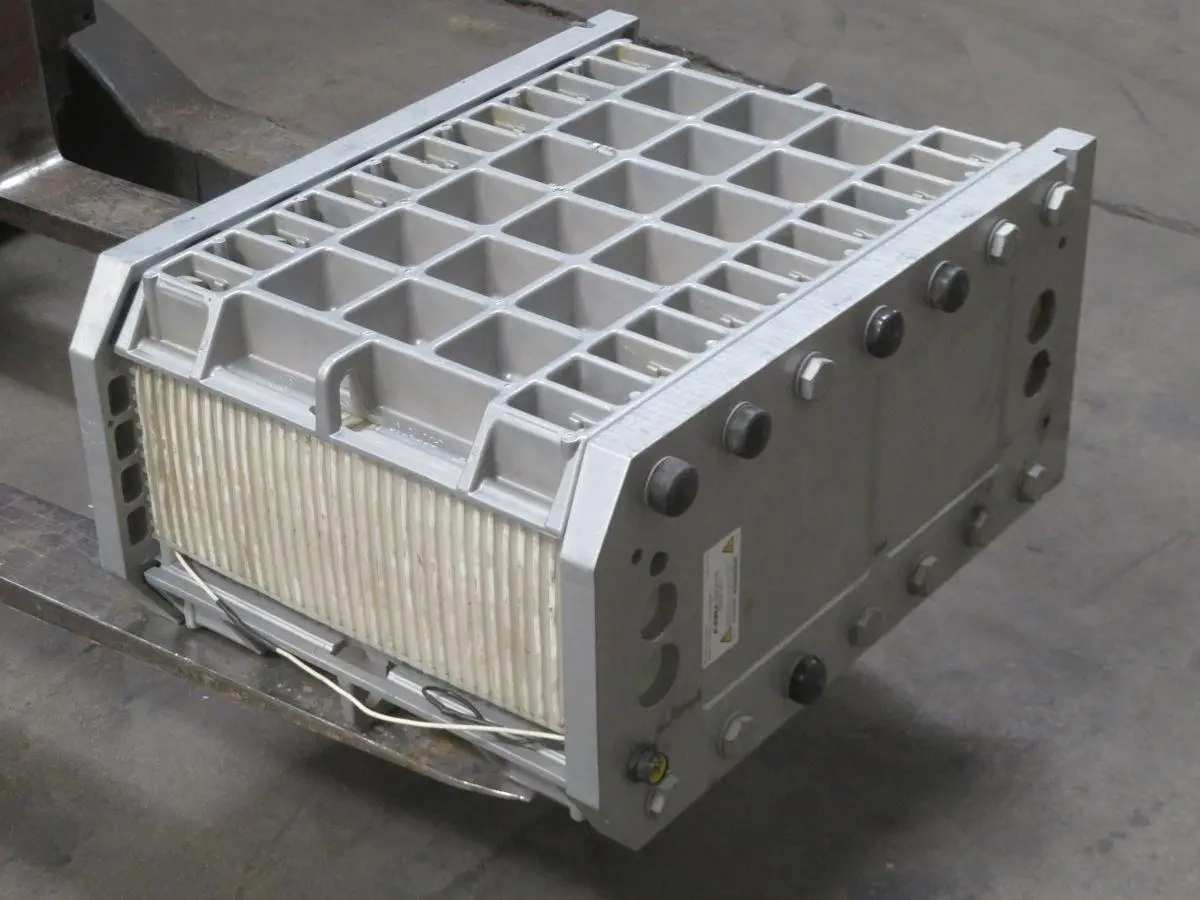

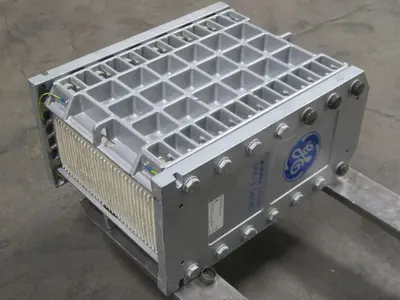

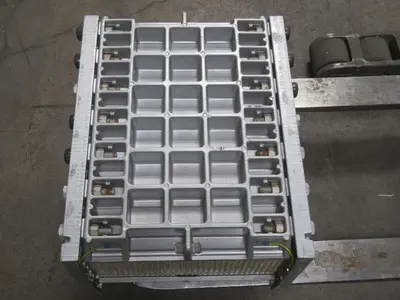

THE GE E-CELL MK-3X 3019296 IS AN ELECTRODEIONIZATION (EDI) STACK DESIGNED FOR CONTINUOUS DEIONIZATION IN WATER FILTRATION APPLICATIONS. THIS MODULE PROVIDES ULTRAPURE WATER WITH A TYPICAL RESISTIVITY RANGE OF 16 TO 18 MΩ·CM. IT OPERATES WITH A MAXIMUM PRODUCT FLOW RATE OF 3.4 M³/HR (15 GPM) AND A MINIMUM PRODUCT FLOW RATE OF 1.7 M³/HR (7.5 GPM). THE STACK IS RATED FOR A MAXIMUM OPERATING PRESSURE OF 6.9 BAR (100 PSI) AND A MAXIMUM OPERATING TEMPERATURE OF 45°C (113°F). FEED WATER REQUIREMENTS INCLUDE A MAXIMUM CONDUCTIVITY OF 40 ΜS/CM, MAXIMUM HARDNESS OF 1.0 PPM AS CACO3, MAXIMUM SILICA OF 1.0 PPM, AND MAXIMUM TOC OF 0.5 PPM. THE UNIT HAS NOMINAL DIMENSIONS OF 396 MM (15.6 IN) IN HEIGHT, 318 MM (12.5 IN) IN WIDTH, AND 831 MM (32.7 IN) IN LENGTH, WITH AN APPROXIMATE WEIGHT OF 73 KG (160 LBS). ELECTRICAL OPERATION TYPICALLY REQUIRES 0-300 VDC AND 0-10 AMPS, DEPENDENT ON FEED WATER QUALITY AND FLOW.
