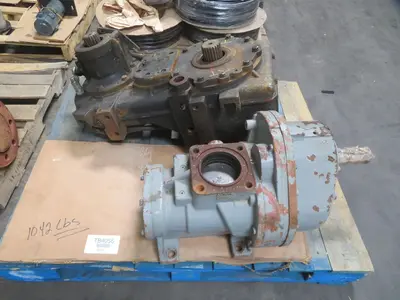

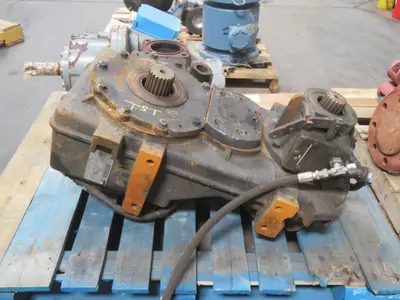

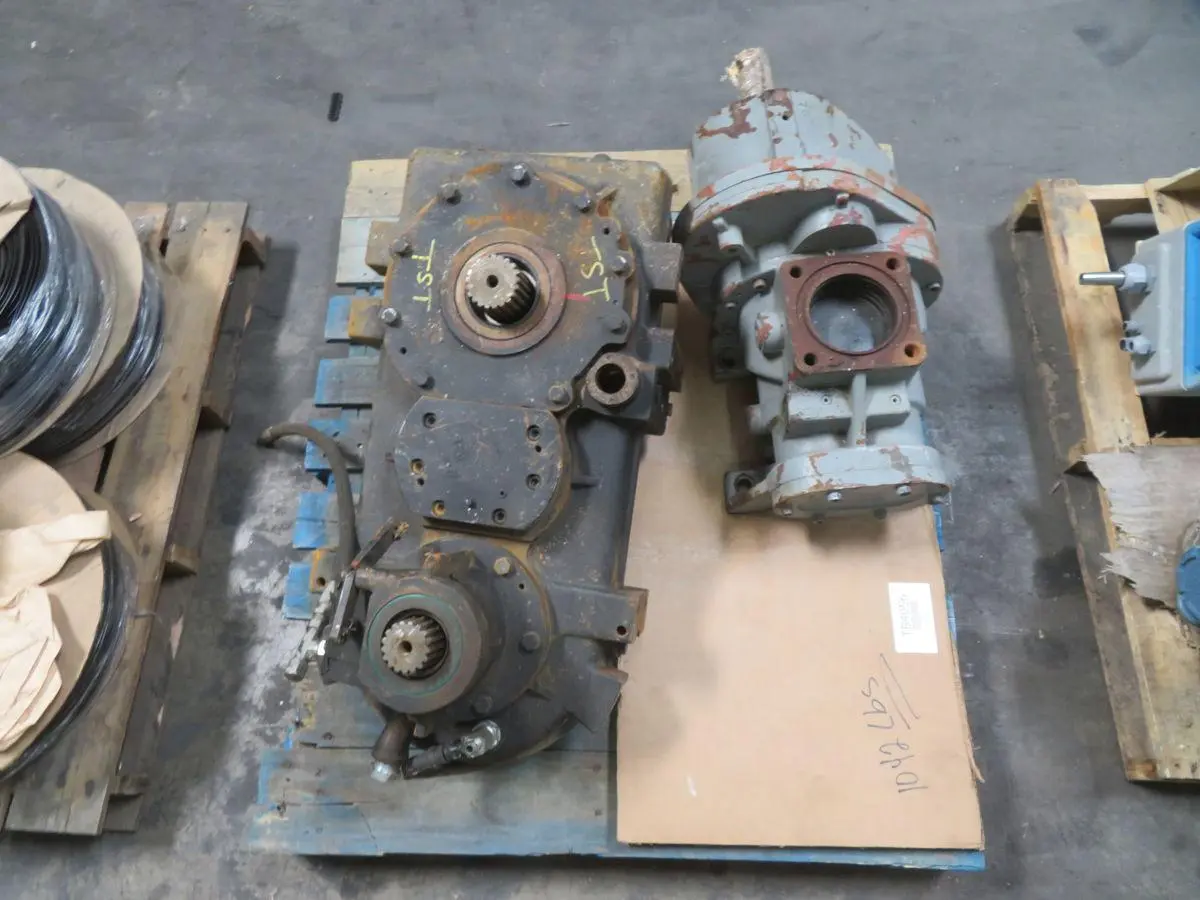

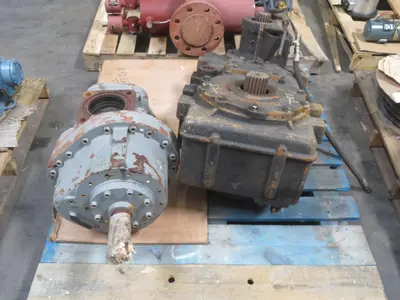

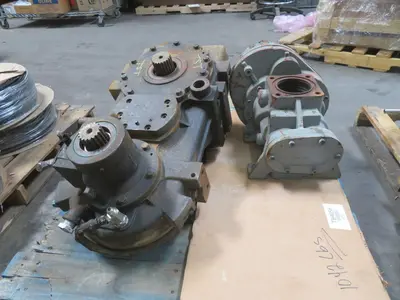

USED COTTA TST0283

The Cotta TST0283 is a heavy-duty transfer case engineered for severe-duty applications, featuring a single-speed design with a single input and multiple output capabilities. This unit supports an input torque capacity of up to 13,000 lb-ft (17,625 Nm) and an input speed of up to 2500 RPM. Available gear ratios include 1:1, 1:1.24, 1:1.48, 1:1.8, 1:2.0, 1:2.2, 1:2.4, 1:2.6, 1:2.8, and 1:3.0. Its robust construction includes a cast iron housing and a pressurized lubrication system. The TST0283 is designed for direct engine or mid-ship mounting, commonly featuring two, three, or four outputs with SAE flange connections. It is suitable for vocational trucks, off-highway equipment, railcar movers, and airport ground support vehicles.
