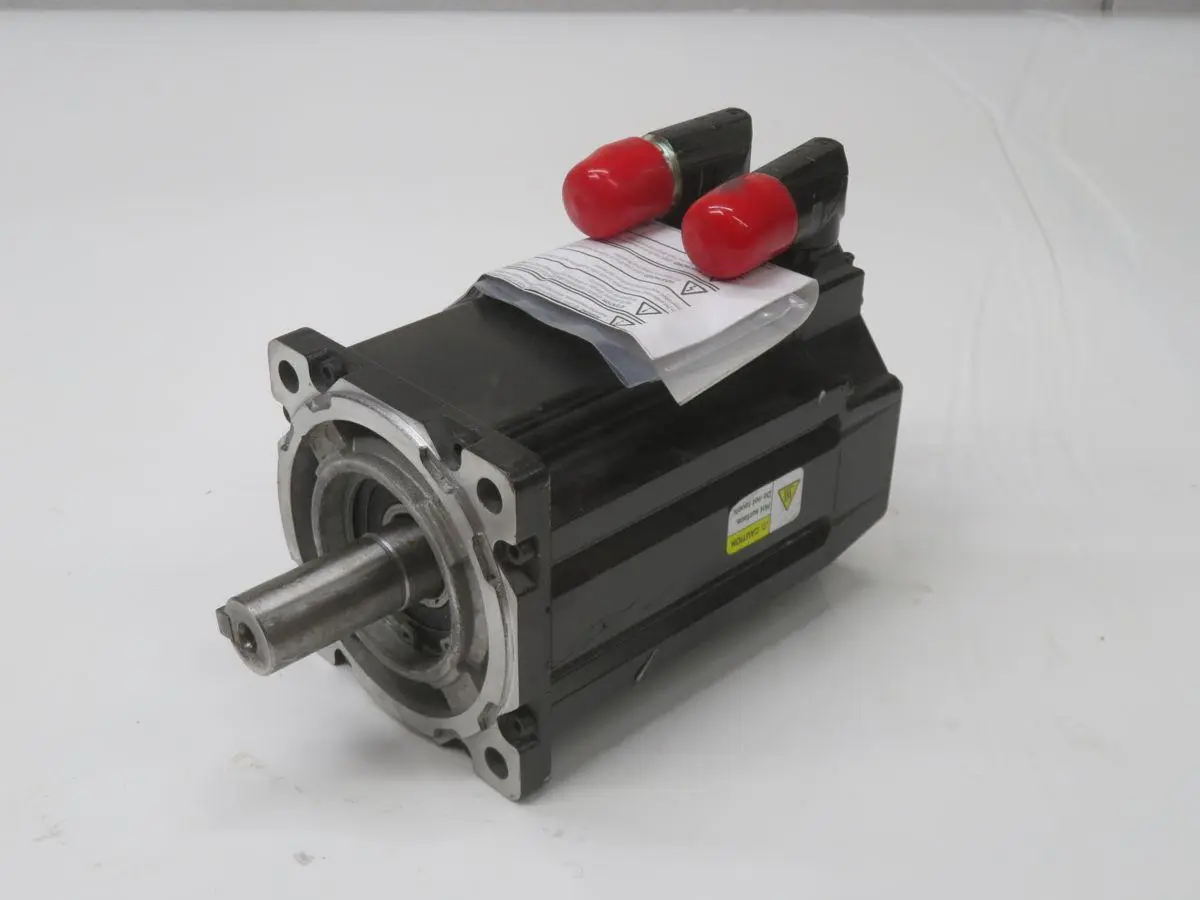

USED ALLEN BRADLEY MPL-A4530K-MJ72AA 11224

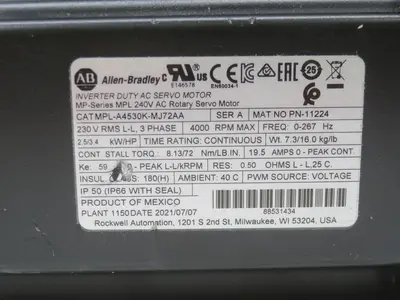

THE ALLEN BRADLEY MPL-A4530K-MJ72AA IS AN MP-SERIES LOW-INERTIA BRUSHLESS AC SERVO MOTOR DESIGNED FOR HIGH-PERFORMANCE AUTOMATION APPLICATIONS REQUIRING RAPID ACCELERATION AND DECELERATION. THIS 3-PHASE MOTOR OPERATES AT 230 VAC AND DELIVERS A CONTINUOUS POWER OUTPUT OF 3.4 HP (2.5 KW). KEY SPECIFICATIONS INCLUDE A RATED TORQUE OF 10.9 NM, A PEAK TORQUE OF 32.7 NM, A RATED SPEED OF 3000 RPM, AND A MAXIMUM SPEED OF 5000 RPM. ELECTRICAL CHARACTERISTICS FEATURE A RATED CURRENT OF 10.0 A AND A PEAK CURRENT OF 30.0 A. IT INCORPORATES A 262,144 COUNT ABSOLUTE MULTI-TURN ENCODER FOR PRECISE POSITION FEEDBACK. THE MOTOR FEATURES A 4-INCH (100MM) FRAME, A KEYED SHAFT, AND IS CONFIGURED WITHOUT AN INTEGRAL BRAKE. CONNECTIVITY IS MANAGED VIA SPEEDTEC DIN CONNECTORS, PROVIDING AN IP65/67 INGRESS PROTECTION RATING.
