USED 2015 CLEAVER BROOKS CBLE-200-350-150ST

OVERVIEW

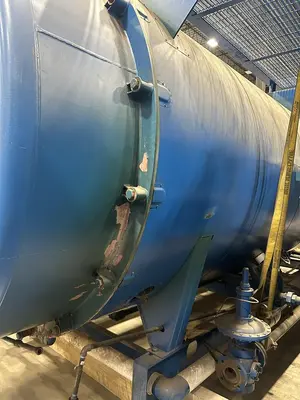

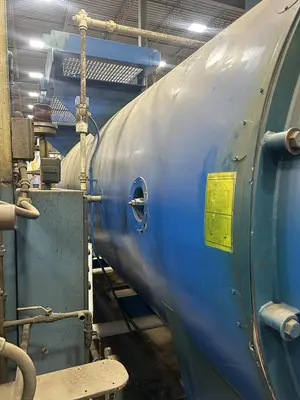

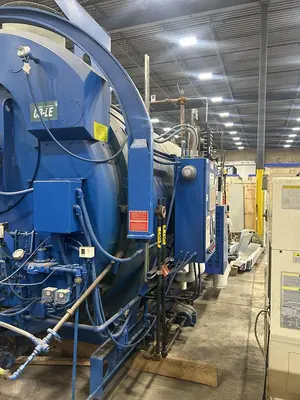

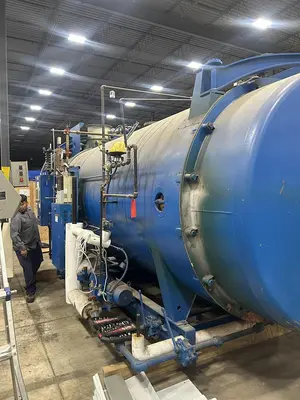

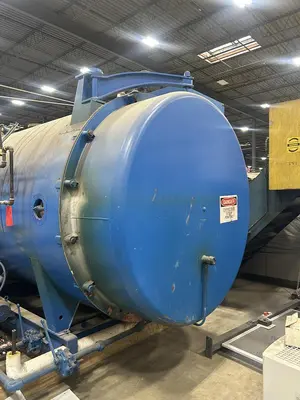

This is a Cleaver Brooks Model CBLE 200-350-150ST packaged firetube steam boiler, rated 350 boiler horsepower. Factory-built by Cleaver Brooks, Thomasville, Georgia, USA, in 2015. Dual-fuel design, fired on natural gas or No. 2 oil, with a low NOx emission rating of 30 PPM. Maximum working pressure 150 PSI steam.
This unit has been refurbished and fitted with new, updated controls, including an Allen-Bradley PowerFlex 400 variable frequency drive and a Hawk touchscreen burner management/control interface. It is a top-of-the-line configuration within the CBLE product line, combining the original Cleaver Brooks pressure vessel and burner assembly with modernized electronic controls. Ready for inspection, contact us to schedule.

EQUIPMENT SPECIFICATIONS

Boiler:

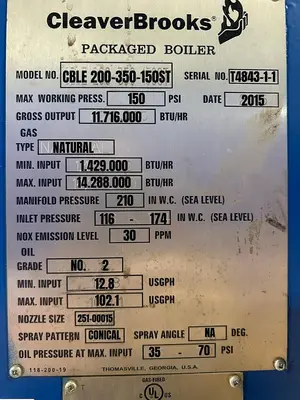

Manufacturer: Cleaver Brooks, Thomasville, GA, USA

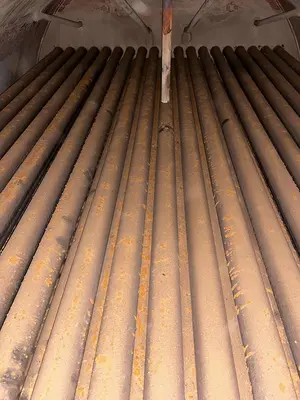

Equipment Type: Packaged Firetube Gas/Oil-Fired Steam Boiler
Model: CBLE 200-350-150ST
Boiler Horsepower: 350 HP
Maximum Working Pressure: 150 PSI Steam
Gross Output: 11,716,000 BTU/HR
Serial No.: T4843-1-1
Date of Manufacture: 2015
Fuel Type: Dual Fuel, Natural Gas or No. 2 Oil
Listing: UL-Listed Gas-Fired Boiler Assembly


Gas Firing Data:

Gas Type: Natural
Minimum Input: 1,429,000 BTU/HR
Maximum Input: 14,288,000 BTU/HR
Manifold Pressure: 210 in. W.C. (sea level)
Inlet Pressure: 116–174 in. W.C. (sea level)
NOx Emission Level: 30 PPM


Oil Firing Data:

Oil Grade: No. 2
Minimum Input: 12.8 USGPH
Maximum Input: 102.1 USGPH
Nozzle Size: 251-00015
Spray Pattern: Conical
Oil Pressure at Maximum Input: 35–70 PSI


Controls and Upgrades:

Refurbished unit with new, updated controls

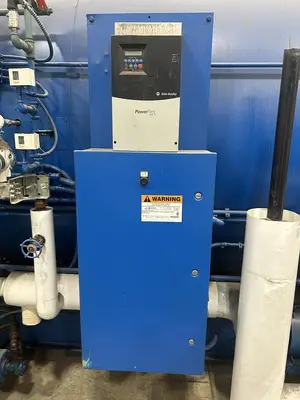

Allen-Bradley PowerFlex 400 variable frequency drive (combustion air blower)

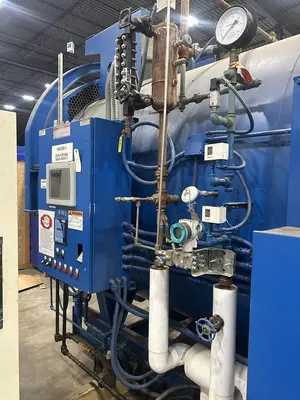

Hawk touchscreen burner control interface (labeled Boiler 3, B-03)

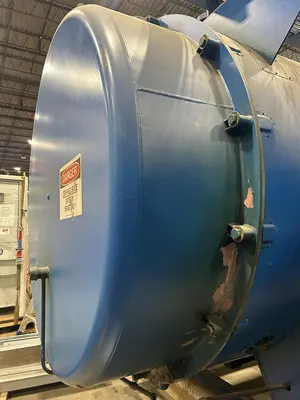

Confined space / permit-required access points per OSHA labeling


KEY FEATURES AND BENEFITS

Top-of-the-line Cleaver Brooks CBLE packaged firetube design
350 HP, 150 PSI steam rating
Low NOx emissions (30 PPM)
Dual fuel flexibility, natural gas or No. 2 oil
Refurbished with new, updated electronic controls (Allen-Bradley PowerFlex 400 VFD, Hawk touchscreen interface)
UL-listed gas-fired boiler assembly


SYSTEM COMPONENTS

Boiler: CBLE 200-350-150ST, 350 HP, built 2015, 150 PSI max working pressure

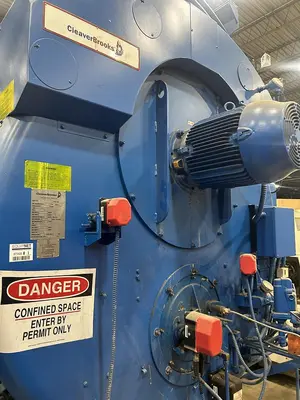

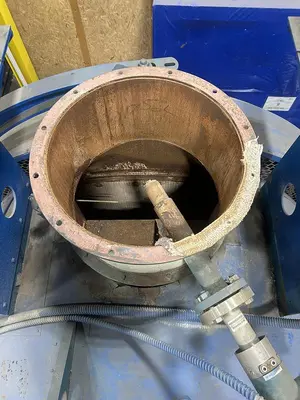

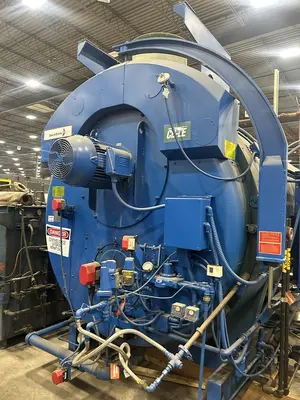

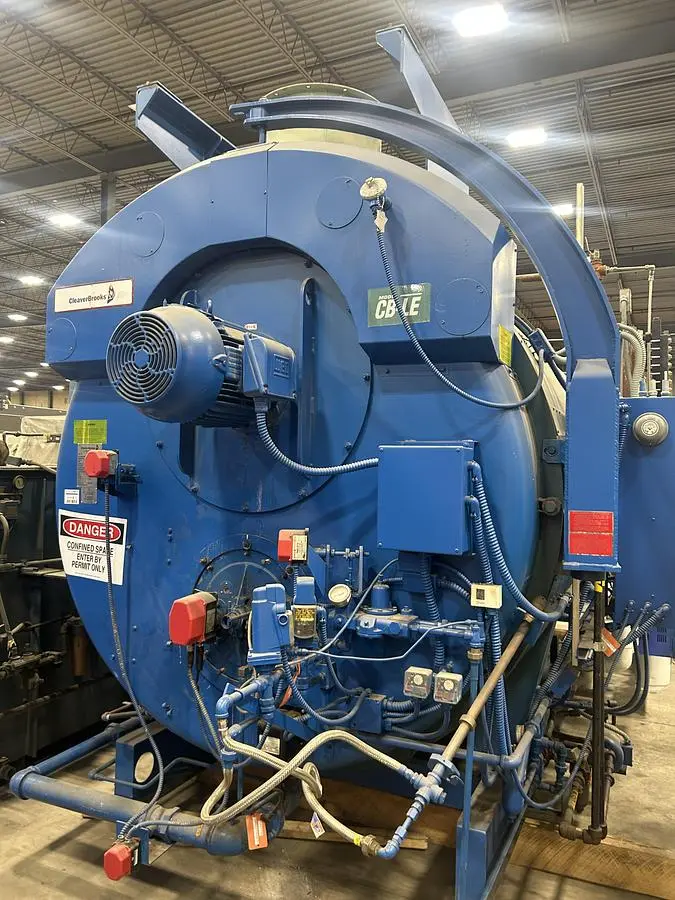

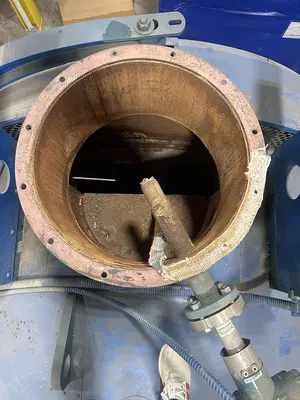

Burner: Integral Cleaver Brooks gas/oil burner, WEG blower motor
Controls: Allen-Bradley PowerFlex 400 VFD, Hawk touchscreen control panel

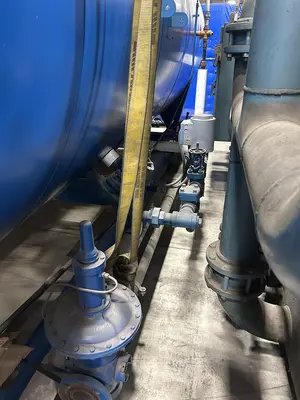

Trim: Steam pressure gauge, water column, safety and control valving


SPECIFICATIONS SUMMARY

Manufacturer: Cleaver Brooks
Model: CBLE 200-350-150ST
Boiler Horsepower: 350 HP
Maximum Working Pressure: 150 PSI Steam
Gross Output: 11,716,000 BTU/HR
Fuel Type: Dual Fuel (Natural Gas / No. 2 Oil)
NOx Emission Level: 30 PPM
Serial No.: T4843-1-1
Year Built: 2015
Condition: Refurbished, new updated controls


ADDITIONAL INFORMATION

Condition: Refurbished, fitted with new updated controls
Manufacturer: Cleaver Brooks, Thomasville, GA
Model: CBLE 200-350-150ST, 350 HP
Year Built: 2015
Rated: 150 PSI, low NOx (30 PPM)
Inspection: Welcome, contact us to schedule
