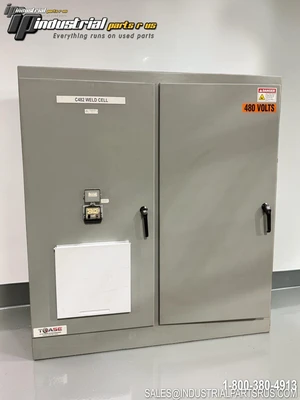

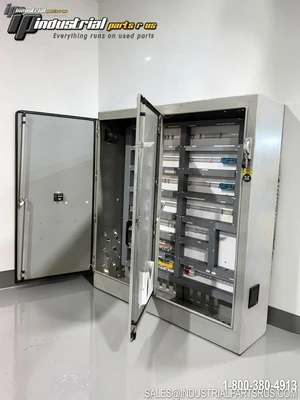

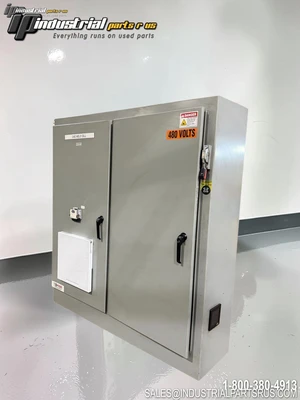

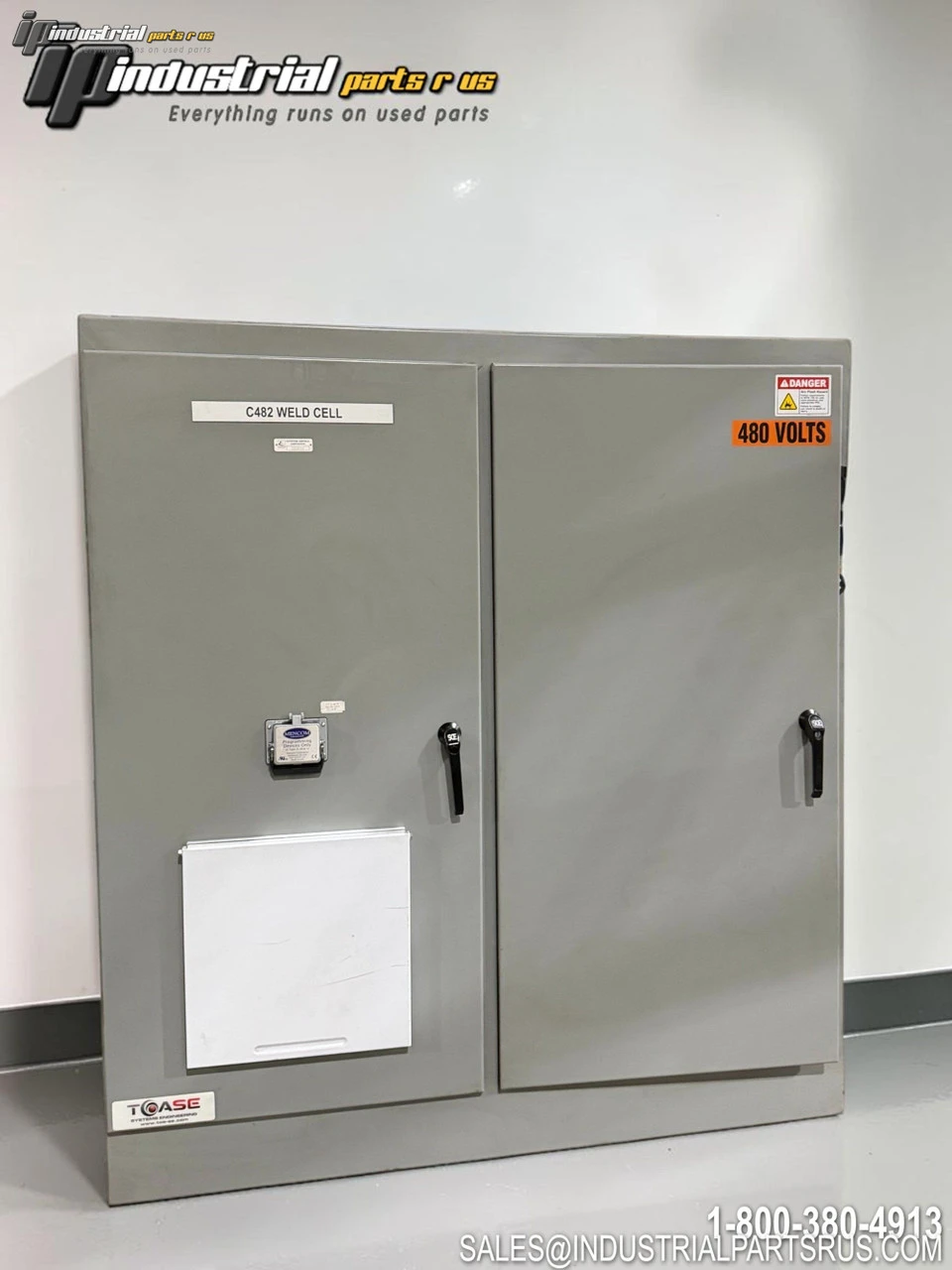

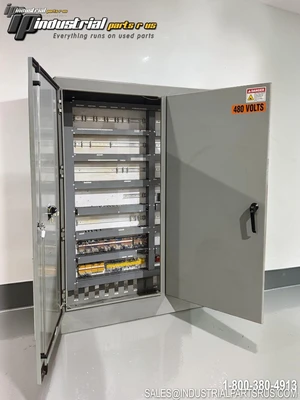

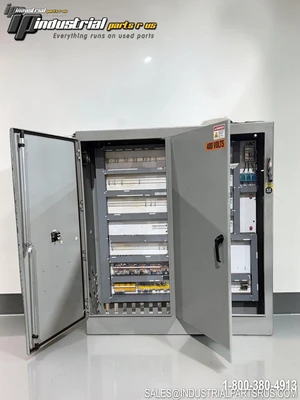

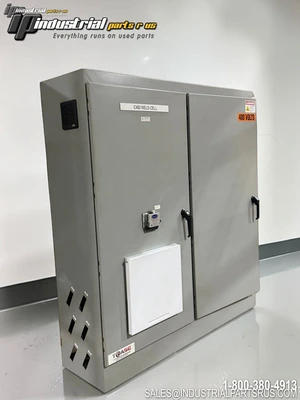

USED SCE SCE-72XM6618

The Saginaw Control & Engineering SCE-72XM6618 is a heavy-duty, two-door XM series freestanding disconnect enclosure constructed from 0.125-inch carbon steel with continuously welded and ground-smooth seams. Designed to house electrical equipment and provide protection from dirt, dust, oil, and water, it accommodates most standard-type disconnects with a right-side flange mount. The enclosure features a 3-point latching mechanism, concealed hinges, heavy-duty lifting eyes, removable centerposts for easy panel installation, and a pour-in-place oil- and water-resistant gasket, with an ANSI-61 gray powder coat finish inside and out and a powder-coated white subpanel included.
Specification
Value
Brand
SCE (Saginaw Control & Engineering)
Model / Part Number
SCE-72XM6618
Product Type
2-Door XM Freestanding Disconnect Enclosure
Nominal Height
72 in
Nominal Width
65.75 in (nominal 66 in)
Nominal Depth
18 in
NEMA Rating
NEMA 3R / 12 / 13
IP Rating
IP55
Material
0.125 in Carbon Steel
Finish / Color
ANSI-61 Gray Powder Coat (inside & out)
Mounting Style
Freestanding
Number of Doors
2
Disconnect Mounting
Right Flange
Latch / Handle
3-Point Latching, Black Zinc Die Cast Coinproof/Padlocking Handle
Hinges
Concealed
Gasket
Pour-in-Place Oil & Water Resistant
Subpanel Included
Yes — SCE-64P64 Bent Powder-Coated White Subpanel
Vented
No
Lifting Eyes
Heavy Duty, Anchored into Reinforced Top
Body Stiffeners
Yes (for extra rigidity)
Estimated Ship Weight
790 lbs
Catalog Page
156
We warranty all items for 30 days from date of purchase.
