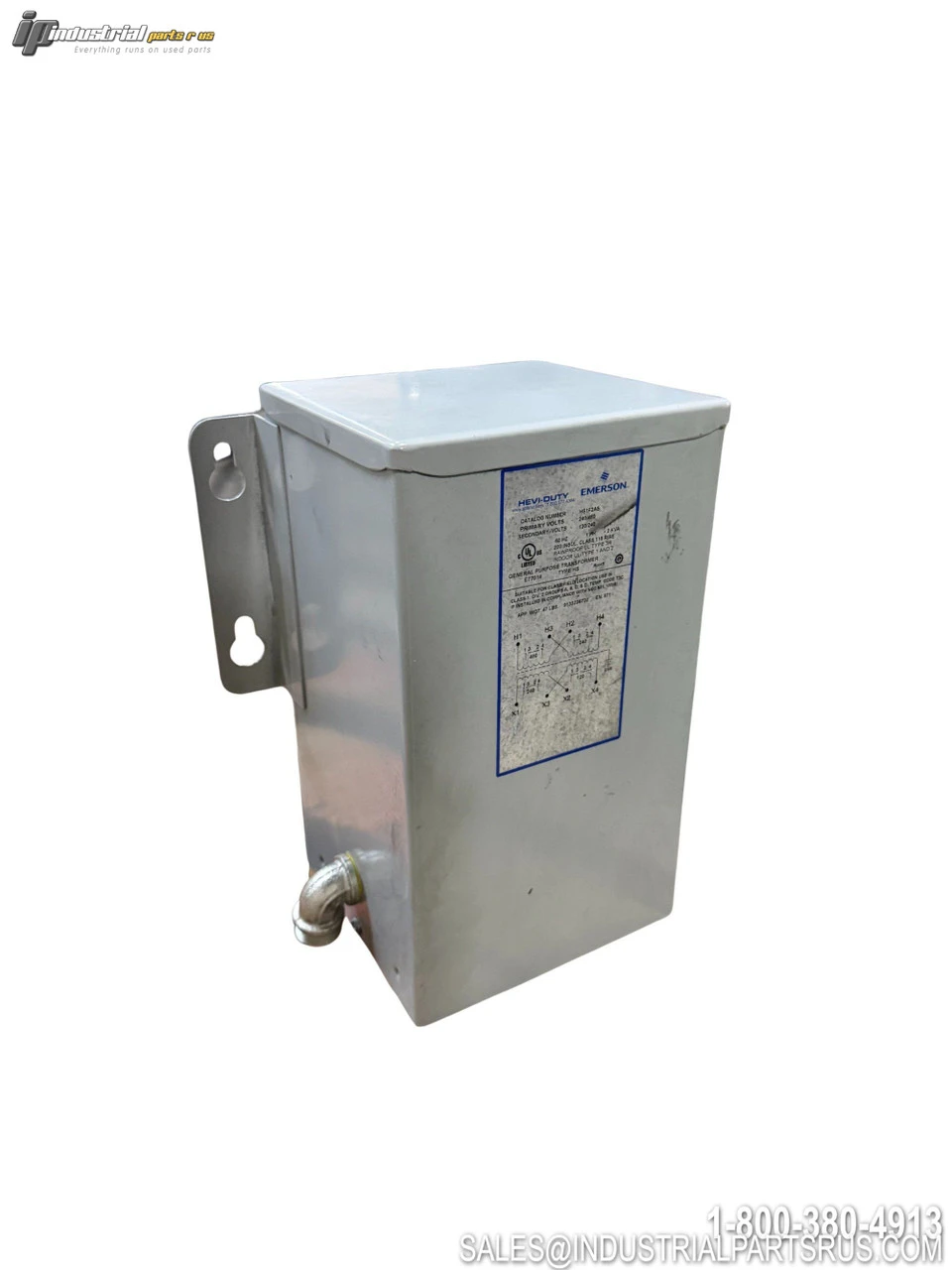

USED HEVI-DUTY HS1F2AS

The Hevi-Duty (SolaHD) HS1F2AS is a 2 kVA single-phase, non-ventilated encapsulated automation transformer designed for use in hazardous locations and harsh industrial environments. It features a rolled steel NEMA 3R enclosure with electrostatic shielding and is encapsulated with electrical grade silica and epoxy for maximum protection against dust, moisture, shock, and vibration. The transformer accepts a 240/480 VAC primary input and provides a 120/240 VAC secondary output, with wire lead connections and wall-mounting hardware included.
Specification
Value
Brand
Hevi-Duty / SolaHD
Model / Part Number
HS1F2AS
Product Type
Non-Ventilated Encapsulated Automation Transformer
Series
HS1
kVA Rating
2 kVA (2000 VA)
Phase
1-Phase
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Primary Current (Full Load)
8.33 A (240V) / 4.17 A (480V)
Secondary Current (Maximum)
16.7 A (120V) / 8.33 A (240V)
Frequency
60 Hz
Insulation Class
200°C (UL Class)
Temperature Rise
115°C
Enclosure Type
NEMA 3R
Housing Material
Rolled Steel
Winding Material
Aluminium
Shielded
Yes (Electrostatic)
Encapsulation
Electrical grade silica and epoxy
Connection Type
Wire Lead (Copper)
Mounting Type
Wall Mount
Dimensions (H x W x D)
13 in x 10 in x 7 in
Hazardous Location Rating
Class I, Division 2, Group A, B, C, D — NEC 501.100(B)
Certifications
UL Listed (cULus), CSA Certified, CE Marked
UL File Numbers
E25872 / E77014
Standards
UL 1561, UL 506, CSA C22.2 No. 47
We warranty all items for 30 days from date of purchase.
