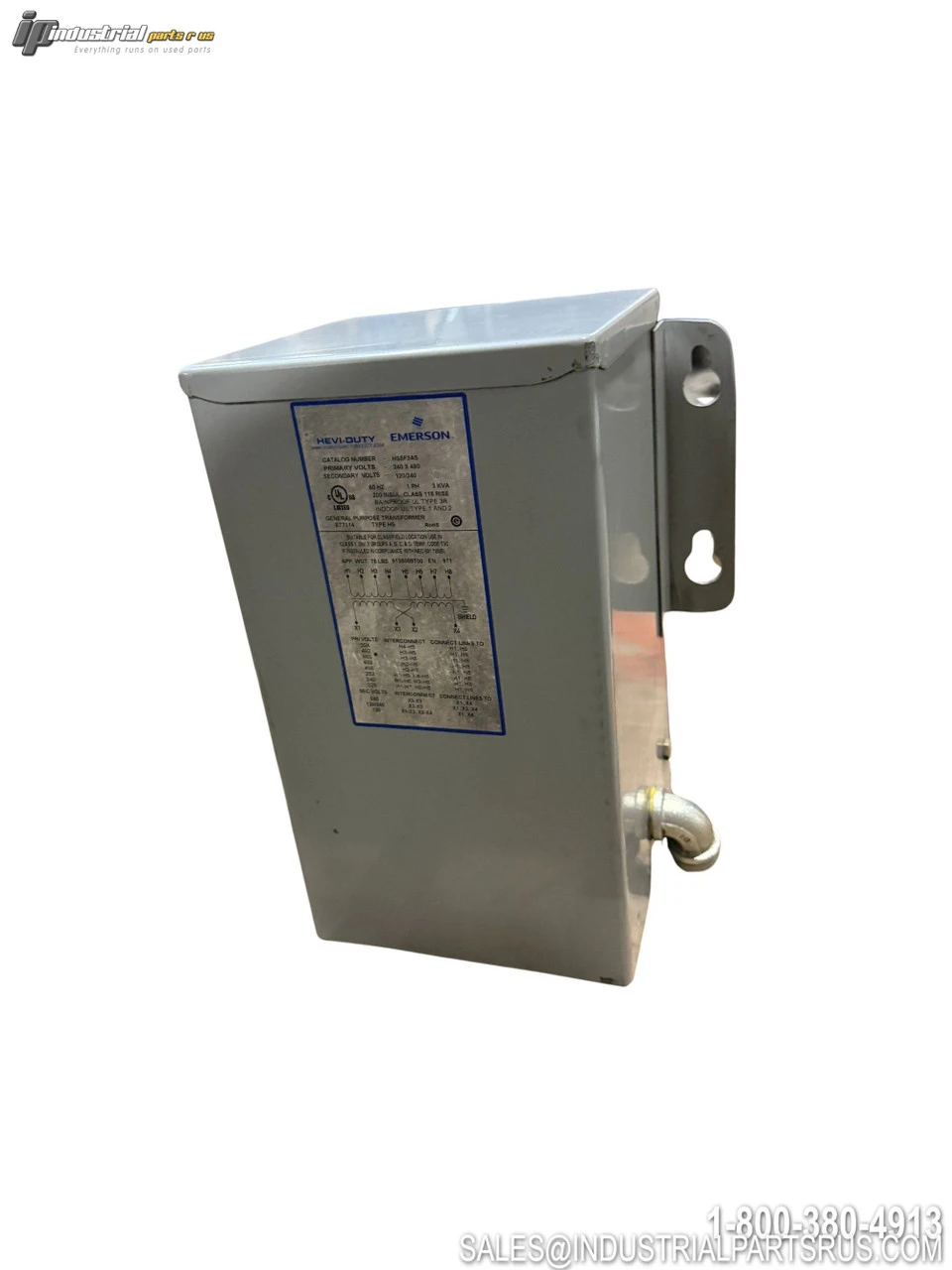

USED HEVI-DUTY HS5F3AS

The Hevi-Duty (SolaHD) HS5F3AS is a 3 kVA single-phase, encapsulated non-ventilated automation transformer designed for use in hazardous locations and harsh industrial environments. It features a 240/480 VAC primary and 120/240 VAC secondary with electrostatic shielding for clean, reliable power delivery. The transformer is housed in a rugged NEMA 3R rolled steel enclosure with aluminum windings and epoxy encapsulation, suitable for both indoor and outdoor wall-mount installations.
Specification
Value
Brand
Hevi-Duty / SolaHD
Model / Part Number
HS5F3AS
Product Type
Encapsulated Non-Ventilated Automation Transformer
Series
HS5
kVA Rating
3 kVA (3000 VA)
Phase
1-Phase
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Frequency
50/60 Hz
Secondary Current (Max)
25 A (120V) / 12.5 A (240V)
Primary Current (Max)
15.6 / 62.5 / 31.3 A
Insulation Class
Class N (UL 200°C)
Temperature Rise
115°C (239°F)
Enclosure Type
NEMA 3R (UL Type 3R)
Mounting Type
Wall Mount
Connection Type
Wire Lead / Conduit Knockout
Housing Material
Rolled Steel
Winding Material
Aluminum
Shielded
Yes (Electrostatically Shielded)
Encapsulation
Electrical Grade Silica and Epoxy
Dimensions (H x W x D)
13 in x 10 in x 7 in
Hazardous Location Rating
Class I, Division 2, Group A-D (NEC 501.100(B))
Certifications
cULus (E25872/E77014), UL 1561, UL 506, CSA C22.2 No. 47, RoHS, ARRA/Buy American Act Compliant
Manufacturer
Emerson / SolaHD (Sola/Hevi-Duty)
We warranty all items for 30 days from date of purchase.
