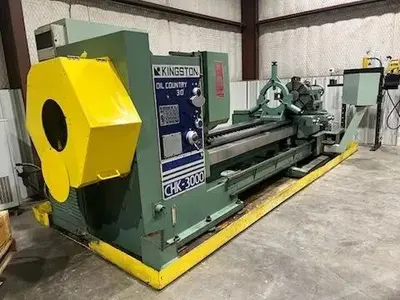

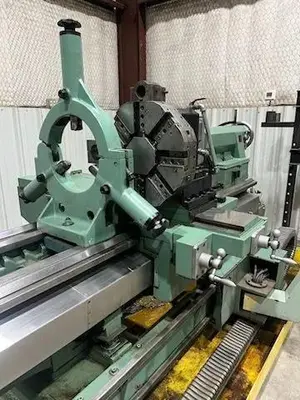

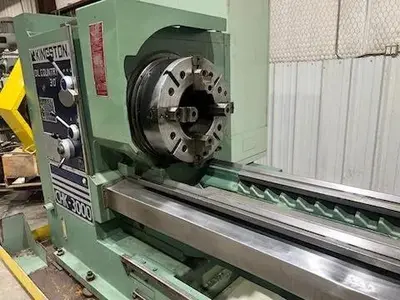

USED 2001 KINGSTON CHK-3000

THE KINGSTON CHK-3000 IS A CNC LATHE EQUIPPED WITH A FANUC OT CNC CONTROL. IT FEATURES A 12.25-INCH SPINDLE BORE AND A 12-INCH BAR CAPACITY. THE MACHINE OFFERS A 30-INCH SWING OVER THE BED AND AN 18.5-INCH SWING OVER THE CROSS SLIDE, WITH A DISTANCE OF 120 INCHES BETWEEN CENTERS. THE SPINDLE IS POWERED BY A 40 HP (30 KW) MOTOR, OPERATING THROUGH A TWO-SPEED GEARBOX PROVIDING SPEED RANGES OF 1-500 RPM AND 1-1000 RPM, WITH AN A2-15 SPINDLE NOSE. ITS MAXIMUM CHUCK SIZE CAPACITY IS 32 INCHES, AND IT IS CONFIGURED WITH 24-INCH FRONT AND REAR CHUCKS. A STEADY REST IS INCLUDED.
