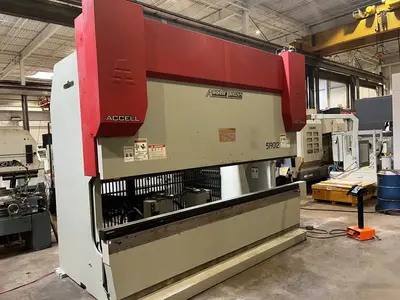

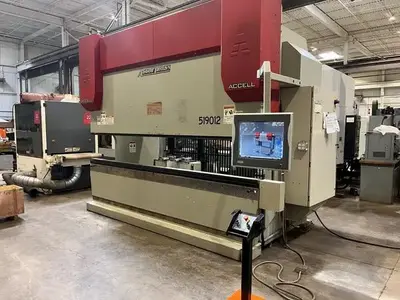

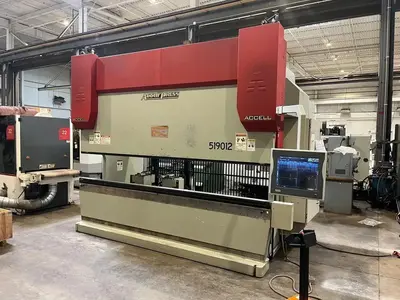

USED 2011 ACCURPRESS 519012

THE ACCURPRESS MODEL 519012 (ACCELL 190-12) IS A CNC HYDRAULIC PRESS BRAKE ENGINEERED FOR PRECISION SHEET METAL FORMING. IT PROVIDES A MAXIMUM BENDING CAPACITY OF 190 TONS OVER AN OVERALL BED LENGTH OF 12 FEET (144 INCHES). THE MACHINE INTEGRATES AN ACCURPRESS ETS 3000 CNC CONTROL SYSTEM, FACILITATING MULTI-AXIS OPERATION INCLUDING Y1 AND Y2 RAM SYNCHRONIZATION, AND A 4-AXIS BACKGAUGE COMMONLY CONFIGURED WITH X AND R AXES. TECHNICAL SPECIFICATIONS INCLUDE A DISTANCE BETWEEN SIDE FRAMES OF 124 INCHES, A STROKE LENGTH OF 8 INCHES, AN OPEN HEIGHT OF 14 INCHES, AND A THROAT DEPTH OF 10 INCHES. POWER IS SUPPLIED BY A 20-HORSEPOWER MAIN MOTOR.
