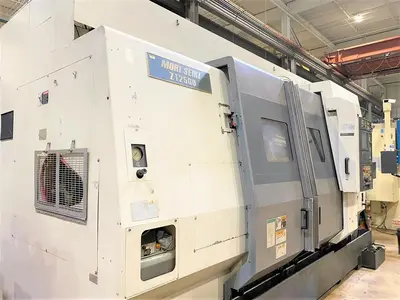

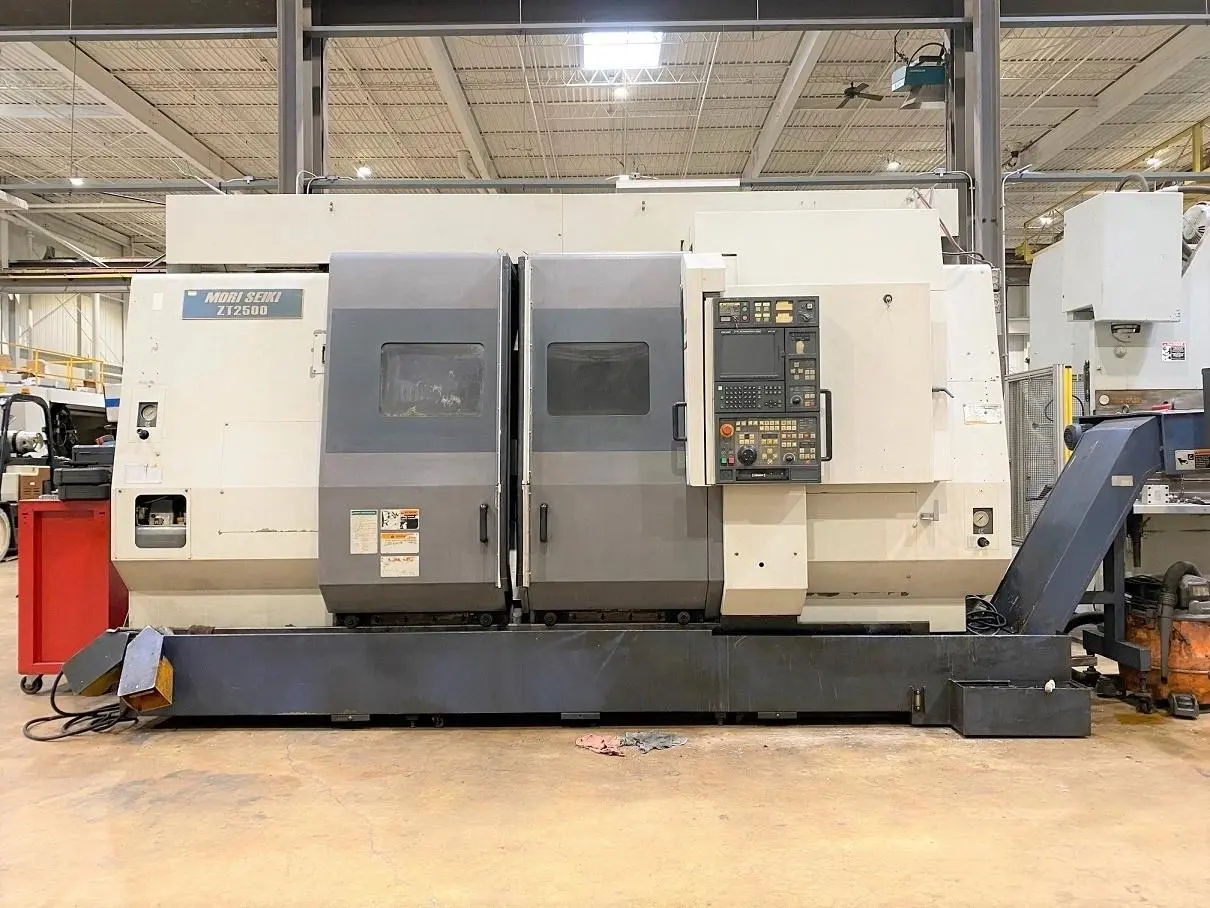

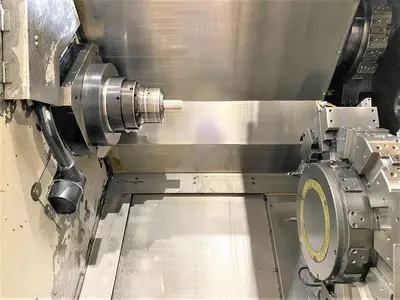

USED MORI SEIKI ZT-2500Y

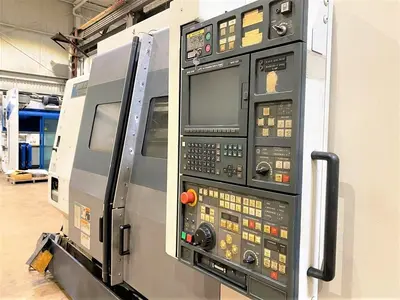

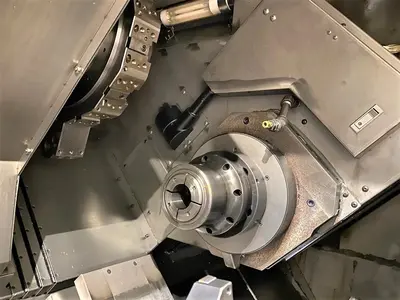

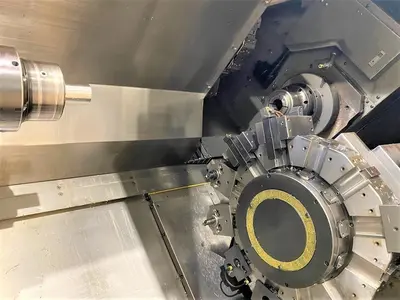

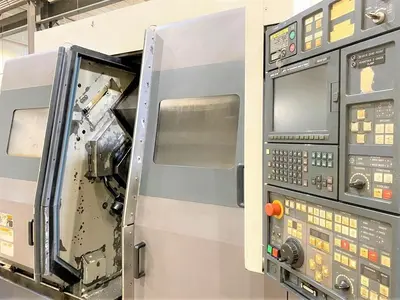

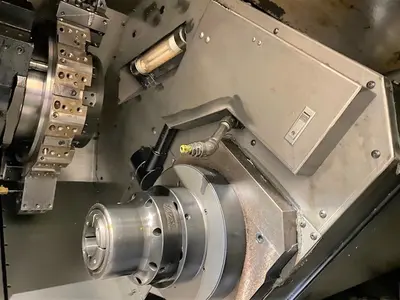

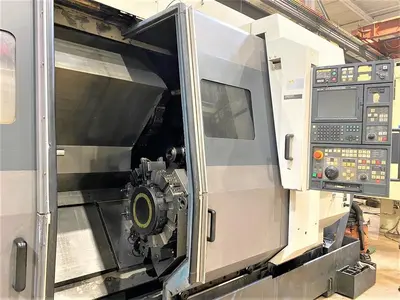

THE MORI SEIKI ZT-2500Y IS AN 8-AXIS CNC TURNING CENTER FEATURING A SUB-SPINDLE AND TWIN TURRETS WITH LIVE TOOL CAPABILITY. IT OFFERS A MAXIMUM TURNING DIAMETER OF 14.9 INCHES AND A MAXIMUM TURNING LENGTH OF 14 INCHES, WITH A 2.8-INCH MAXIMUM BAR CAPACITY. THE MAXIMUM DISTANCE BETWEEN SPINDLES IS 51.2 INCHES. AXIS TRAVELS INCLUDE X1 AT 11 INCHES, X2 (LOWER TURRET) AT 7.9 INCHES, Z1 AT 37.8 INCHES, Z2 (LOWER TURRET) AT 38.8 INCHES, AND Y-AXIS TRAVEL OF +/- 2.9 INCHES. C-AXIS INDEXING RESOLUTION IS 0.001 DEGREES. BOTH MAIN AND SUB-SPINDLES ACHIEVE SPEEDS OF 4,000 RPM, UTILIZING AN A2-8 SPINDLE NOSE AND A 3.5-INCH HOLE THROUGH THE SPINDLE. EACH TURRET IS EQUIPPED WITH 12 TOOL POSITIONS, SUPPORTING LIVE MILLING WITH ROTARY TOOL SPEEDS UP TO 4,000 RPM. RAPID TRAVERSE RATES ARE 945 INCHES PER MINUTE FOR THE X, Z, AND B-AXES, AND 472 INCHES PER MINUTE FOR THE Y-AXIS. THE MACHINE OPERATES WITH A MITSUBISHI MSC 501 CNC CONTROL AND HAS AN APPROXIMATE WEIGHT OF 29,000 LBS. STANDARD FEATURES INCLUDE A TOOL PRESETTER AND CHIP CONVEYOR.
