USED AJAX ATLAS A200

🏭 Manufacturer Information

Manufacturer: AJAX Boiler Inc.

Model: Atlas A200

Series: A200 Series

Manufactured in: Santa Ana, California

Reputation: Known for high-efficiency commercial and industrial boilers for hydronic heating systems

📄 Product Description

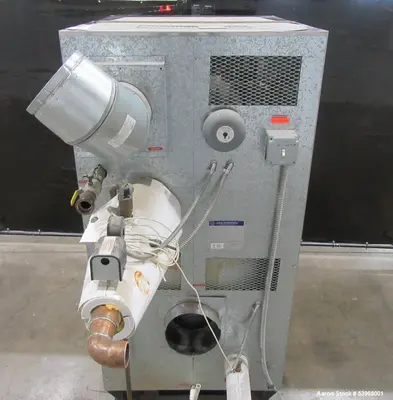

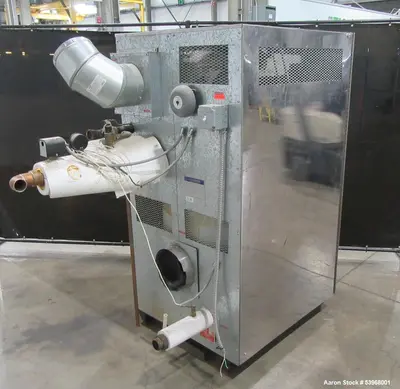

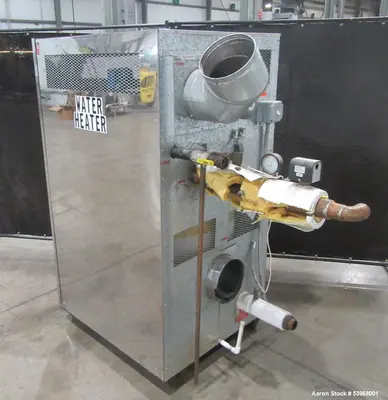

This used AJAX Atlas A200 Series Boiler is a high-performance, natural gas-fired heating unit designed for industrial and commercial applications. With an input of 2,000,000 BTU/hr and an output of 1,800,000 BTU/hr, the unit delivers a strong 90% thermal efficiency, making it an ideal option for high-demand heating operations.

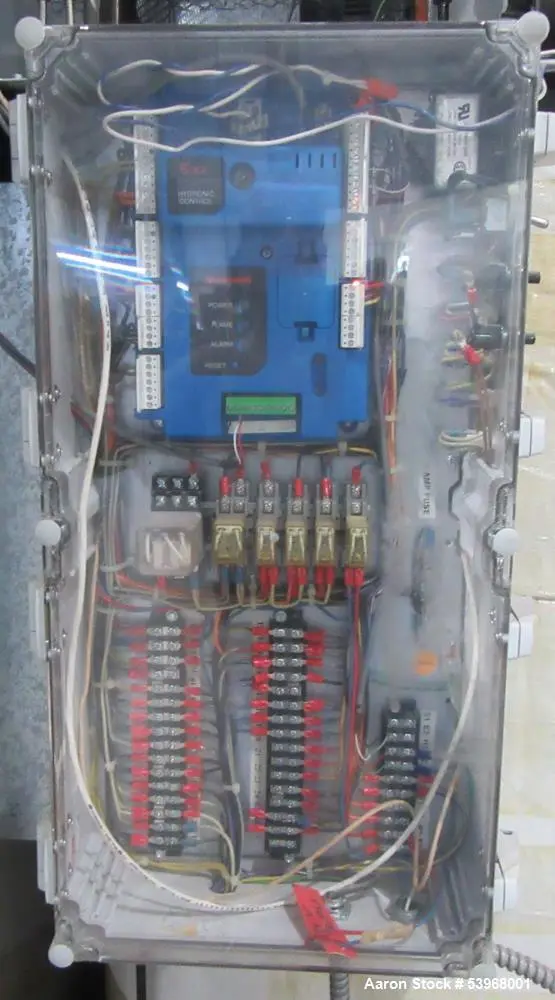

Built with a 50 HP capacity and a heating surface of 42.4 sq. ft., the boiler is pressure rated to a maximum allowable working pressure (MAWP) of 160 PSIG. This model features a burner output of 1,307,692 BTU/hr and operates on 120V, single-phase power with 5A full load current and 24V control voltage. The boiler is not suitable for combustible flooring installation and requires clearances of 36" top, 18" rear, 6" sides, and 18" at the flue for safe operation.
This boiler is an excellent fit for facilities requiring efficient, consistent, and powerful hydronic heating performance.

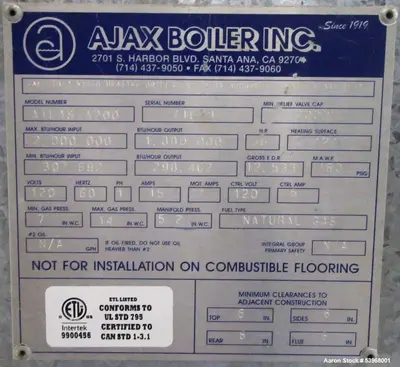

⚙️ Specifications

Model: Atlas A200

Series: A200

Input Capacity: 2,000,000 BTU/hr

Output Capacity: 1,800,000 BTU/hr

Thermal Efficiency: 90%

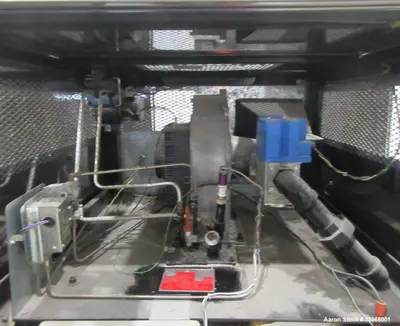

Burner Output: 1,307,692 BTU/hr

Boiler Horsepower: 50 HP

Heating Surface: 42.4 sq. ft.

Gross Input Pressure: 4.0" W.C.

Maximum Working Pressure (MAWP): 160 PSIG

Fuel Type: Natural Gas

Voltage: 120V, 60 Hz, 1 Phase

Full Load Amps: 5A

Control Voltage: 24V

Installation Notes: Not for installation on combustible flooring

Condition: Used

🧰 Applications
Ideal for high-efficiency heating in:

Industrial boiler rooms

Manufacturing facilities

Hospitals and healthcare centers

Schools and universities

Commercial office buildings

Greenhouses and indoor grow facilities

Central utility heating systems

Food and beverage production facilities

📦 Products It Would Be Used For

Hydronic heating systems

Industrial process heating

Steam generation (with ancillary systems)

Building heating loops

Hot water supply for processing

Large-scale commercial HVAC integration

Temperature control for fermentation, drying, or sterilization
