USED CHEMINEER 3HTA20

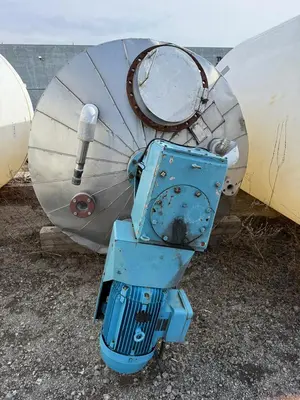

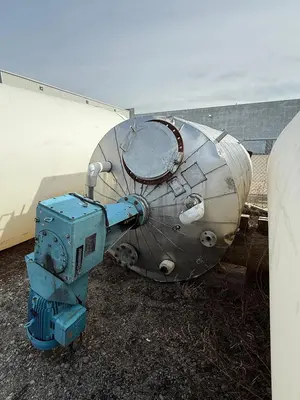

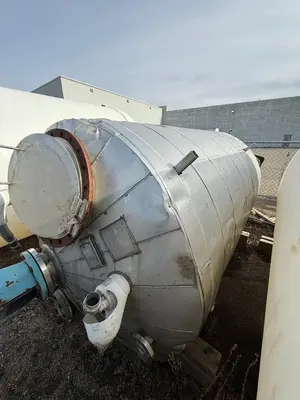

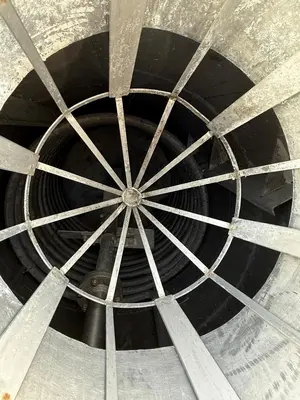

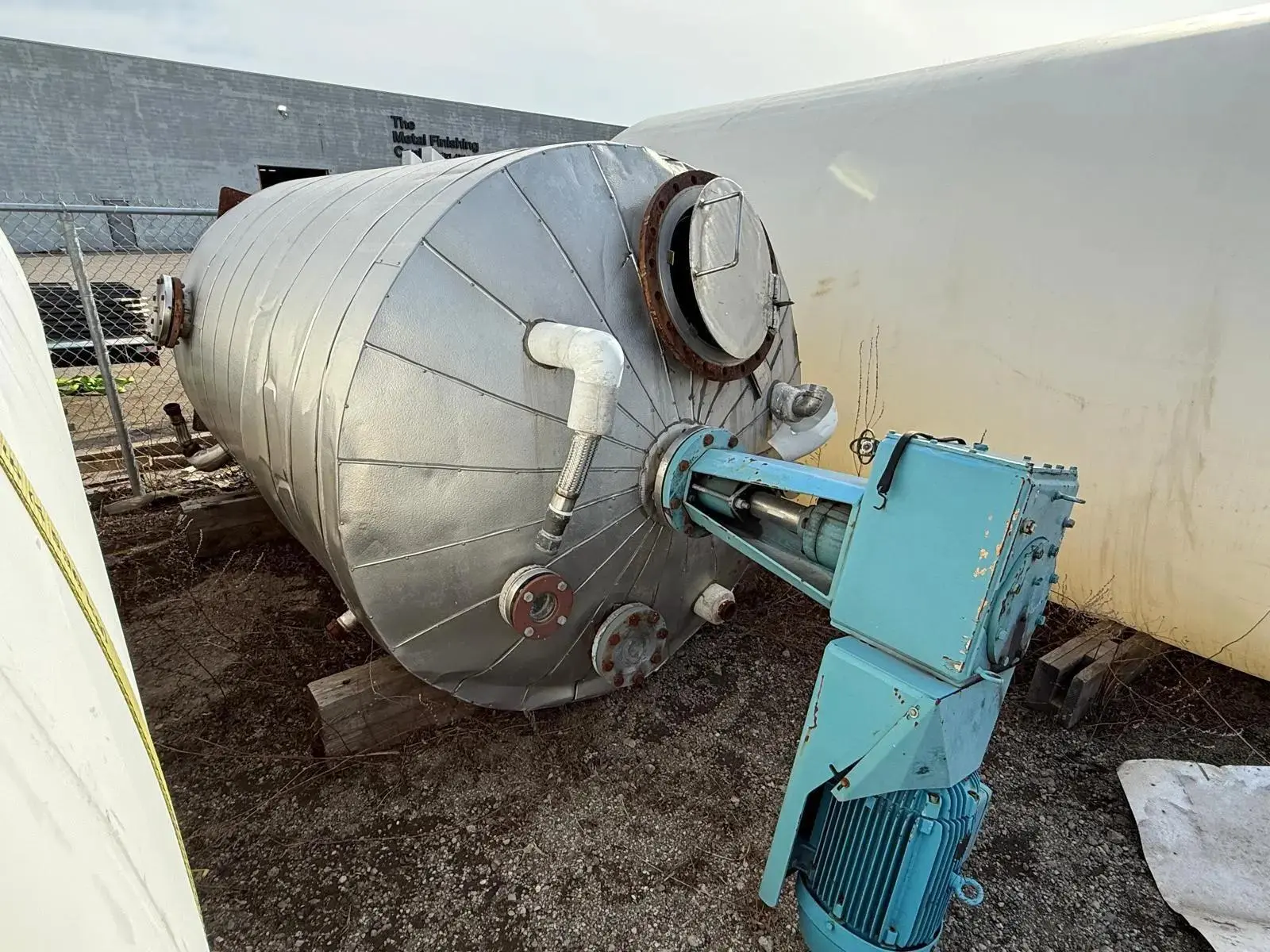

THIS CHEMINEER 3HTA20 JACKETED STAINLESS STEEL REACTOR FEATURES A WORKING CAPACITY OF 2,600 GALLONS. THE VERTICAL VESSEL IS CONSTRUCTED WITH A DOUBLE-WALL JACKET AND ALUMINUM CLADDING INSULATION, MOUNTED ON A SKID BASE. THE AGITATION SYSTEM IS POWERED BY A 20 HP WEG MOTOR OPERATING AT 575V, 3 PH, AND 60 HZ WITH A MOTOR SPEED OF 1755-1800 RPM AND AN OUTPUT SPEED OF 155 RPM. THE MOTOR IS TEFC EXPLOSION-PROOF AND RATED FOR CLASS I, ZONE 1 HAZARDOUS LOCATIONS. INTERNAL FEATURES INCLUDE A HELICAL HEATING COIL, A CENTRAL AGITATOR SHAFT WITH IMPELLER, AND STRUCTURAL BAFFLES. THE UNIT UTILIZES A TOP-ENTRY DRIVE WITH A MECHANICAL SEAL. TECHNICAL SPECIFICATIONS INCLUDE OVERALL DIMENSIONS OF 80 X 80 X 120 INCHES AND A WEIGHT OF 5,000 KGS.
