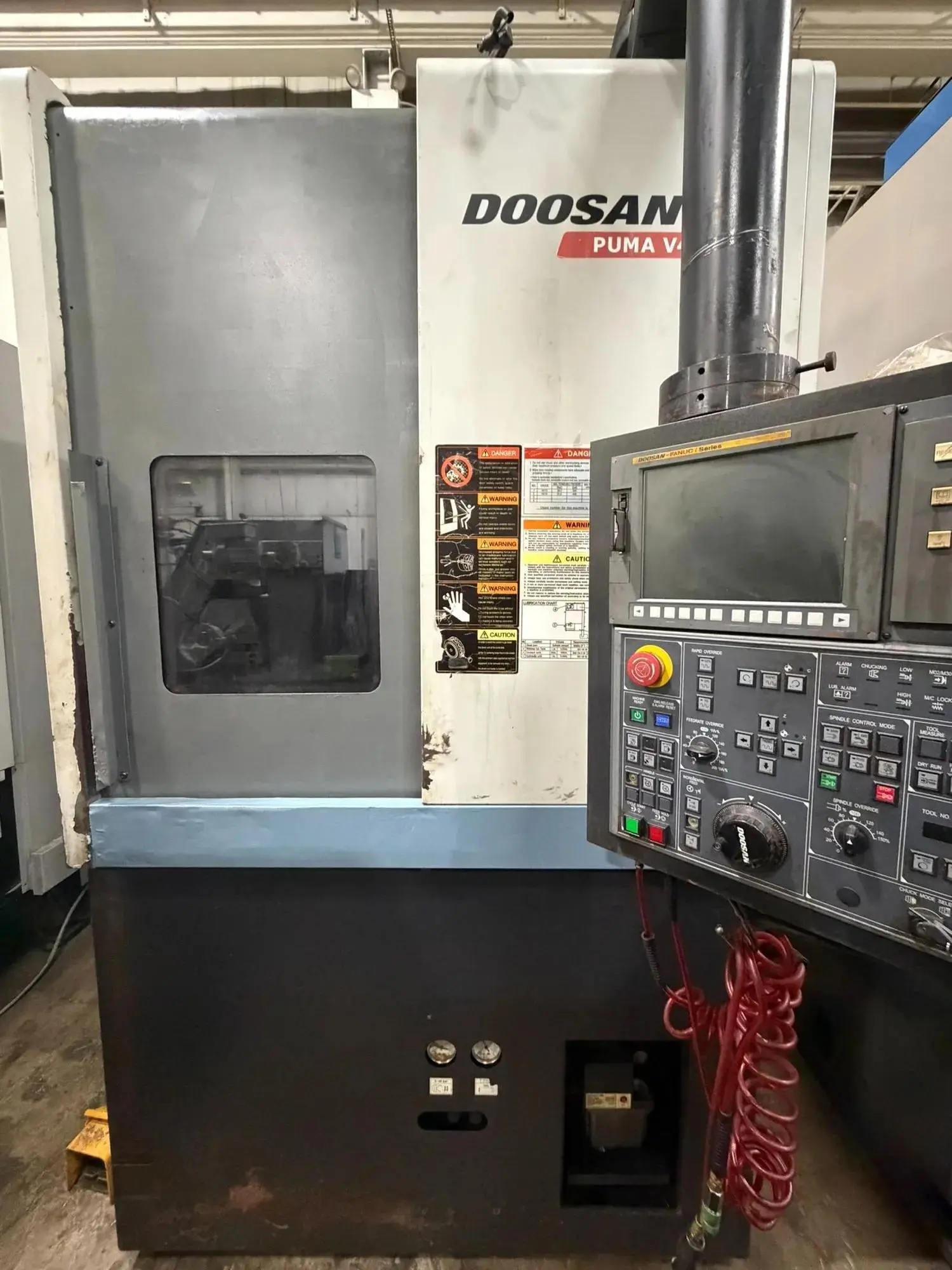

USED 2012 DOOSAN PUMA V400M

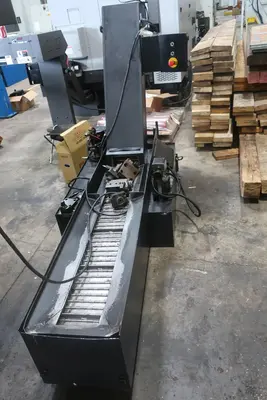

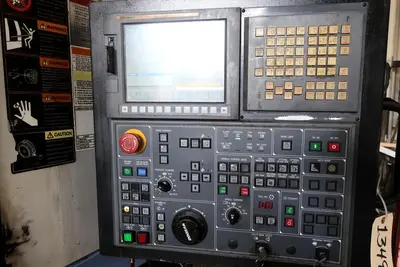

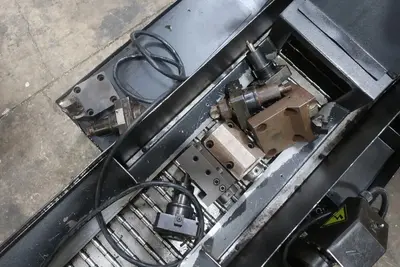

THE DOOSAN PUMA V400M IS A 3-AXIS CNC VERTICAL LATHE EQUIPPED WITH LIVE TOOLING AND FANUC I SERIES CNC CONTROL. IT FEATURES AN 18″ CHUCK WITH A MAX TURNING DIAMETER OF 496 MM AND A MAX TURNING LENGTH OF 461 MM. THE MACHINE IS CONFIGURED WITH A SINGLE TURRET WITH 12 TOOL STATIONS AND INCLUDES 5 TOOL HOLDERS. THE SPINDLE PROVIDES A MAX SPEED OF 3000 RPM, 22 KW POWER, AND 731 N·M TORQUE. THE MACHINE OFFERS X-AXIS TRAVEL OF 10.55″ AND Z-AXIS TRAVEL OF 19.21″, WITH RAPID TRAVERSE RATES OF 20 M/MIN ON BOTH X AND Z AXES. THE LIVE TOOLING SYSTEM OPERATES AT UP TO 4000 RPM. ADDITIONAL FEATURES INCLUDE A COOLANT SYSTEM AND CHIP CONVEYOR.
