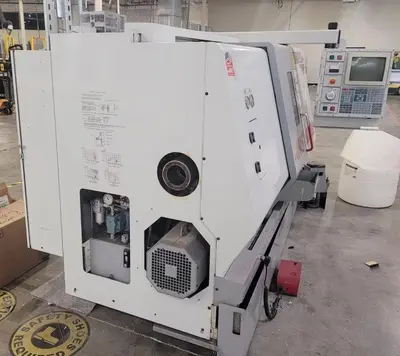

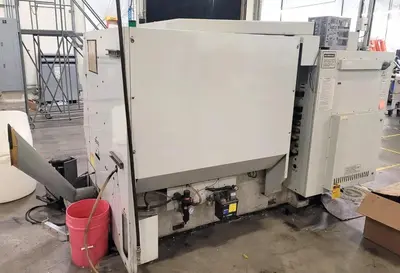

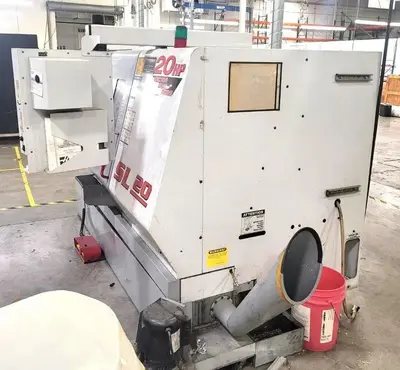

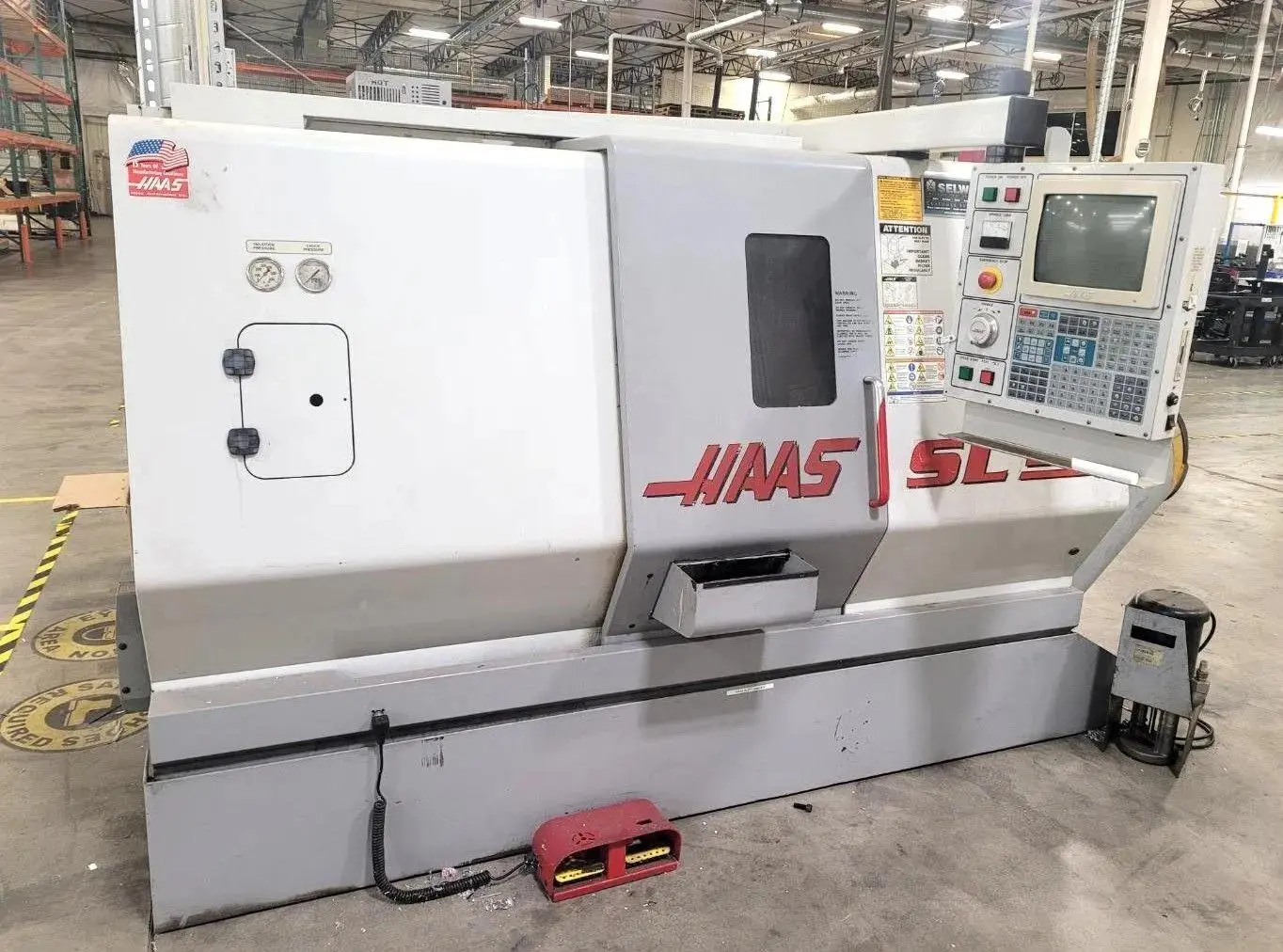

USED 1999 HAAS SL-20T

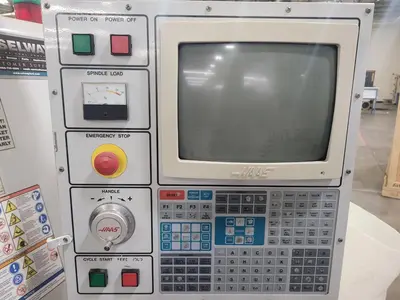

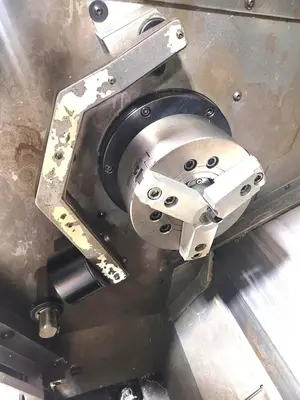

THE HAAS SL-20T IS A CNC 2-AXIS LATHE MANUFACTURED IN 1999, FEATURING A HAAS CNC CONTROL SYSTEM AND AN 8-INCH 3-JAW CHUCK. THIS MACHINE PROVIDES A MAXIMUM TURNING DIAMETER OF 10.3 INCHES AND A MAXIMUM TURNING LENGTH OF 20 INCHES, WITH A MAXIMUM SWING OF 23 INCHES OVER THE BED AND 9.5 INCHES OVER THE SADDLE. THE SPINDLE IS POWERED BY A 20 HP VECTOR DRIVE, REACHING SPEEDS UP TO 4,000 RPM, AND IS EQUIPPED WITH AN A2-6 SPINDLE NOSE. IT FEATURES A 3.0-INCH HOLE THROUGH THE SPINDLE AND A 2.06-INCH HOLE THROUGH THE DRAW TUBE.

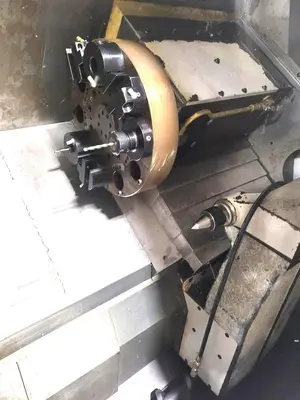

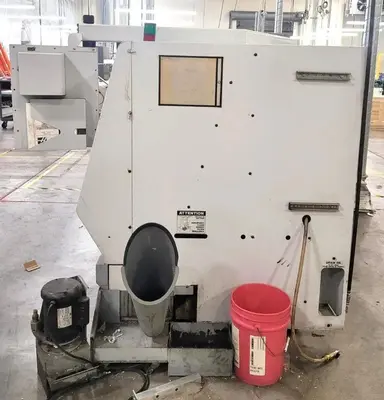

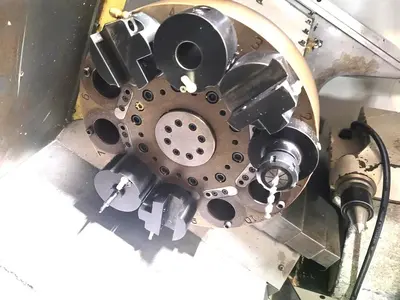

THE LATHE INCLUDES A 10-STATION TURRET WITH A 1-SECOND INDEX TIME PER STATION. TURRET TRAVELS ARE 8.45 INCHES ON THE X-AXIS AND 20 INCHES ON THE Z-AXIS, WITH RAPID TRAVERSE RATES OF 710 IPM FOR BOTH AXES. ADDITIONAL EQUIPMENT INCLUDES A TAILSTOCK WITH 20 INCHES OF TRAVEL AND A #4 MORSE TAPER QUILL, A TOOL SETTER, AND A CHIP CONVEYOR.
