USED INVEMA FR40-1500

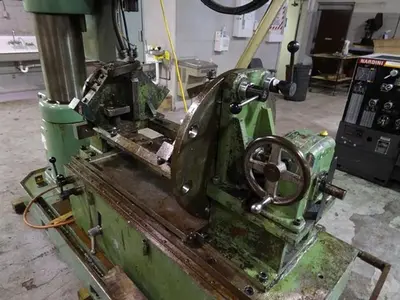

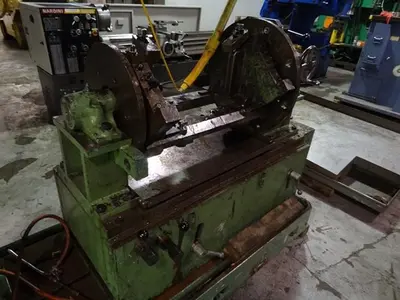

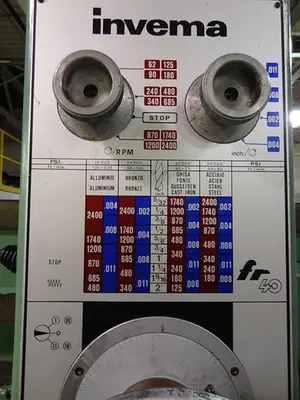

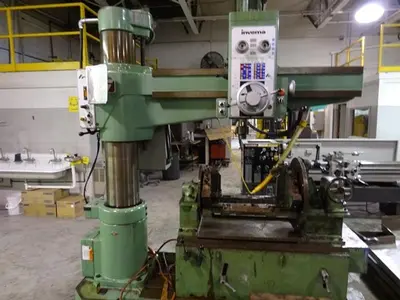

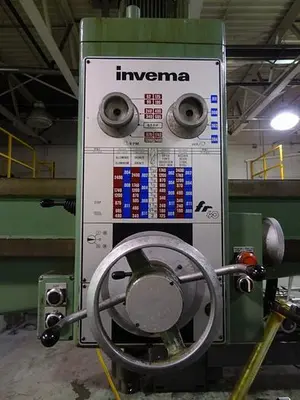

THE INVEMA FR40-1500 IS A RADIAL DRILLING MACHINE FEATURING A 1500 MM THROAT DEPTH AND A DRILLING CAPACITY OF 40 MM TO 45 MM IN STEEL. THE MACHINE IS EQUIPPED WITH A COLUMN DIAMETER OF 250 MM AND PROVIDES A MAXIMUM DRILLING RADIUS OF 1640 MM, WITH A MINIMUM RADIUS OF 425 MM. ITS SPINDLE OFFERS 12 SPEEDS RANGING FROM 62 TO 2400 RPM AND FOUR SPINDLE FEEDS OF .002, .004, .008, AND .011 IPR. THE SPINDLE CONNECTION UTILIZES AN MK4 OR MT4 TAPER WITH A QUILL STROKE OF 280 MM. PHYSICAL ADJUSTMENTS INCLUDE A HORIZONTAL HEAD TRAVEL OF 1215 MM AND A VERTICAL HEAD TRAVEL OF 1125 MM. THE UNIT FEATURES POWER ELEVATION AND POWER CLAMPING OF THE ARM. FOR WORKHOLDING, IT INCLUDES A TABLE SET UP WITH A REMOVABLE SPECIAL ENGINE BLOCK HOLDING FIXTURE. THE TOTAL MACHINE WEIGHT IS APPROXIMATELY 2500 KG. NO YEAR OF MANUFACTURE IS AVAILABLE.
